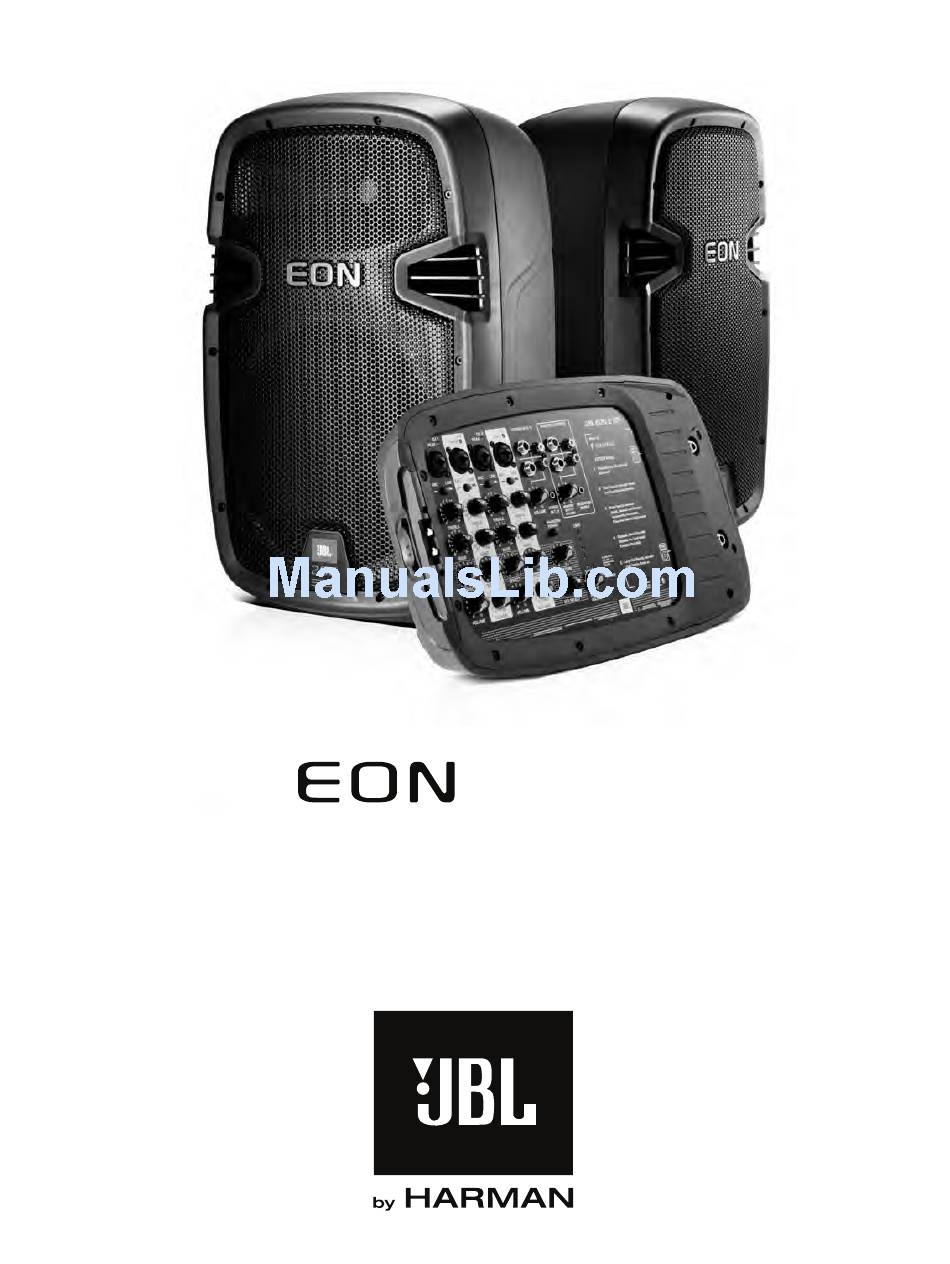

- Page 1 210P PORTABLE PA USER’S GUIDE For: Français, Deutsch, Español, visit www.jblpro.com...
-
Page 3: Table Of Contents
Contents Section 1: Important Safety Instructions ......4 - 5 Section 2: Precautions ............Section 3: Declaration of Conformity ........Section 4: The EON 210P PA System Power Amplifier ..Section 5: Introduction To The EON 210P PA System 9 - 16 Section 6: System Specifications ........ -
Page 4: Section 1: Important Safety Instructions
Section 1: Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 5 Care and Cleaning EON 210P systems may be cleaned with a dry cloth. Do not get moisture into any of the openings in the system. Ensure that the system is unplugged from the AC outlet before cleaning. THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE OR AC INPUT COVERS.
-
Page 6: Section 2: Precautions
Section 2: Precautions The EON 210P PA system covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. -
Page 7: Section 3: Declaration Of Conformity
Section 3: EON 210P PA System Declaration of Conformity This equipment complies with the EMC directive 89/336/EEC Modified by 92/31/EEC 93/68/EEC 98/13/EEC and LVD 73/23/EEC modified by 93/68/EEC This product is approved to safety standards: EN60065:2002 UL6500 7th Edition: 2003 UL 60065 - STANDARD FOR AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS - SAFETY EQUIREMENTS - Edition 7 - Revision Date 2007/12/11 CSA C22.2 NO 60065-03 - AUDIO, VIDEO AND SIMILAR ELECTRONIC... -
Page 8: Section 4: The Eon 210P Pa System Power Amplifier
Section 4: The EON 210P PA System Power Amplifier AC Power Requirements Class D power amplifier and loudspeaker specific DSP electronics The EON 210P is equipped with a Crown ® and requires appropriate AC power. Before plugging the Mixer Module into an outlet ensure that it is able to provide appropriate AC power. -
Page 9: Section 5: Introduction To The Eon 210P Pa System
Section 5: Introduction To The EON 210P PA System Thank you for choosing the JBL EON 210P PA system. The EON 210P is a self-contained, portable pa system featuring multiple input channels with individual tone controls, multiple digital effects and convenient output routing capabilities that allow the user to integrate the system into any number of audio environments. - Page 10 4. Connect the Mixer Module to the Speakers On the right side of the mixer you will notice two ¼" phone jacks – these are your speaker output jacks. Take the speaker cables and connect them from these jacks to the jacks on the back of the speakers. Left speaker output jack To Left speaker...
- Page 11 Getting Acquainted with the EON 210P Powered Mixer This part of the EON 210P system houses the mixing board and power amplifier. You will connect all of the microphones, musical instruments, external sound sources (like MP3 or CD players), headphones in addition to any recording devices or additional speakers like a personal monitor, subwoofer or “Front of House”...
- Page 12 PEAK indicator shows you that the input is either present (green) or is overloaded (red) Combination 1/4" phone plug and XLR male input EFFECT MENU MIC/LINE “SELECTOR” allows you to select between a microphone (XLR) input and a line (1/4" phone) input 1 Effect Bypass: This turns all effects off Treble control adjusts the amount of high frequencies...
- Page 13 STEREO OUTPUTS: We’ve brought signals into the mixer now let’s send them somewhere…The EON 210P has 3 stereo pairs of outputs: 1. LEFT/RIGHT speaker outputs - These outputs should only be connected to the EON 210P speakers and under no condition EFFECT MENU should they be connected to the input of another electronic device.
- Page 14 DIGITAL EFFECTS Your EON 210P is equipped with digital multi-effects designed to enhance instruments or vocals. There are four effects available on the EON 210P. An effect on a vocal or instrument can create a very natural sense of space for the listener and is great fun for the performer.
- Page 15 effe 2 Plate 6. CONNECTING A MICROPHONE: a. Turn the “MASTER VOLUME” to “0”. b. Connect the microphone to the microphone cable and insert the male end into 3 Room channel 1 of the EON 210P mixer. c. Depress the MIC/LINE switch – this increases the sensitivity of the input and is set for use with a dynamic microphone.
- Page 16 We’re committed to a healthier planet and healthier life for every living thing. JBL is proud that the EON 210P has been certified “Green Edge” compliant by Harman Professional. Great care has been taken to engineer this product for lightweight, highly optimized power consumption and superior...
-
Page 17: Section 6: System Specifications
On Board DSP Limiting and Tuning 1 x JBL 328 H 250 mm (10 in) woofer Speaker LF Driver: 1 x JBL 2414H-1 37.5 mm (1.5" ) annular polymer diaphragm, HF Driver: neodymium compression driver Coverage Pattern: 100º x 60º nominal... -
Page 18: Section 7: Reference
Section 7: Reference Balanced vs. Unbalanced Lines Your EON 210P PA system can accept either type of input. There are two basic types of audio system interconnections for audio signals: Balanced and Unbalanced. Balanced Lines In audio, a balanced line is a three-conductor system in which the two signal wires carry an equal, but opposite voltage with respect to the ground wire. -
Page 19: Section 8: Cables And Connectors
Section 8: Cables and Connectors The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably. -
Page 20: Section 9: Trouble Shooting
Section 9: Trouble Shooting Symptom Likely Cause What to do Make sure that the AC cord is properly seated into the AC receptacle both at the wall outlet and on the mixer. Make sure the AC switch is in No Power the "ON"... - Page 21 Symptom Likely Cause What to do Disconnect the devices that are connected to your mixer one at a Noisy source device time. If the noise goes away, the problem is with the source or the connecting cable. Noise or hiss heard at outputs Unused channel volumes Lower the channel volume on unused channels to “0”...
-
Page 22: Section 10: Contact Information
On The World Wide Web: www.jblpro.com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com Product Registration: Register your product online at www.jblpro.com... -
Page 23: Section 11: Warranty Information
Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818-893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. - Page 24 Part Number: 445709-001 11-202010...
