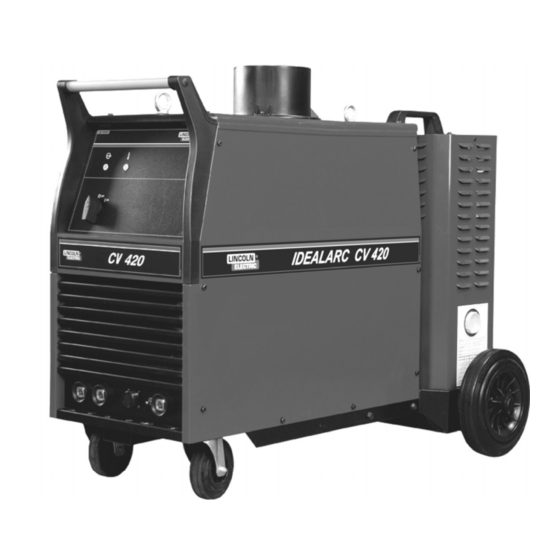

Lincoln Electric IDEALARC CV 420 Operator's Manual

Hide thumbs Also See for IDEALARC CV 420:

Advertisement

Table of Contents

See also: Operator's Manual
IM3007
05/2008
Rev. 7
IDEALARC CV 420 & CV 505
OPERATOR'S MANUAL
MANUALE OPERATIVO
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
BRUKSANVISNING OG DELELISTE
GEBRUIKSAANWIJZING
BRUKSANVISNING
INSTRUKCJA OBSŁUGI
KÄYTTÖOHJE
LINCOLN ELECTRIC BESTER S.A.
ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland
www.lincolnelectric.eu

Advertisement

Table of Contents
loading

Related Manuals for Lincoln Electric IDEALARC CV 420

Summary of Contents for Lincoln Electric IDEALARC CV 420

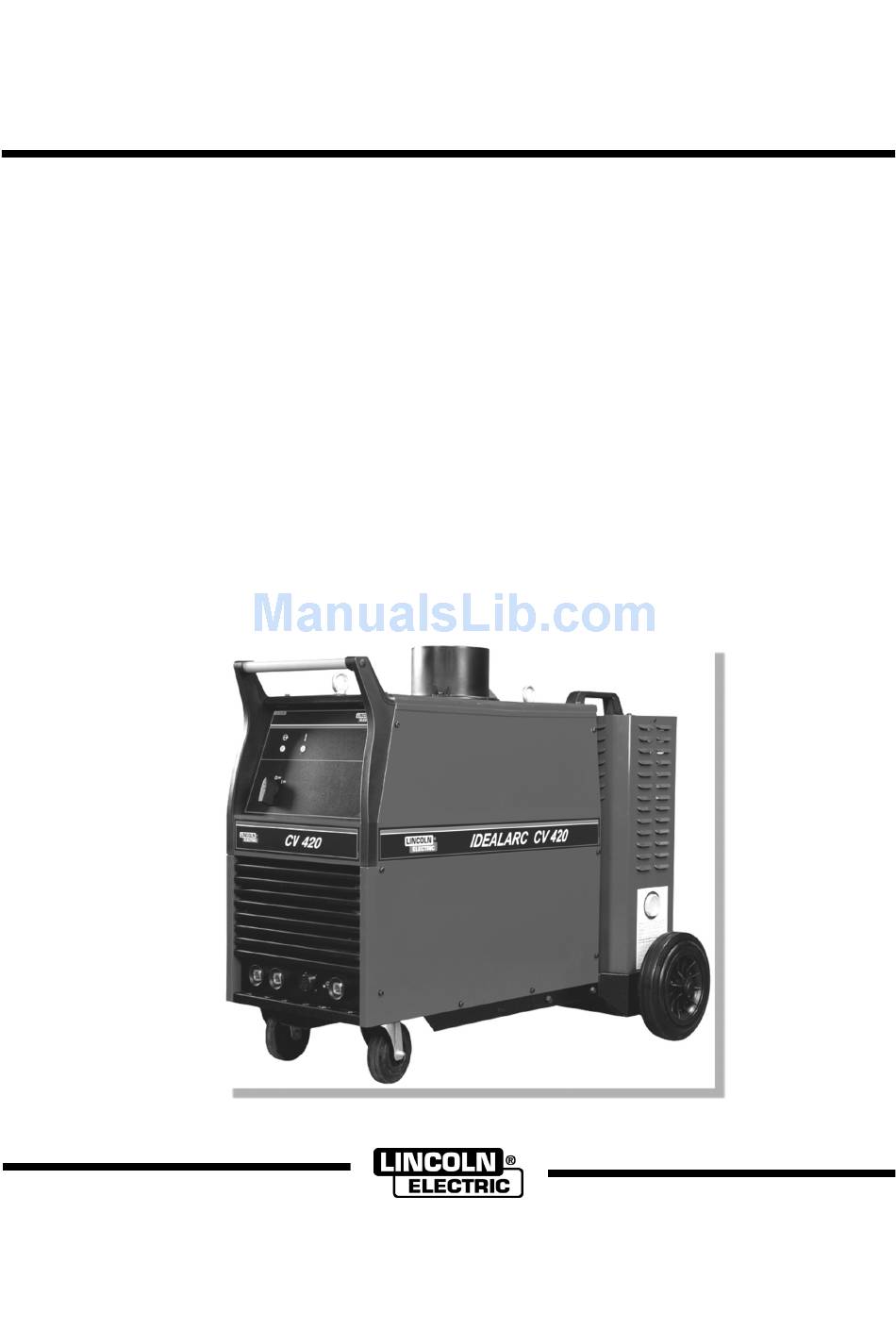

  • Page 1 IM3007 05/2008 Rev. 7 IDEALARC CV 420 & CV 505 OPERATOR’S MANUAL MANUALE OPERATIVO BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION BRUKSANVISNING OG DELELISTE GEBRUIKSAANWIJZING BRUKSANVISNING INSTRUKCJA OBSŁUGI KÄYTTÖOHJE LINCOLN ELECTRIC BESTER S.A. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
  • Page 2 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1, EN 60974-10 (2005) Paweł Lipiński Operations Director LINCOLN ELECTRIC BESTER S.A., ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland 12/05...
  • Page 3 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1, EN 60974-10 (2005) Paweł Lipiński Operations Director LINCOLN ELECTRIC BESTER S.A., ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland 12/05...
  • Page 4 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility.
  • Page 5 Per ogni futuro riferimento, compilare la tabella sottostante con le informazioni di identificazione equipaggiamento. Modello, Codice (Code) e Matricola (Serial Number) sono reperibili sulla targa dati della macchina. VIELEN DANK! Dass Sie sich für ein QUALITÄTSPRODUKT von Lincoln Electric entschieden haben. •...
  • Page 6 Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.

  • Page 7: Installation And Operator Instructions

    CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed.

  • Page 8: Machine And Circuit Protection

    Power Switch ON/OFF (O/I): It controls the machine power input. Be sure the power source is connected to the mains supply before turning power on ("I"). Power Indicator Light: It indicates that the power is Thermal Indicator Light: It indicates that the machine is overloaded or that the cooling is not sufficient.

  • Page 9: Maintenance

    Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances.

  • Page 10: Technical Specifications

    • Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special applications. Technical Specifications IDEALARC CV 420 & CV 505 INPUT Input Voltage Input Power at Rated Output Frequency 230 / 400V ±...
