KitchenAid KSSS36QJB00 Parts List

KitchenAid KSSS36QJB00 Parts List

White black biscuit 36" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00
(White)
(Black)
(Biscuit)
Part No. 4398881
9−00 Litho In U.S.A. (mek)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36QJB00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS36QJB00

Summary of Contents for KitchenAid KSSS36QJB00

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) Part No. 4398881 9−00 Litho In U.S.A. (mek)

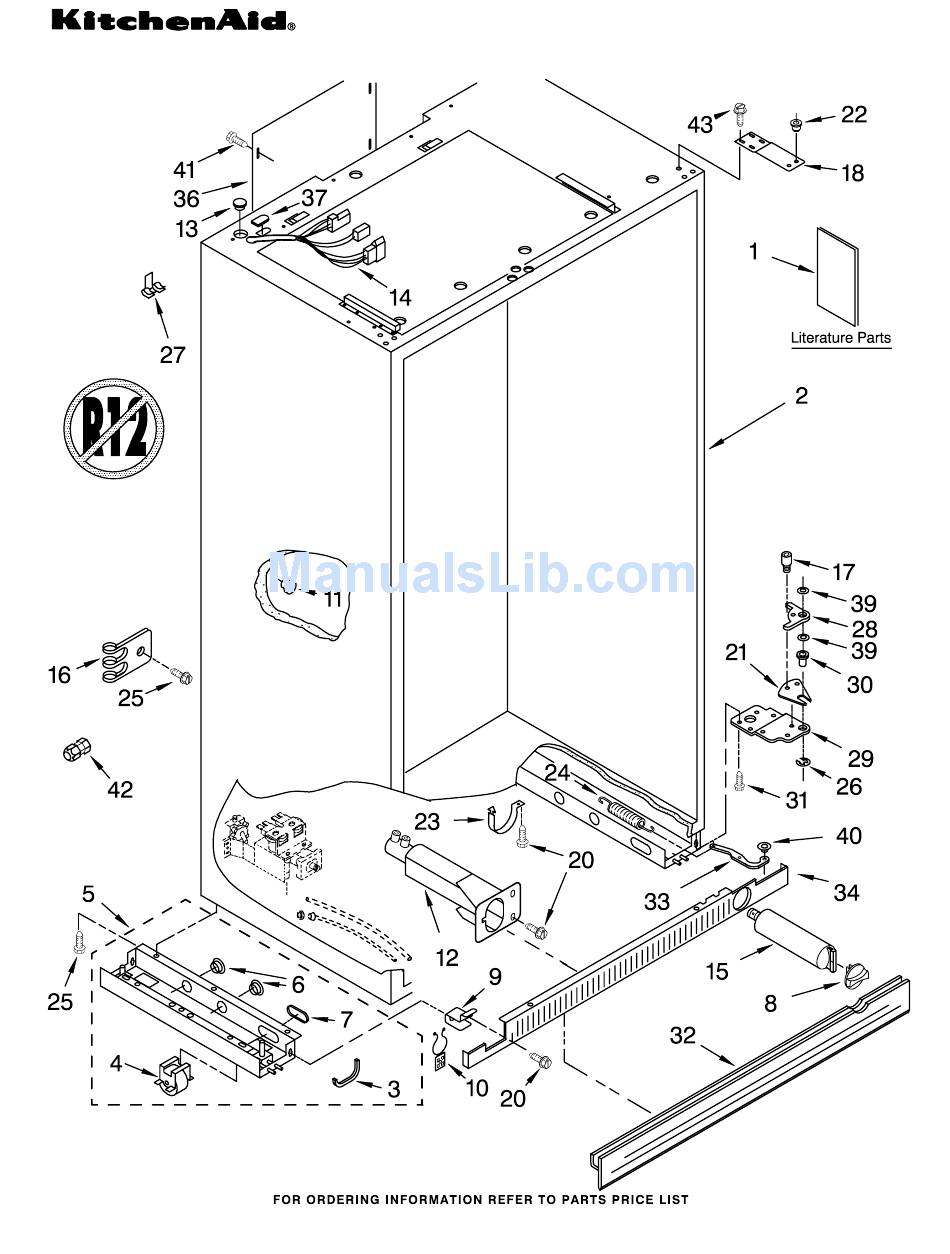

  • Page 2: Cabinet Parts

    For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION LITERATURE PARTS LIT2209249 Use & Care Guide LIT2209466 Energy Label LIT2209309 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2209250 Installation Instructions Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front &...
  • Page 3 For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 4398881 CABINET TRIM PARTS (White) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet, Trim 2006790 White 2006793 Black 2006792 Biscuit 2003857 Screw 1163283 Screw 2209073 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005925 Seal−Trim, Side...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2188392 Meat Pan, Air...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 4398881 (White) (Black) Illus. Part DESCRIPTION 2209225 Control Panel 2209001 Inlay, Control Panel 2208995 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3)
  • Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006523 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper...

  • Page 11: Freezer Shelf Parts

    For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 4398881 FREEZER SHELF PARTS (White) (Black) Illus. Part DESCRIPTION 2003142 Solid Shelf 2188381 Front, Ice Compartment 1113564 Shelf, Fixed (1) 1113636 Shelf, Deep (2) 2208192 Basket 2003112 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION Top Grille Assembly 2003716 White 2005901 Black 2006395 Biscuit 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Decortive Panel Assembly 2003725 White 2005904 Black...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2202546W White 2202546B Black 2202546T Biscuit 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer,...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviceable) 2195051 Strain Relief 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180205 Door, Ice 489000 Screw Lever, Ice Dispenser 2180259 White 2180261 Black...
  • Page 21 UPPER UNIT PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 22 For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION 2003398 Assembly, Unit Base 2163787 Clip, Compressor Mounting (4) 2183418 Compressor (Includes Items 8, 9, 11,12 & 21) (Also Order 876765 Tube Kit) 680975 Washer 2163786 Grommet, Mounting 2154760 Overload 2162358 Terminal Cover...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield−Drain, Pan...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 (White) (Black) (Biscuit) 4398881...
  • Page 28 For Models: KSSS36QJW00, KSSS36QJB00, KSSS36QJT00 Illus. Part DESCRIPTION 2203198 Tube, Filter Inlet 841707 Insert, Tube 628379 Clip, Fuse 2209430 Tube, Filter Outlet 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2154472 Connector 2006766 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire...

This manual is also suitable for:

Ksss36qjt00Ksss36qjw00
