Summary of Contents for KitchenAid KSSS36QTB02
- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) 12−07 Litho In U.S.A. (mat) Part No. W10175718 Rev. A...
-

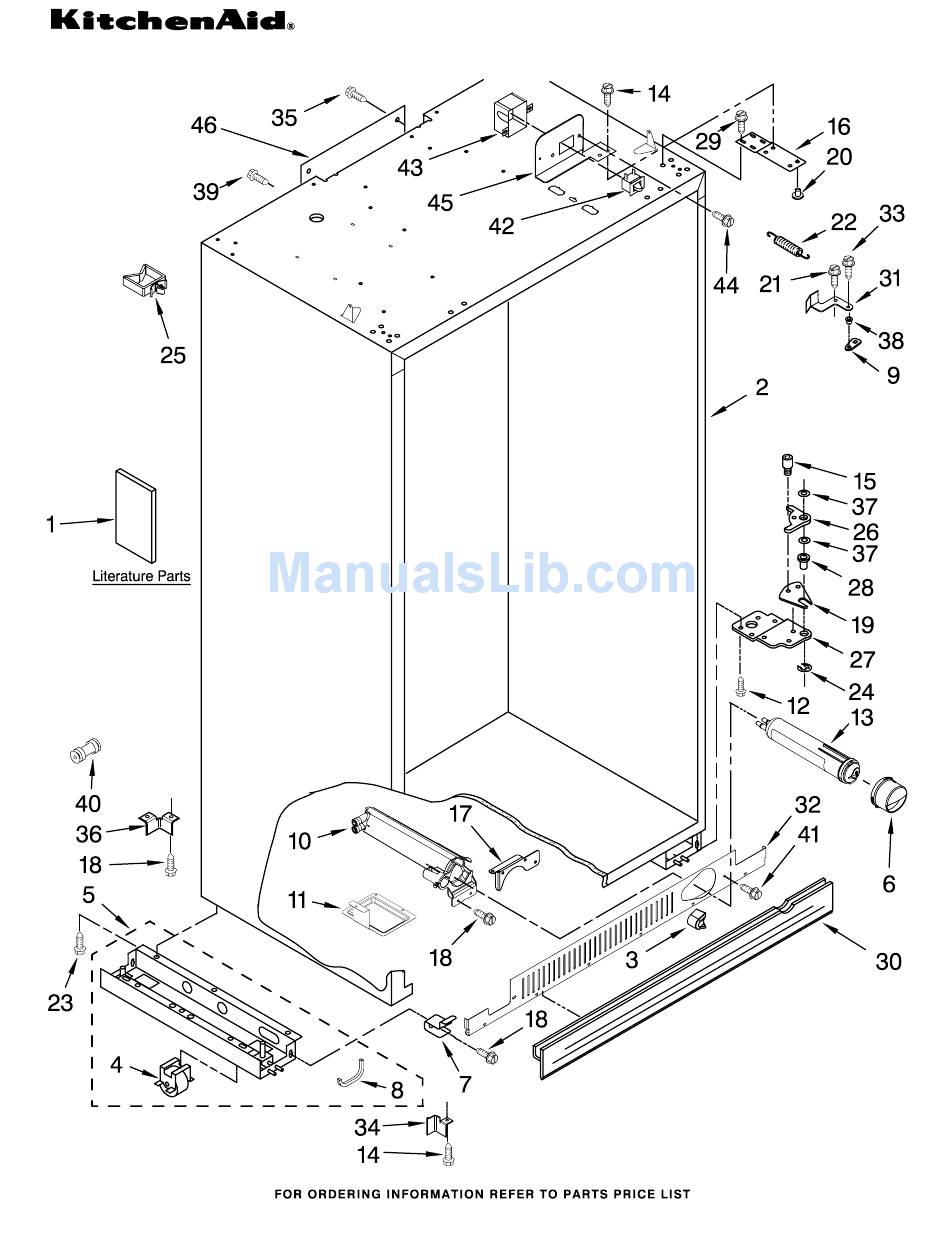

Page 2: Cabinet Parts
CABINET PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2260526 Housing, Water Literature Parts Extension Arm, Filter W10161714 Use & Care Guide Door Closer 2318189 Tray, Drip Filter W10164071 Energy Guide 2307857 Right 3400525 Screw W10159832 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132470 White W10132471 Black W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316686 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2314016W White 2314016B Black 2314016 Brushed Aluminum Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Wire, Shelf (4) 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10175718... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2003577 Guard, Air Return 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316544 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assy 2316824W White 2316824B Black 2316824S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assy (4) 2179404 Rack, Wine 2302841 Assembly, Meat Pan Cover 2302834 Assembly, Crisper Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2256253 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215650 Cover, Emitter 2259385 Fan Motor 2220904 Gasket (2) Liner (Not A 2198665 Tube, P.C. Board Evaporator Cover Serviceable Part) 2169142 Fan Blade...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222960 Ice Bin 2 W10134781 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door (Includes #8) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Handle, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 18 FREEZER DOOR PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #13) W10160320 White W10160319 Black W10157901 Universal Silver 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222813 Door Gasket, Magnetic Handle, Door 2316844W White...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 20 DISPENSER FRONT PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
- Page 21 UPPER UNIT PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718...
- Page 22 UPPER UNIT PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2317982 Drier Following Parts Not Illustrated 489373 Screw, Compressor 22 W10136614 Bracket, Fan Motor and Optional Parts Not Included Mounting (4) (Condenser Fan) 2223393 Compressor...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 9791833 Clip, Thermistor 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 2307686 Tube, Discharge 2188820 Thermistor...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) W10175718... - Page 26 ICEMAKER PARTS For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488500 Screw 2320599 Shield, Valve 626680 Module Assembly 18 W10122550 Mold & Heater 2310192 Wire Assembly, (Includes Items (Also Order Icemaker 19 &...
