KitchenAid KSSS36QDW05 Parts List

KitchenAid KSSS36QDW05 Parts List

36" built in refrigerator
Hide thumbs Also See for KSSS36QDW05:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual

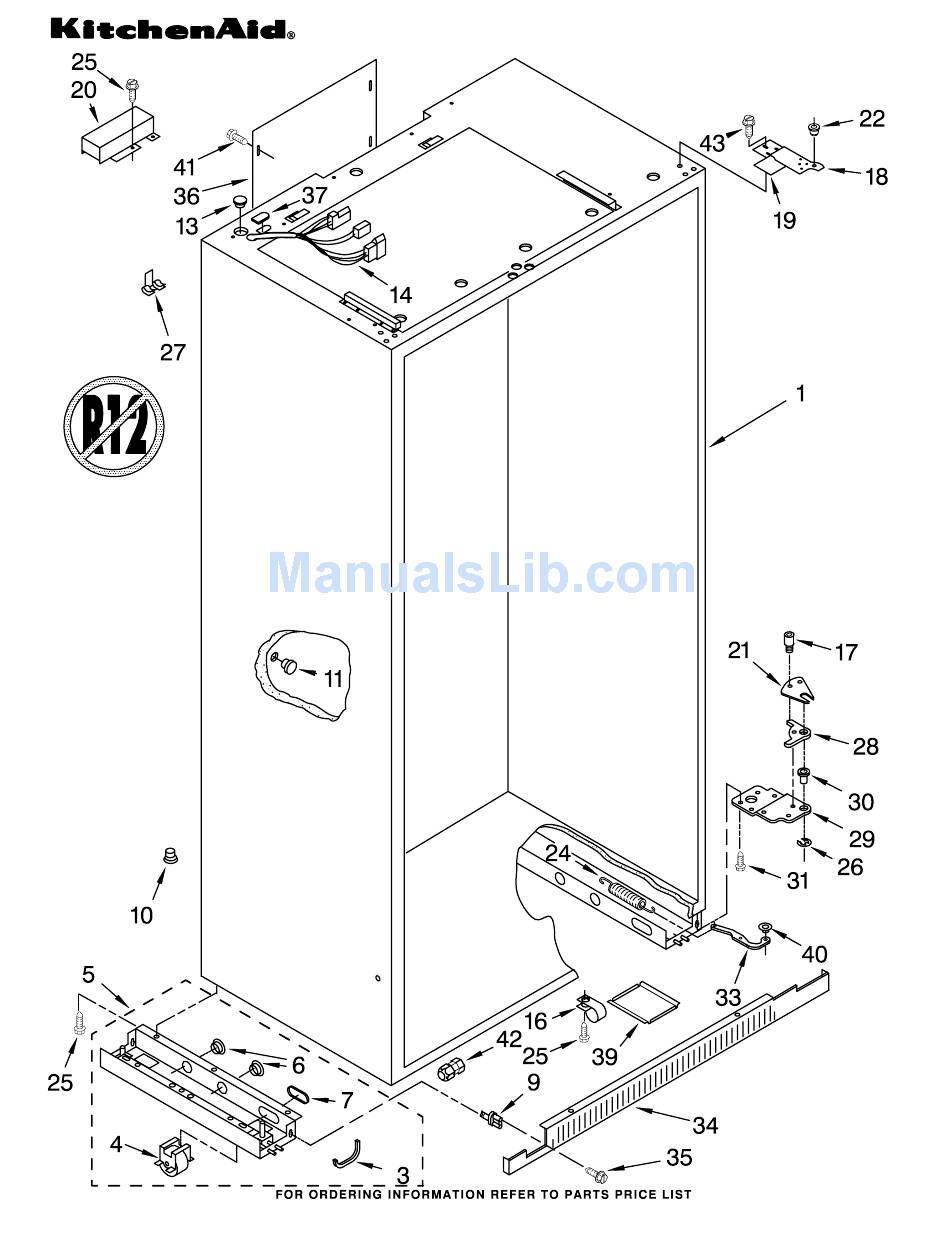

CABINET PARTS
36" BUILT IN
For Models: KSSS36QDW05, KSSS36QDX05
REFRIGERATOR
4−97 Litho In U.S.A. (mek)
1
Part No. 4394680

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36QDW05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS36QDW05

Summary of Contents for KitchenAid KSSS36QDW05

  • Page 1 CABINET PARTS 36" BUILT IN For Models: KSSS36QDW05, KSSS36QDX05 REFRIGERATOR 4−97 Litho In U.S.A. (mek) Part No. 4394680...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cabinet (Not A 2004993 Screw, Door Stop Hinge (Bottom) Serviceable Part) Hinge (Top) 2004539 Freezer Side 2005004 Grommet, Tube 2001976 Left Side 2004507 Refrigerator Side Crossover 2001975 Right Side 2004992 Bushing,...
  • Page 3 CABINET TRIM PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION Cabinet, Trim (2) 2004668 White 2004553 Stainless Steel 2003857 Screw 1161561 Screw 2004536 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 487944 Washer (2) 4394680...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 1112640 Control Panel 2003301 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113773 Shield, Control Panel 1112613 Socket, Light (2)
  • Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113767 Shield, Control Panel 1112613 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003325 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper 2003378 Glass, Crisper 2000742 Meat Pan, Connector...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2003142 Solid Shelf 2003133 Front, Ice Compartment 1113564 Shelf, Fixed (1) 1113636 Shelf, Deep (2) 2001551 Basket 2003112 Trim, Basket Slide, Basket 2000061 Right Side 2000062 Left Side 486194 Screw 4394680...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION Top Grille Assembly 2003716 White 2003713 Stainless Steel 2004946 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Decortive Panel Assembly 2003725 White 2003722 Stainless Steel 2003480 Guard, Compressor Wiring 2003481 Guard, Water Valve Wiring...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2004521 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic Handle, Door...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2004884 Freezer Door Panel (Includes Insulation) 1112997 Tube, Wiring 1112928 Retainer, Tube 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2004521 Hinge, Top 2004520 Spacer−Door, 2004924 Wiring Harness, Freezer Door 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer,...
  • Page 19 DISPENSER AND FRONT PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Screw Housing, Dispenser 489000 Screw 1124715 White 488892 White Lever, Ice 1107943 Black 489197 Stainless Steel Dispenser 487052 Screw 2147164 Insulator, Bracket 1124718 White 851389 Light Bulb Control 1127421 Black...
  • Page 21 UPPER UNIT PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 22 UPPER UNIT PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 487522 Screw Base 851095 Wire Tie (2) Following Parts Not Illustrated 2163787 Clip, Compressor 2164492 Drier and Optional Parts Not Included Mounting (4) 2169135 Motor, Fan 2183418 Compressor...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve, Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2002995 Tube, Discharge 2003272 Sleeve...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS36QDW05, KSSS36QDX05 4394680...
  • Page 28 ICEMAKER PARTS For Models: KSSS36QDW05, KSSS36QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 628228 Mold & Heater 489276 Screw 628379 Clip, Fuse (Also Order 2171593 Shut Off Arm 2005009 Water Inlet 542638 Silicone 2171952 Bracket Tube Assembly Grease) 489478 Screw...
