Inverter Fusion i-TECH CUT6 User Manual

Inverter plasma cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

i-TECH
CUT60
Inverter
Plasma Cutter

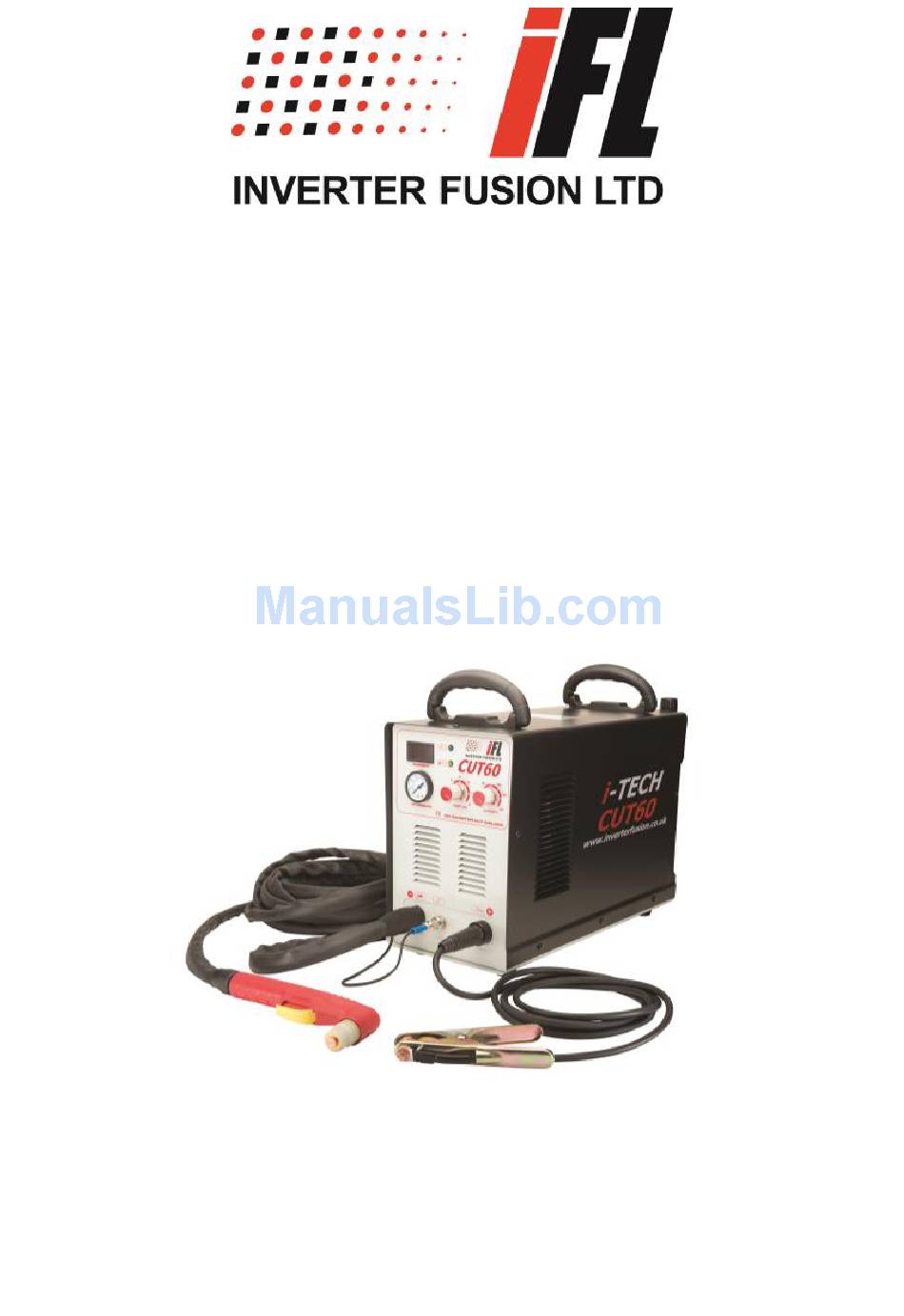

User Manual
Do not attempt to set up or operate this equipment until you have read & fully
understood the contents of this manual. If you do not fully understand any of the
instructions, please contact your supplier for further information & advice before
beginning any cutting procedure.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-TECH CUT6 and is the answer not in the manual?

Questions and answers

Related Manuals for Inverter Fusion i-TECH CUT6

Summary of Contents for Inverter Fusion i-TECH CUT6

  • Page 1 i-TECH CUT60 Inverter Plasma Cutter User Manual Do not attempt to set up or operate this equipment until you have read & fully understood the contents of this manual. If you do not fully understand any of the instructions, please contact your supplier for further information & advice before beginning any cutting procedure.

  • Page 2: Table Of Contents

    Contents 1. General description .................. 1 2. Warranty ....................2 3. Safety ......................2 4. Main parameters ..................3 5. Panel structures ..................4 6. Set up & operation ................... 6 7. Caution ..................... 9 8. Maintenance .................... 9 9. Troubleshooting ..................10 1.

  • Page 3: Warranty

    5. Upon receipt and inspection of the product, it will be repaired or replaced at the discretion of Inverter Fusion Ltd. In the event of a chargeable repair, or a repair being required that is not considered to be a warranty issue, the claimant will be contacted for further instructions.

  • Page 4: Main Parameters

    4. Main Parameters Power Voltage Single Phase 240V / 50/60Hz Input Power Capacity 9 KVA No—Load Voltage 230 V Output Current 60 Amps Output Voltage 120 Volts Duty Cycle Burner - Internal Diameter 1.2mm Power Factor 0.93 Insulation Class Protection Class IP23 Arc Starting Method HF / Contact...

  • Page 5: Panel Structures

    5. Panel Structure 5.1. Front panel Power and Temperature Air Pressure Gauge indicator LEDs Post Air Time Control Current Setting Control Positive Terminal Torch Switch Plug Terminal Negative Terminal...
  • Page 6 5.2. Back panel Power Switch Power Input Regulator connection Water trap Air Input 5.3 i-TECH CUT60 with leads Safety Sleeve Torch Switch Cable/ Input Torch Earth Return...

  • Page 7: Set Up & Operation

    6. Set Up & Operation Please ensure you follow these instructions whilst setting up your i-TECH CUT60: 6.1. Power cable connection Connect the power input lead to a suitable 240v single phase plug. NOTE: If a longer mains cable is required please contact your supplier for specifications, as resistance from unsuitable additional cabling will affect cutting performance.
  • Page 8 6.3. Start Up and Operation 6.3.1. Start Up Switch on the power using the switch on the back panel. The LED power indicator will light up. 2. Set the pressure to the required value. The correct output pressure is critical both to the cutting performance and to optimise the machine’s lifespan.

  • Page 9: Caution

    Any parts or consumables fitted or used in conjunction with the i-TECH CUT60 which affect the equipment operation & which are deemed by Inverter Fusion Ltd to be of inferior quality or not fit for that purpose will be regarded as abuse...

  • Page 10: Troubleshooting

    9. Troubleshooting PROBLEM CAUSE SOLUTION Torch will not come Power switch OFF Turn power switch to ON position Work piece Earth Clamp not attached Attach to work piece or to steel table, with workpiece securely clamped to table. If flame appears more green than usual, Check air supply air supply may be compromised.
  • Page 11 9. Troubleshooting (cont’d) PROBLEM CAUSE SOLUTION Insufficient Pene- Cutting speed too fast Reduce travel speed tration Torch tilted too much Adjust tilt Metal too thick Several passes may be necessary Worn torch parts Inspect and repair or replace worn parts Consumables wear Unit capability is being exceeded Material too thick, increase angle to...
  • Page 12 Heathpark Way, Heathpark Industrial Estate, Honiton, Devon, EX14 1BB. Tel: 01404 549791 | Fax: 01404 46718 | Email: sales@inverterfusion.co.uk Website: www.inverterfusion.co.uk | Facebook: www.facebook.com/inverterfusionltd...

This manual is also suitable for:

I-tech cut60
