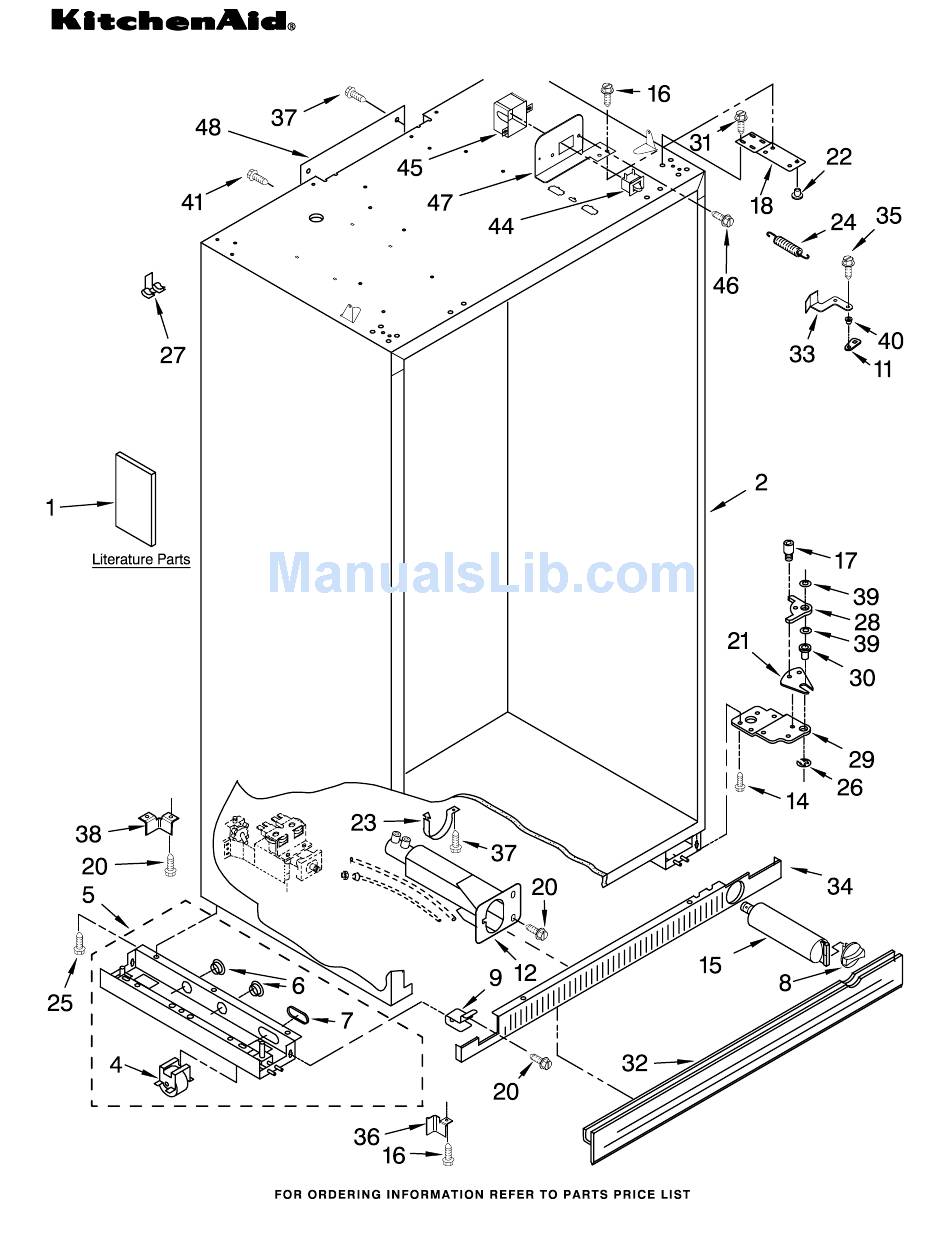

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSC48FMS00
(Stainless Steel)
1−04 Litho In U.S.A. (mek)
Part No. 8198471
1
