Summary of Contents for KitchenAid KSSC48FMS03
- Page 1 CABINET PARTS 48" BUILT IN For Model: KSSC48FMS03 REFRIGERATOR (Stainless Steel) 10−06 Litho In U.S.A. (dmm) Part No. W10114824...
-
Page 2: Cabinet Parts

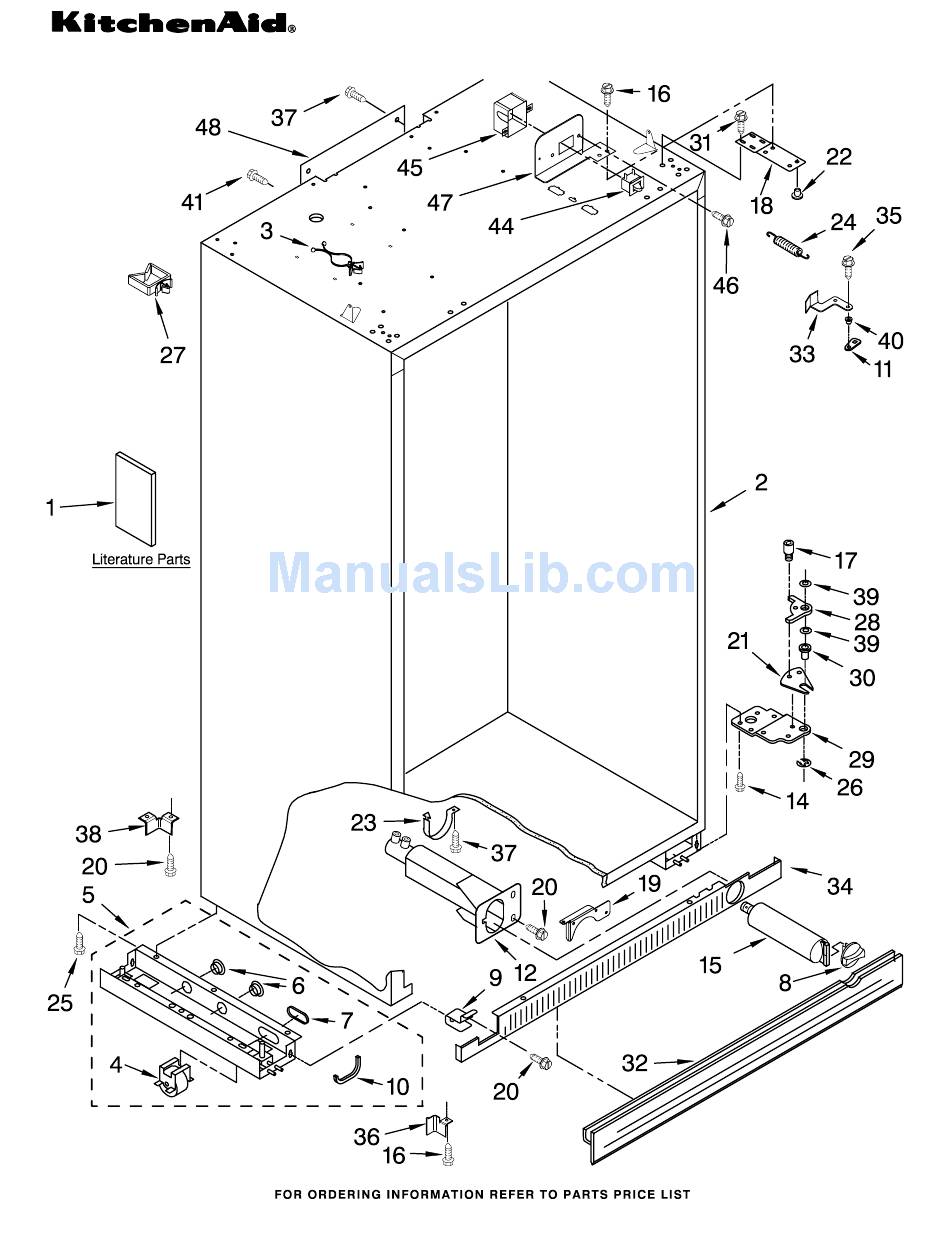

CABINET PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8533913 Screw 1/4−20 x 5/8 Literature Parts 2005783 Cam, Door Closer 2209026B Skirt−Grille, 2320531 Use & Care Guide 2209022 Housing, Water Bottom 2307364 Energy Label Filter Extension Arm, 2320619 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2222552S Cabinet, Trim (Right Side) 1163283 Screw 2316688 Cabinet, Trim (Bottom) 486194 Screw 2313993 Cabinet, Trim Top 2222553S Cabinet Trim (Left Side) 2005925 Seal−Trim, Side 489464 Screw W10114824...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2302872 Cover, Shelf 2302884 Shelf, Fixed 2259086 Gasket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice 2266932 Bucket, Ice 2266955 Spacer, Ice Door 8533929 Screw W10114824... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302773 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center 2162085 Socket, Light 2255743 Light Bulb (2) 486194 Screw 8281185 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2257412S Panel, Decorative Assembly 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2320678 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2005292 Badge, Kitchen Aid 489348 Clamp 2004333 Nut 2254759 Bracket, Louver...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2312831 Trim, Glass Front...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2259385 Fan Motor 2266801 Deflector, Air 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket, Magnetic 2306157 Skin, Door 2005290 Handle, Door...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824... - Page 16 FREEZER DOOR PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 2252328 Freezer Door Panel (Includes Insulation) 2306398 Plate, Door−Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic 2005290 Handle, Door 2309060 Spacer, Door−Skin Handle Side 2257637 Door, Spacer 2306161 Skin, Door...
- Page 17 UPPER UNIT PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824...
- Page 18 UPPER UNIT PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2310217 Wiring Harness, 2304175 Inverter Box 2317982 Drier Unit Compartment 489373 Screw, Compressor 2310207 Wire Assembly Mounting (4) (Condenser Fan) 2302967 Compressor 2206036 Motor, Fan (Includes Items 2190685 Blade, Fan Following Parts Not Illustrated...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259354 Tube, Discharge 2188820 Thermistor 2306094 Evaporator 2306389 Heater, Defrost 1113048 Clamp, Heater (2) 2316794 Seal, Return Air...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSC48FMS03 (Stainless Steel) W10114824... - Page 22 ICEMAKER PARTS For Model: KSSC48FMS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488937 Clamp Tube 8533917 Screw 2221240 Heater, Fill Tube 2313990 Shut Off Arm 2320597 Shield, Valve 2259064 Cover, Fill Tube 2257538 Cover 489276 Screw Heater 2310108 Wire Assembly, 488500 Screw...
