KitchenAid KSSC48FKB00 Parts List

Black stainless steel 48" built in refrigerator
Hide thumbs

Advertisement

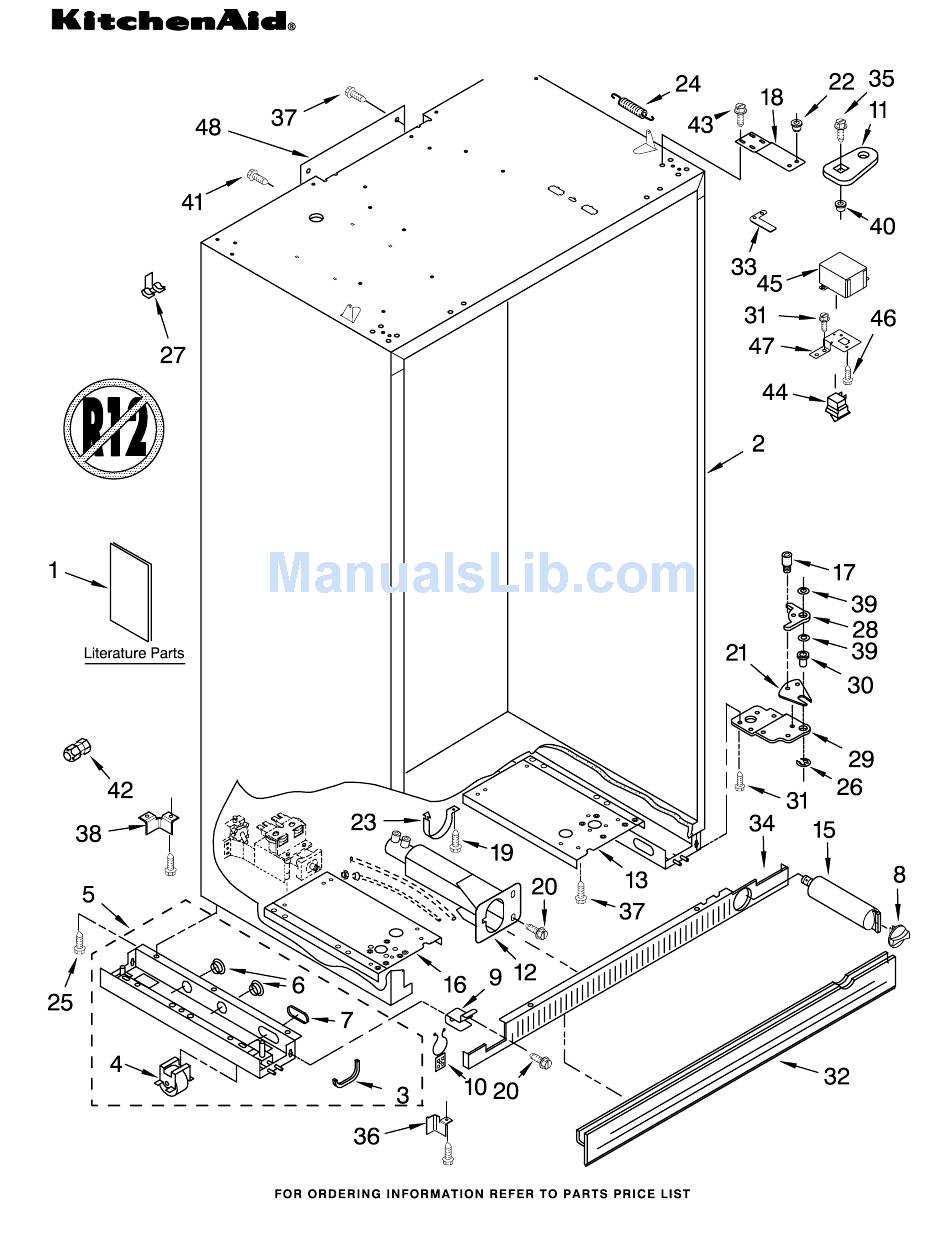

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Models: KSSC48FKB00, KSSC48FKS00
(Black)
(Stainless Steel)
5−03 Litho In U.S.A. (rcg)
1
Part No. 8197669

Advertisement

loading

  Also See for KitchenAid KSSC48FKB00

  Related Manuals for KitchenAid KSSC48FKB00

  Summary of Contents for KitchenAid KSSC48FKB00

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 5−03 Litho In U.S.A. (rcg) Part No. 8197669...
  • Page 2: Cabinet Parts

    Flexible 2186494B Cap, Water Filter 2006442 Mounting Stud, Grill 2005237 Clip, Wire 2005783 Cam, Door Closer 2209022 Housing, Water Filter CABINET PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2006806 Support, Bottom (Right Side) 2203220 Filter, Water...
  • Page 3 8197669 CABINET TRIM PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919S Stainless Steel 2215919B Black 2003857 Screw Screw 8281250 Stainless Steel 8281252 Black 2209075 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top...
  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2220891 Solid Shelf 2220848 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2220845 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air...
  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS 8197669 For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light 2160708 Light Bulb (2)
  • Page 8 2209492 Guard, Wiring 2005292 Nameplate 8201530 Baffle−Air, Condenser 2004333 Nut 2005483 Bracket, Louver Grille, Louver 2215935S Stainless steel 2215935B Black 488879 Screw 304392 Screw 2220808 Wire Assembly, RC/FC Light Switch 489348 Clamp For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006525 Frame, Assembly Meat Pan 1112247 Cover, Crisper 2003380 Glass, Crisper...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC48FKB00, KSSC48FKS00 Illus. Part 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon...
  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) Illus. Part DESCRIPTION 8201581 Refrigerator Door Panel (Includes Insulation) 2209202 Plate, Door Handle 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...
  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 16 FREEZER DOOR PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 8201579 Freezer Door Panel (Includes Insulation) Skin, Door 2209103B Black 2006776 Stainless Steel 2004447 Brace, Door Corner 308544 Screw 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door,...
  • Page 17 UPPER UNIT PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 18 2209037 Shroud, Condenser (Left) 2221501 Control Board 2203075 Spacer (5) 2209493 Bracket, Inverter 486899 Screw 488208 Screw 2209062 Condenser UPPER UNIT PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 943447 Grommet (4) 2221009 Jumper Wire 487522 Screw...
  • Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater...
  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) 8197669...
  • Page 22 ICEMAKER PARTS For Models: KSSC48FKB00, KSSC48FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2005038 Plug, Water Valve 841707 Insert, Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2209430 Tube, Filter Outlet 2006766 Valve, Solenoid...

This manual is also suitable for:

Kssc48fks00
