A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Read all the instructions contained in this manual. Keep this
manual in a safe place, so that the information is available at
all times. If you give the equipment to another person, make
sure to provide these operating instructions. Basic safety
precautions should always be followed to reduce the risk of
fire, electric shock and personal injury.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION and
AWARENESS.
Know Your Tool and Its Capabilities
This machine is a battery-powered portable chain saw that is
designed for residential use.
This machine is composed of an electric motor, which drives a
chain that runs on a bar.
The double braking system stops chain movement when the
motor is stopped or in the event of kickbacks while working.
Intended use
This machine was designed and manufactured for
felling, bucking and delimbing trees or cutting wooden
objects with dimensions suitable for the cutting bar's
capabilities.
Improper use
Any other use differing from the above mentioned applications
poses a serious hazard to the user and may damage both the
tool and your personal property. Examples of improper use
include, but are not limited to:
• trimming hedges;
• carving;
• sectioning pallets, crates and various packing materials;
• sectioning furniture or other materials with nails, screws or
other metal components;
© 2014 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

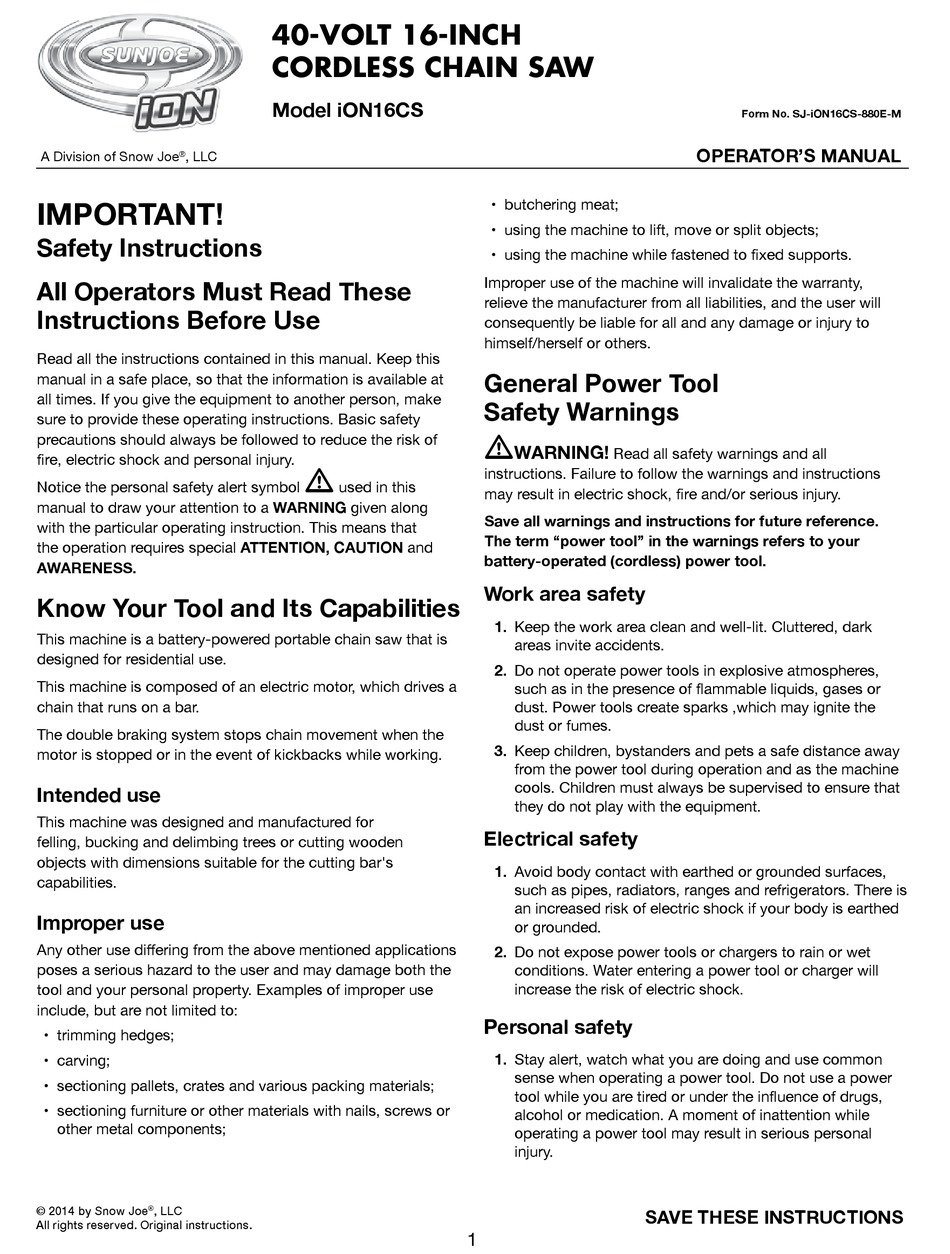

40-VOLT 16-INCH
CORDLESS CHAIN SAW
Model iON16CS
m
used in this
• butchering meat;
• using the machine to lift, move or split objects;
• using the machine while fastened to fixed supports.
Improper use of the machine will invalidate the warranty,
relieve the manufacturer from all liabilities, and the user will
consequently be liable for all and any damage or injury to
himself/herself or others.
General Power Tool
Safety Warnings
m
WARNING!
Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
battery-operated (cordless) power tool.
Work area safety
1. Keep the work area clean and well-lit. Cluttered, dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks ,which may ignite the
dust or fumes.
3. Keep children, bystanders and pets a safe distance away
from the power tool during operation and as the machine
cools. Children must always be supervised to ensure that
they do not play with the equipment.
Electrical safety
1. Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed
or grounded.
2. Do not expose power tools or chargers to rain or wet
conditions. Water entering a power tool or charger will
increase the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating a power tool may result in serious personal
injury.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-iON16CS-880E-M
OPERATOR'S MANUAL
Advertisement
Table of Contents
Related Manuals for sunjoe iON16CS
Summary of Contents for sunjoe iON16CS
-
Page 1: Safety Instructions
40-VOLT 16-INCH CORDLESS CHAIN SAW Model iON16CS Form No. SJ-iON16CS-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! • butchering meat; • using the machine to lift, move or split objects; Safety Instructions • using the machine while fastened to fixed supports. -
Page 2: Chain Saw Safety Warnings
2. Use personal protective equipment suited to your work use. Many accidents are caused by poorly maintained conditions to help reduce personal injuries. This includes power tools. a dust mask, rubber gloves, non-skid safety shoes, a hard 6. Keep cutting tools sharp and clean. Properly maintained hat, safety glasses and hearing protection. -
Page 3: Causes And Prevention Of Kickback
• Carry the chain saw by the front handle with the chain saw • Ensure safe carrying of the chain saw. Whenever the switched off and away from your body. When transporting machine is to be handled or transported, you must: or storing the chain saw, always fit the guide bar cover. - Page 4 • Charge in a well-ventilated area – Do not block the is exposed to battery fluids, wash the affected area with soap and water and rinse with vinegar. If eyes are exposed charger vents. Keep them clear to allow for proper ventilation.
- Page 5 10. If the battery pack suffers overloading and overheating, 12. Never fully discharge the battery pack (maximum the integrated protective cutoff will switch off the recommended depth of discharge is 80%). A complete equipment for safety reasons. discharge of the battery pack will lead to premature aging of the battery cells.
-
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S DANGER! ROTATING MANUAL(S) –... -
Page 7: Technical Data
Know Your Cordless Chain Saw Read the owner’s manual and safety rules carefully before operating your cordless chain saw. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. -
Page 8: Carton Contents
Unpacking Bar and Chain Mounting WARNING! Always wear heavy-duty gloves when Carton Contents handling the bar and chain. Mount the bar and chain very • Cordless chain saw carefully so as not to impair the safety and efficiency of the machine. -
Page 9: Preparing To Work
3. Mount the guide bar by inserting the stud bolt into the 6. Raise the guide bar and tighten the chain tension bar’s hole using the tension adjuster; move the bar adjustment knob securely (Fig. 6). towards the back of the machine body (Fig. 3). Fig. -
Page 10: Adjusting The Chain Tension
Adjusting the Chain Tension To check that the brake works efficiently, proceed as follows: WARNING! – Start the motor by holding the front hand grip and Before performing any checks, push the front hand guard forward with your thumb adjustments, repairs or maintenance on the machine, make (towards the guide bar). -
Page 11: Battery Pack Operation
Battery Pack Operation • Use the battery charge indicator lights to determine when to charge your EcoSharp iBAT40 lithium-ion battery pack. ® The equipment is powered by a lithium-ion battery. The battery • You can "top-off" your battery pack's charge before starting pack is completely sealed and maintenance free. -
Page 12: Charging A Hot Or Cold Battery Pack
5. When the bottom light turns green, the battery is fully Fig. 12 charged (Fig. 11). Fig. 11 Push lock button 11. Timely recharging of the battery will help prolong the battery's life. You must recharge the battery pack when you notice a drop in the equipment's power. -
Page 13: Stopping The Machine
2. Take off the cutting bar sheath. 4. Work only in daylight or good artificial light. 3. Make sure the guide bar is not touching the ground or 5. Take utmost care when working near metal fences. any other object. 6. -
Page 14: Cutting Techniques
Checks During Work i) When bucking and felling are performed by two or more people at the same time, the felling operation should be • Checking the chain tension separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should The chain tends to stretch gradually as you work, so you need not be felled in a manner that would endanger any person, to check its tension frequently. - Page 15 Make the lower horizontal notching cut first. Follow the simple directions for easy cutting. i) When the log is supported along its entire length as This will help to avoid pinching either the saw chain or the illustrated (Fig. 19A), it is cut from the top (overbuck). guide bar when the second notch is made.
-
Page 16: Maintenance
iv) It is easier to saw a log using the spiked bumper • If there is excessive dirt or resin build-up, disassemble the (Fig. 19D). chain and place it in a container with a suitable cleanser. Then rinse it with clean water and treat it with a suitable –... -
Page 17: Chain Brake
will increase. The drive links of a correctly tensioned warm sharpness on all the cutting edges. chain will hang approximately 0.050 in. (1.25 mm) out of the If you sharpen the chain yourself, use special round-section bar groove (Fig. 21). Be aware that a chain tensioned while files with the right diameter depending on the type of chain warm, may be too tight upon cooling. -
Page 18: Bar Maintenance
• replace the bar, the chain and the casing, following the lean to one side. assembly instructions in the “Bar and Chain Mounting” You can purchase replacement parts for your iON16CS section. chain saw by ordering online at snowjoe.com or, to order by... -
Page 19: Chain Sprocket
Repair or replace any faulty parts on the unit. Store the machine in a dry, locked place out of the reach of children. Support If your Sun Joe iON16CS cordless chain saw requires ® service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers... -
Page 20: Troubleshooting
Troubleshooting Fault Possible Cause Remedy The motor does not start • No battery or not • Make sure that the battery is inserted correctly inserted correctly when you switch it on • Battery exhausted • Check charge status and recharge the battery The motor stops •... - Page 21 ® EcoSharp 40 V Lithium-Ion Battery Charger iCHRG40 ® 16-Inch Oregon Chain Bar iON16CS-35 16-Inch Oregon Chain iON16CS-36 SWJ-OIL sold at snowjoe.com or you can purchase equivalent Bar and chain oil bar and chain oil sold at your local hardware store...
- Page 22 NOTES...
- Page 23 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience ® ® as pleasant as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions.
- Page 24 snowjoe.com...
