- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 10−00 Printed In U.S.A. (mdg) Part No. 4398874...
-
Page 2: Cabinet Parts

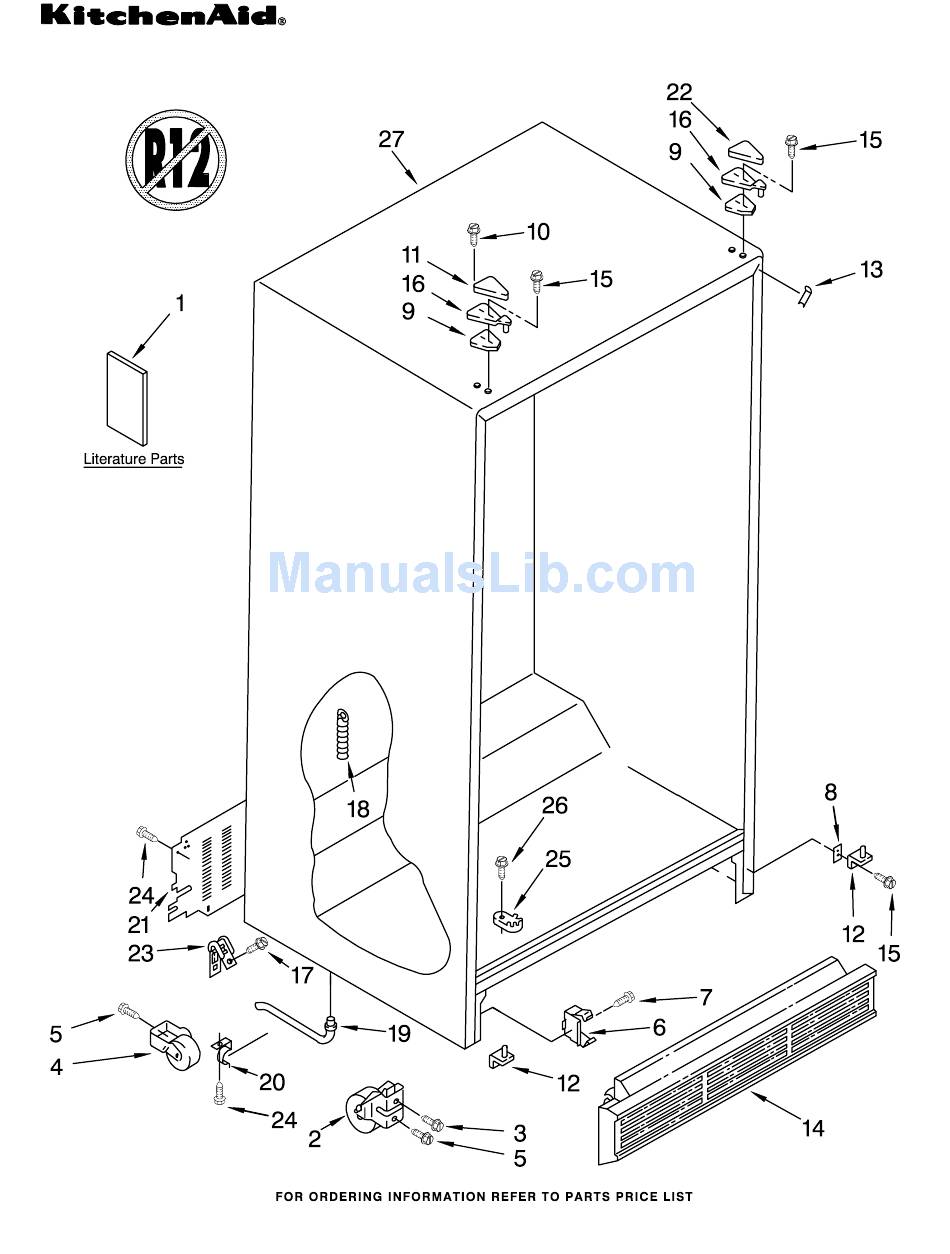

CABINET PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part LITERATURE PARTS LIT2206106 Use & Care Guide LIT2200279 Service & Wiring LIT2211861 Energy Label LIT628370 Modular Icemaker 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) 4398874 (Almond) (Black) Illus. (Biscuit) Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2196485 Stud Assembly... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) Illus. Part 2195978 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan 2209677 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 6 FREEZER LINER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part 2174493 Shelf, Top 2171713 Door, Ice 940014 Hole Plug 8281158 Screw 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2196483 Stud Assembly 2176134 Grommet (2) 1119237 Left Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2206501 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor 489478 Screw 2162085 Socket, Light...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part 2194233W White 2194233N Almond 2194233B Black 2194233T Biscuit 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2173825 White 2173828 Almond 2173829 Black 2186863T Biscuit...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 12 FREEZER DOOR PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part 2204344W White 2204344N Almond 2204344B Black 2204344T Biscuit 2194777W White 2194777N Almond 2194777B Black 2194777T Biscuit 2194778W White 2194778N Almond 2194778B Black 2194778T Biscuit 489463 Screw 3400012 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2180323 White...
-
Page 15: Air Flow Parts
For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2209606 Gasket 2203593 Air Duct Freezer 2209607 Gasket 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker... -
Page 16: Control Parts
For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) Illus. Part DESCRIPTION 2200135 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Light Switch 2161461 Thermostat (FC) 2162046 Adaptive Defrost Control 489398 Screw (2) CONTROL PARTS (Almond) (Black) Illus. Part... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 18 For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) Illus. Part DESCRIPTION 486692 Speed Nut 2190685 Fan, Blade 2204242B Condenser Assembly 489464 Screw 2208280 Clip, Wire 489099 Screw 934011 Clip, Tube (3) 2161302 Sleeve 2158826 Dampener 2204239 Tube Suction 4387731 Cover (Service...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) (Black) (Biscuit) 4398874... - Page 20 ICEMAKER PARTS For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) (Almond) Illus. Part 489084 Screw 2196157 Fitting, Water 628379 Clip, Fuse 2181940 Tube, Water 489478 Screw 2182106 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover 488649 Screw 628228 Mold & Heater...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05 (White) Illus. Part Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White 350939 Enamel, Black 350930 Enamel, White 350956 Enamel, Almond 72017 Brush Touch−Up Kit 72107 Brush Touch−Up Kit 72032 Brush Touch−up kit...
