CABINET PARTS
REFRIGERATOR
For Models: KSRS25QAWH11, KSRS25QAAL11
(White)
(Almond)
1−95 Printed In U.S.A. (RCG)
1
Part No. 4379694

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRS25QAAL11 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KSRS25QAAL11

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 1−95 Printed In U.S.A. (RCG) Part No. 4379694...

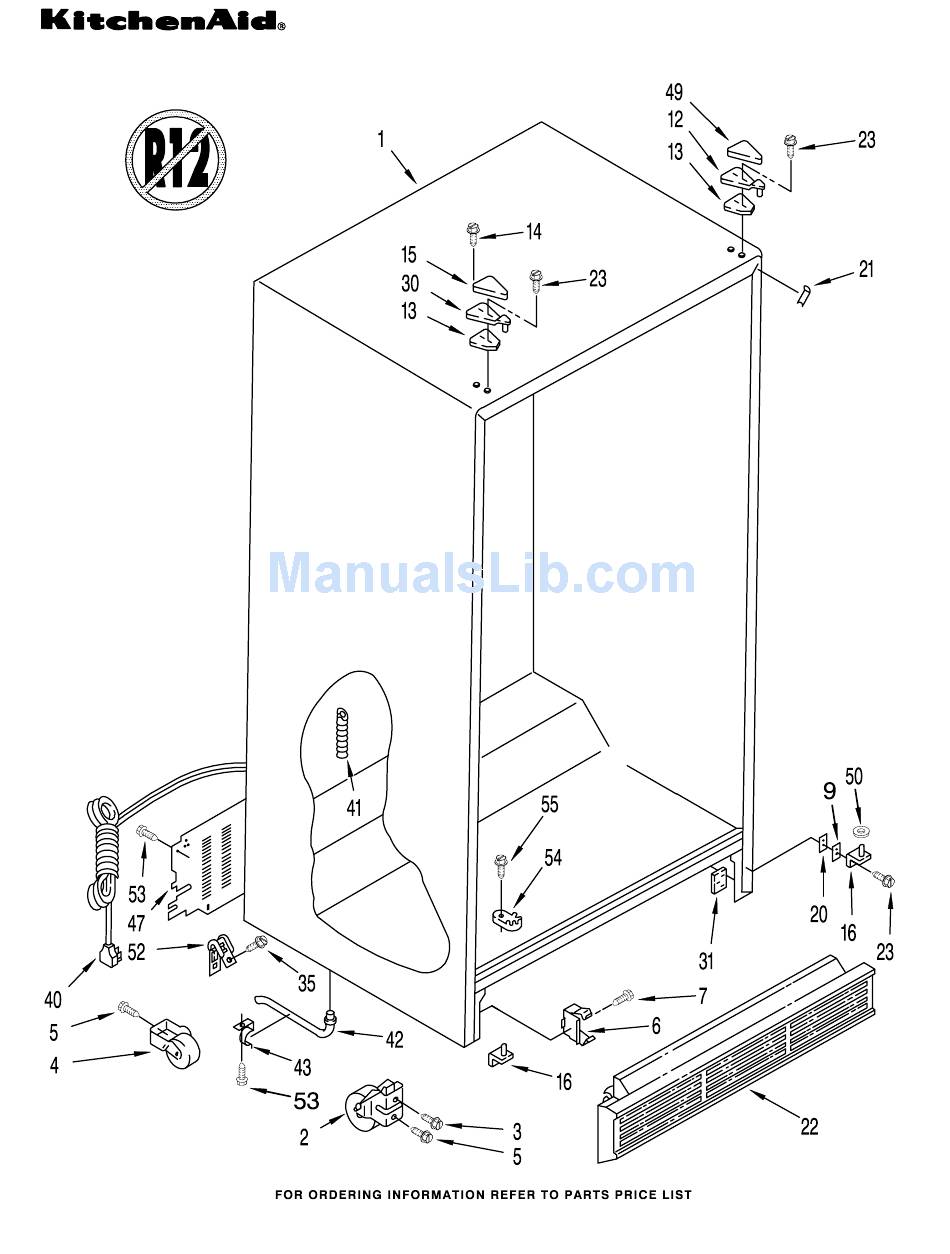

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2 2174748 Front Roller (2) 489432 Screw 981122 Roller (Rear) (2) 489427 Screw 6 2155013 Clip, Grille 489242 Screw 9 2156056 Shim 12 2171917 Hinge Top (R.H.) 13 2171868 Shim, Hinge Top...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 5 2171846 Release Valve 6 1125675 Stud, Pan Cover 8 1110718 Stud (9) 9 1116794 Ladder, Shelf (2)
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION 1 1125597 Shelf Assembly, Cantilever (2) 2 1125593 Glass, Shelf 3 1125594 Retainer, Glass 4 1125786 Gasket, Front 5 2161771 Cover, Pan Assembly (2) 6 1125705 Gasket, Cover (Front) 7 1125706 Gasket, Cover...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 6 FREEZER LINER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2 1125824 Shelf, Top Compartment 3 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 7 1115317 Support, Stud (4) 946355 Support, Stud (2) 9 1110779...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION 1 1118386 Bracket, Motor 2 2155263 Motor, Dispenser 3 2152713 Soleniod Assembly 4 2149100 Guide, Solenoid 6 1115374 Clip, Wiring 7 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2159404 White 2159405 Almond 2 1117999 Load, Lock (4) 3 2159136 Door, Compartment 1125981 Holder, Beverage 5 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 7 2159079...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 12 FREEZER DOOR PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2159351 White 2159352 Almond 2 1107215 Handle Assembly 3 1107341 End Cap (2) 487909 Screw 5 1107651 Spacer, Handle 489075 Screw 7 2156016 Shelf Bin (4)
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 983697 Bearing, 2147131 Lamp Holder (Not A Lever (3) 2162361 Switch (4) Servicable Item) 983696 Spring, Lever (2) 32 2147164 Insulator, Control 488687 Screw...
  • Page 15: Unit Parts

    UNIT PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 16 UNIT PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 28 2169443 Compressor 488649 Screw 486692 Speed Nut (Includes Items 983659 Spring−Tube 2 1108179 Fan, Blade 12, 13, 15, 17, 63 2150347 Union 3 2164504 Condenser 27, 38 &...
  • Page 17: Icemaker Parts

    ICEMAKER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) 4379694...
  • Page 18 ICEMAKER PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 7 2155294 Tube, Water 8 1106508 Seal, Gasket 489242 Screw 10 2002182 Valve, Solenoid 627018 Nut, Compression 13 2155247...
  • Page 19: Air Flow Parts

    AIR FLOW PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part DESCRIPTION 1 2155594 Fan Scroll 2 2155590 Retainer, Fan Motor 3 2161231 Air Scoop 489176 Screw 5 2176072 Air Duct Freezer 7 2149299 Fan Motor 8 2169142 Fan Blade 10 2176759 Fan Grommet (2) 11 1115381...
  • Page 20: Control Parts

    CONTROL PARTS For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 11 1125592 Slide, Air Control 22 1115375 Clip, Wiring 1 2169150 Control Box 23 2161308 Connecting Rod 2 1115241 Tube Barrier, 12 1125591 Slide, Thermostat 489391 Fastener, Push−On...
  • Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25QAWH11, KSRS25QAAL11 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt. Uncut) Customer Touch−Up Material 479502 Tape, Vinyl...
