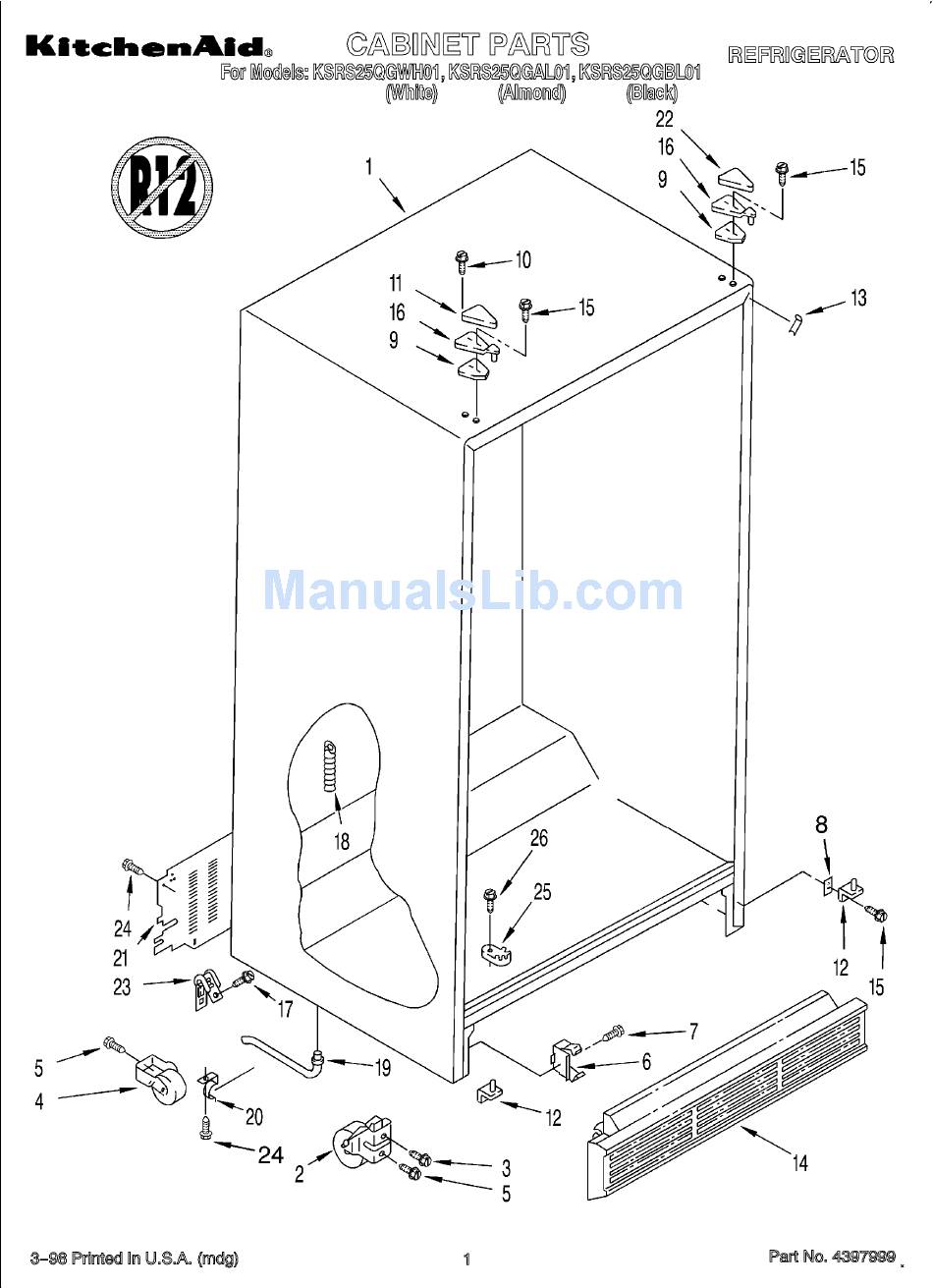

- Page 2 Cabinet (Not A Serviceable Part) 2174748 Front Roller (2) 489456 Screw 981122 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw 2156056 Shim 2196048 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White 2150343 Almond 2151694 Black 2171851 Hinge Bottom (2) Filler, Wrapper 1110708 White...
- Page 4 Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2172943 Stud (2) 1110718 Stud (10) 2181796 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179404 Rack, Wine & Egg 1123919 Bracket Retainer 489290...
- Page 6 2195978 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2198446 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19) 2174148 Glass, Cover 2174272...
- Page 8 Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2) Slide, Container 1119237 Left Side 1119293 Right Side 2174267...
- Page 10 2183726 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light 2196091 Ice Container 983668 Coupling, Conveyor 1118480 Stop, Cone 1119074 Feeder Cone 1119005 Spacer, Step (3) 1119007 Spacer, Flat (2)
- Page 12 Refrigerator Door (Includes #7) 2194233W White 2194233N Almond 2194233B Black 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173828 Almond 2173829 Black Door Gasket, Magnetic (Service) 2159075 Mist Beige 2159083 Black End Cap, Handle 2194778W White 2194778N...
- Page 14 Freezer Door (Includes #8 And Dispenser Front Parts) 2182883 White 2182884 Almond 2198265 Black Retainer, Insert 2194777W White 2194777N Almond 2194777B Black End Cap (2) 2194778W White 2194778N Almond 2194778B Black 489463 Screw 3400012 Screw 3400852 Screw 2171070 Shelf Bin (4) Door Gasket, Magnetic (Service) 2159074 Mist Beige...
- Page 16 Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2180210 2180205 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay Grille, Overflow 2180323 White 2180324 Almond 2180325 Black 2180225 Water Fitting Assembly (Includes Water Tube) Lever, Ice Dispenser 2180259 White (White Shadow Pad) 2180260...
- Page 18 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2182063 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2161478 Harness, Fan Evaporator, And Heater, Bi-Metal 2155789 Gasket Cover 2172840 Wire Tie 2155782 Gasket 2155612...
- Page 20 2172930 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Light Switch 2161461 Thermostat (FC) 2169267 Adaptive Defrost Control 489398 Screw (2) 2196003 Tube Barrier, Thermostat (FC) 2161460 Thermostat (R.C.) 2172940 Window 2172906 Grommet, Light Bar 2161466 Slide, Thermostat 489084 Screw (2) 2179920...
- Page 22 486692 Speed Nut 1108179 Fan, Blade 2198175 Condenser Assembly 489464 Screw 2155658 Clip, Wire 489099 Screw 934011 Clip, Tube (3) 2161302 Sleeve 2158826 Dampener 2162358 Cover 2183456 Overload 2183454 Relay 2169137 Capacitor 509812 Screw Grommet 489478 Screw 2164519 Evaporator 2161324 Clamp 2176336 Fan, Motor...
- Page 23 REFRIGERANT CHARGE 5.75 oz. (R-134A)
- Page 25 489084 Screw 2196035 Fitting, Water Tube 628379 Clip, Fuse 2181940 Tube, Water 1106508 Seal, Gasket 489478 Screw 2182106 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover 488649 Screw 628228 Mold & Heater Assembly (Also Order) 542638 Silicone Grease 628356 Cup, Water Fill 627843...
- Page 26 876029 Kit, Foam Slab (30" x 32-1/2" x 1-1/2") 505587 Sealer, Mastic (1 Qt.) 503695 Cork, Sealer (1/4 Pound) 511873 Touch-Up, White Porcelain (2 Oz.) 542638 Grease, Silicone (1/2 Oz.) 542639 Cement, Alumilastic (1-1/4 Oz.) 606755 Bag, Insulation (36-5/8" x 46") 799833 Kit, Evaporator Repair (Aluminum Epoxy) 833938...
