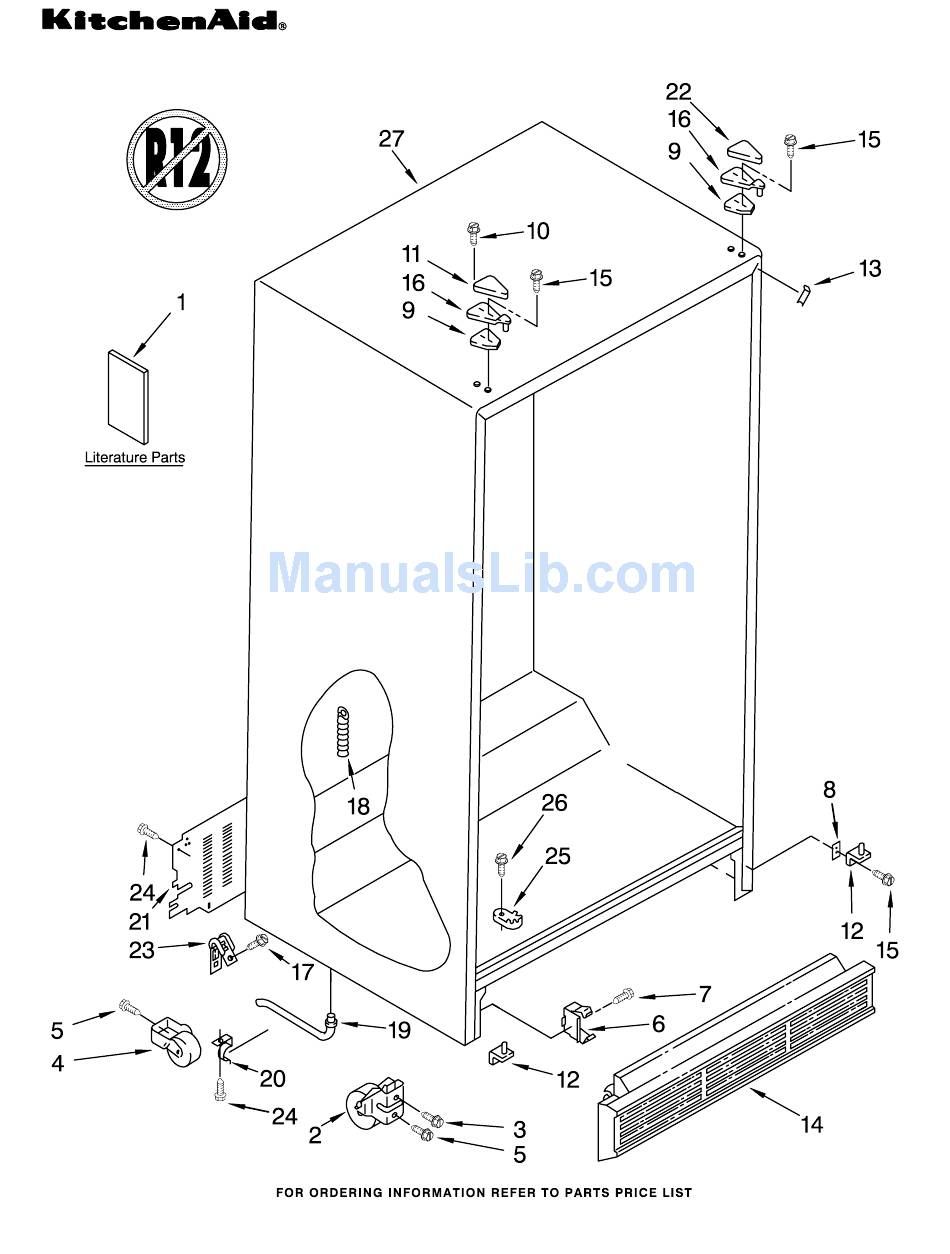

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Black) (Biscuit) (Almond) 4-99 Printed In U.S.A. (RJS) Part No. 4398219 Rev.A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 1 LIT2200139 Use & Care Guide LIT2186928 Service & Wiring LIT2196109 Energy Label LIT628370 Modular Icemaker 2174748 Front Roller (2) 489456 Screw 2196236 Roller (Rear) (2) 489427 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 4398219 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2172943 Stud (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) (Black) (Biscuit) Illus. Part 2195978 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan 2198446 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (Black) (Biscuit) (White) (Almond) 4398219... - Page 6 FREEZER LINER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 2174493 Shelf, Top 2171713 Door, Ice 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (Black) (Biscuit) (White) (Almond) 4398219... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 2183726 Bracket, Motor 2188242 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2186815 Wiring Assembly, 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (Black) (Biscuit) (White) (Almond) 4398219... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 2194233W White 2194233N Almond 2194233B Black 2194233T Biscuit 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2173825 White 2173828 Almond 2173829 Black 2186863T Biscuit...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) (Black) (Biscuit) 4398219... - Page 12 FREEZER DOOR PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 2182883 White 2182884 Almond 2198265 Black 2186847T Biscuit 2194777W White 2194777N Almond 2194777B Black 2194777T Biscuit 2194778W White 2194778N Almond 2194778B Black 2194778T Biscuit 489463 Screw 3400012 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) (Black) (Biscuit) 4398219... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180205 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay Grille, Overflow 2180323 White...
-
Page 15: Air Flow Parts
For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2196122 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2186800 Harness, Fan Evaporator, And... -
Page 16: Control Parts
For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 Illus. Part DESCRIPTION 2200134 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Light Switch 2161461 Thermostat (FC) 2188159 Adaptive Defrost Control 489398 Screw (2) CONTROL PARTS (White) (Almond) Illus. Part DESCRIPTION... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) (Black) (Biscuit) 4398219... - Page 18 For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 Illus. Part DESCRIPTION 486692 Speed Nut 1108179 Fan, Blade 2198175 Condenser Assembly 489464 Screw 2155658 Clip, Wire 489099 Screw 934011 Clip, Tube (3) 2161302 Sleeve 2158826 Dampener 2162358 Cover 2183456 Overload 2183454 Relay 2169137 Capacitor...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) (Black) (Biscuit) 4398219... - Page 20 ICEMAKER PARTS For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 (White) (Almond) Illus. Part 489084 Screw 2196157 Fitting, Water 628379 Clip, Fuse 2181940 Tube, Water 489478 Screw 2182106 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover 488649 Screw 628228 Mold & Heater...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25QGWH02, KSRS25QGAL02, KSRS25QGBL02, KSRS25QGBT02 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch-Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz. Spray Can) 350930 Enamel, White (13 Oz.
