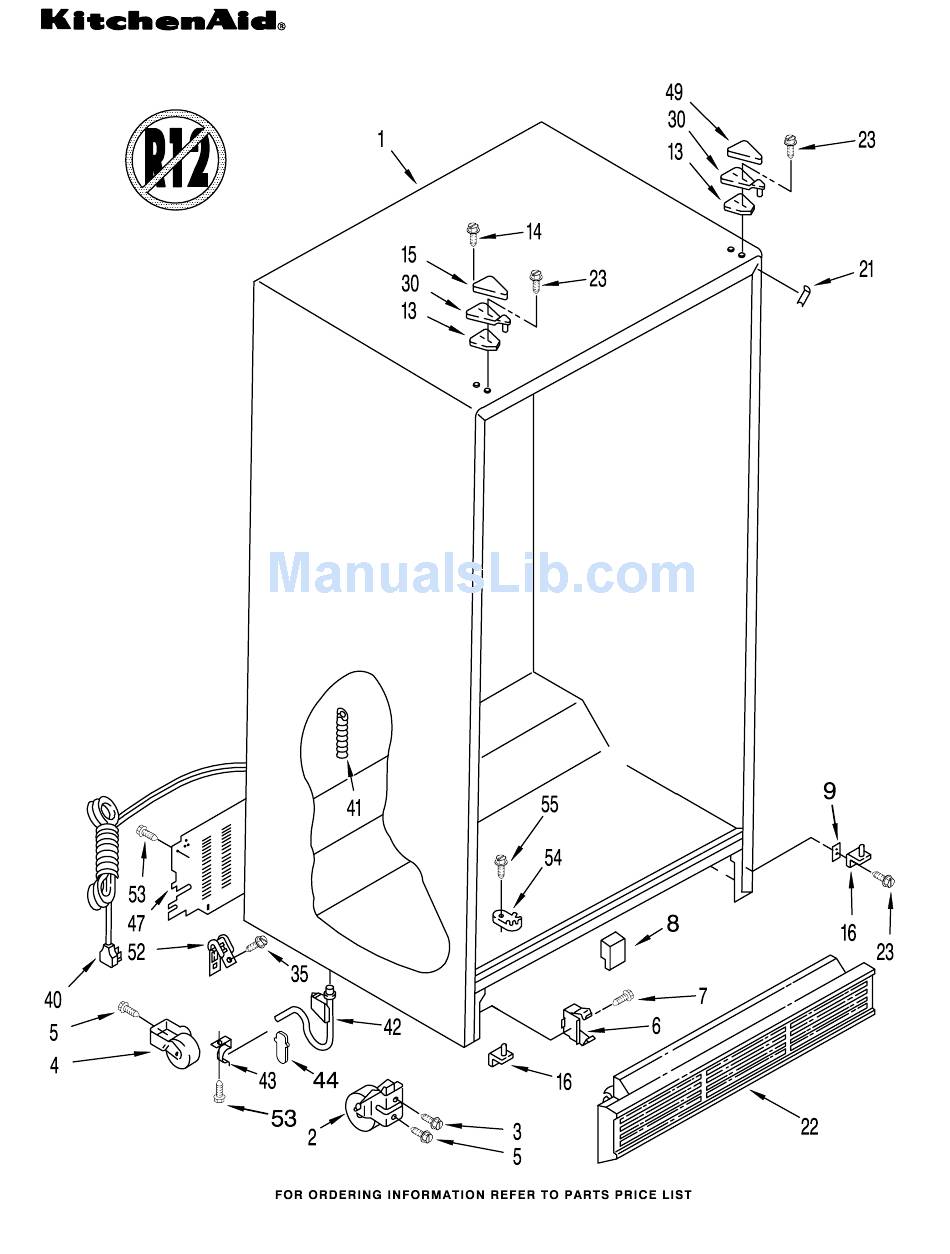

FREEZER DOOR PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) 4379750...
Page 14
FREEZER DOOR PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2177181 White 2177223 Almond 1107215 Handle Assembly 1107341 End Cap (2) 489084 Screw 1107651 Spacer, Handle 489075 Screw 2171070 Shelf Bin (4) 2177289 Door Gasket, Magnetic (Service) Insert, Handle...
DISPENSER FRONT PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) 4379750...
Page 16
DISPENSER FRONT PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 983697 Bearing, 2162361 Switch (4) Housing, Dispenser Lever (3) 2147164 Insulator, Control (Not A 983696 Spring, Lever (2) Bracket Servicable Item) 2147165 Shield, Wiring 2147163 Bracket, Control 488687 Screw 488500 Screw...
Page 17
UNIT PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) 4379750...
Page 18
UNIT PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488649 Screw 2169443 Compressor 486692 Speed Nut 983659 Spring−Tube (Includes Items 1108179 Fan, Blade 2150347 Union 12, 13, 15, 17, 2164504 Condenser 27, 38 & 56) Assembly (Also Order Following Parts Not Illustrated...
ICEMAKER PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) 4379750...
Page 20
ICEMAKER PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 2155294 Tube, Water 1106508 Seal, Gasket 489242 Screw 2002182 Valve, Solenoid 627018 Nut, Compression 2171943 Tube, Water Inlet 489385 Tube Clamp...
Page 21
AIR FLOW PARTS For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part DESCRIPTION 2155594 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 489176 Screw 2176072 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 1115381 Duct, Icemaker 2161478 Harness, Fan Evaporator, And Heater, Bi−Metal...
Page 22
PARTS NOT ILLUSTRATED For Models: KSRS25QDWH00, KSRS25QDAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt. Uncut) Customer Touch−Up Material 479502 Tape, Vinyl 799344 Enamel, White...
