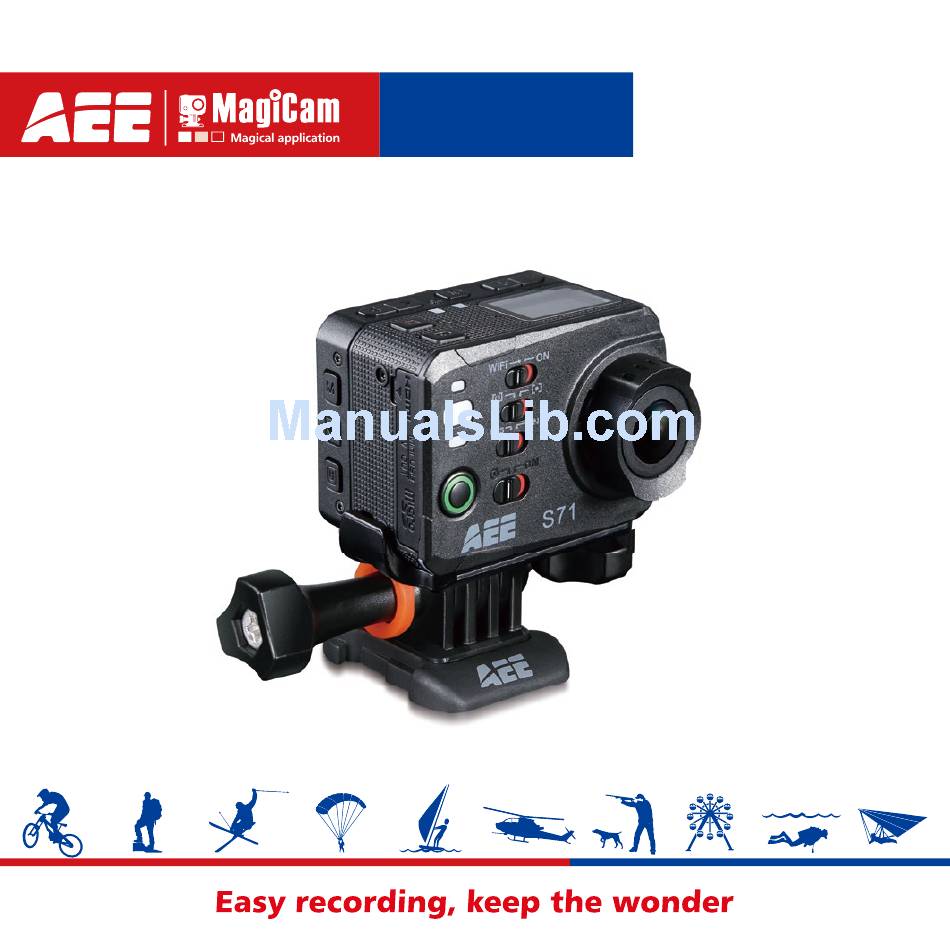

AEE S71 MagiCam Manual

Compact high-end hd digital camera
Hide thumbs Also See for S71 MagiCam:
Table of Contents

Advertisement

Quick Links

See also: User Manual
S71

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S71 MagiCam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEE S71 MagiCam

Summary of Contents for AEE S71 MagiCam

  • Page 3: Table Of Contents

    Contents Precautions ...............1 Preface................2 Warranty ................3 Overview................3 Main functions and features ..........5 List of accessories ..............8 Component guideline .............10 Front view .................. 10 Rear view .................. 11 Description of indicators ............12 Preparations before use ..........13 Charging ..................13 Installing the Battery ..............
  • Page 4 Video recording ..............21 Basic operations of video recording .......... 21 Parameter setting for video recording ........23 • Only video recording ................23 • Time Lapse ....................23 • Resolution setting ..................24 • Auto video ....................24 • View angle ....................25 • Bitrate ......................26 •...
  • Page 5 • Display time .....................33 Other basic setting ............34 • Warning tone ....................34 • Status indicators ..................35 • OSD ......................35 • Auto to standby ..................35 • TV output format ..................36 • Format......................36 • Recover factory setting ................36 Playback ................37 Operating procedure for playback ..........37 Delete files .................
  • Page 6 Wi-Fi Based Remote ............56 Guide for Components .............. 56 Startup ..................58 Pairing ..................58 Specifications ................61 Precautions ................61 Accessory application ...........63 Water-proof housing and Moisture-proof foam ......63 Mount plug bracket components ..........66 Use convex sticker and flat sticker ..........66 Specifications ..............68 Power Supply ..............70 Precautions for the Waterproof housing ......71...

  • Page 7: Precautions

    Precautions When using the S71 video camera, adhere to the following precautions: 1. Do not drop, knock or shake the video camera. 2. Do not put the video camera close to an object that generates strong magnetic field, such as a magnet or a motor. Do not put the video camera close to an object that emits powerful radio waves, for example, an antenna.

  • Page 8: Preface

    S71 video camera. Before using the S71 video camera, read and understand this manual carefully and keep it properly for future use. Designed to meet the professional requirements, AEE S71 video camera will serve you in a long term.

  • Page 9: Warranty

    Warranty This product has been certified by certification bodies for compliance with related safety regulations and specifications issued by the federal communications commission (FCC) and council of Europe (CE).

  • Page 10: Overview

    Overview The S71 video camera is a compact high-end HD digital camera intended for professional applications. It provides the following functions: ● Performs industry-leading HD digital shooting. ● Stores voice data. ● Displays images in real time. ● Performs video recording.

  • Page 11: Main Functions And Features

    Main functions and features ● Provides 147° wide-angle f/2.7 lens. ● Provides a special-purpose HD lens, which supports 4K, 2.7K, 1080P, 960P, and 720P HD video recording. ● Takes 16M pixels pictures in 4608×3456 resolution. ● Wi-Fi function and more App application .
  • Page 12 ● Provides better video effects in multiple video output modes (NTSC system): (4096×2160) 12 frames / second 4K Cinema ) 15 frames / second 3840x2160 ) 24 frames / second 2.7K Cinema 2704x1440 ) 30 frames / second 2.7K...
  • Page 13 ● Built-in microphone adopts dual-Mic design to achieve stereo and high-quality recording effect. ● All-round highlight status indicator. ● Built-in G-Sensor can function as automobile black box. ● Supports connecting to an external microphone (special-purpose microphone only). ● Provides a 1/4-inch general-purpose interface to facilitate extension of accessories.

  • Page 14: List Of Accessories

    List of accessories S71 main unit TFT display Remote Control (Optional) Water-proof housing Waterproof housing rear Lithium-ion battery case Back clip Power supply terminal Plug bracket unit (Optional) (Optional)
  • Page 15 Flat sticker Convex sticker Vertical-horizontal joint Extended adjusting bolt Moisture-proof foam USB data cable unit (Optional) Waterproof plug Cloth bag Hand strap (Optional) (Optional) (Optional) CD-ROM User manual (Optional) The actual items may be different from the pictures. Package is...

  • Page 16: Component Guideline

    Component guideline Front view 1. Wi-Fi key 8. Power on/off key 2. Wi-Fi status indicator 9. Battery lock 3. Light meter mode key 10. Lens 4. Recording status indicator 11. Speaker 5. Charging status indicator 12. Recording Status Indicator 6.

  • Page 17: Rear View

    Rear view 22 23 15. Charging status indicator 25. LCD segment display 16. Recording status indicator 26. Microphone 17. Up button 27. Shutter button 18. Down button 28. Stop button 19. OK button 29. Mini HDMI interface 20. Left arrow button 30.

  • Page 18: Description Of Indicators

    Description of indicators Green Blue Position indicator indicator indicator Front cover(1) Front cover(1) top cover(1) top cover(1) Front cover(1) TFT display each(1) TFT display(1) bottom side(2) Status Startup Stay on Video Flash slowly recording Audio Flash slowly recording Photo...
  • Page 19 LCD segment display 1080P- 50 100-088 2H30 Icon Functions Recording mode Shooting mode 1080P-50 Recording resolution 16M 12M 8M Shooting resolution 100-088 Number of recorded files 00:00:01 Recording timer 2H30 Remaining recordable time 1888 Remaining shots W M N S...

  • Page 20: Preparations Before Use

    Preparations before use Charging Start up the unit to check the battery power. If the battery level is low, charge it. Use the supplied power adapter or USB port of a PC to charge S71: USB interface power adapter...

  • Page 21: Installing The Battery

    Installing the Battery 1. Before Installing the battery, ensure that the battery "lock key" at the bottom of S71 is unlocked. 2. Push the battery into the battery slot completely as below: Battery lock...

  • Page 22: Install Tft Display

    Install TFT display S71 supports external dedicated 2″ TFT display, which can perform Setup, Playback and Delete, etc. on the camera to preview or play back the video. Install the display as shown below:...

  • Page 23: Insert And Remove The Memory Card

    Insert and remove the memory card S71 supports external TF card up to 64G. Though all SD cards above Class 6 can be used on S71, high-speed card is recommended to perform high-definition shooting. When shooting during dynamic motion, brand SDHC cards are recommended for use in order to ensure smooth shooting.

  • Page 24: Startup

    Startup Turn the power key to "ON" to turn on S71: Power key After installing S71 into the waterproof case, you can long press the Shoot key and Wi-Fi key simultaneously for 5s to turn it on. Similarly, you can long press the Shoot key and Wi-Fi key simultaneously for 5s again to turn off S71.

  • Page 25: Language

    Language 1. Press "M" button to enter the camera setting menu; 2. Press "-" / "+" button to select " "; 3. Press “<”/“>” button to select " " option and press "OK" button to confirm; 4. Press "<" / ">" button to move the cursor to the language type to be modified.

  • Page 26: Select Light Metering Mode

    6. Press "M" button to exit the menu and return to recording standby mode. Use "<" / ">" button to select the item to the left / right, and use "+" / "-" button to select the item above/below of the selected item.

  • Page 27: Start Video Recording Via G-Sensor Mode

    Start video recording via G-SENSOR mode G-Sensor key Turn G-Sensor key to "ON" so that S71 will actively sense the change of gravity. The system will automatically start video recording in case of shock or tilting, etc. Especially when this mode is applied in fixed...

  • Page 28: Video Recording

    Video recording Basic operations of video recording 1. Turn on S71 to enter recording standby mode; 2. Aim the lens to the subject and preview it in TFT display; 3. Press "Video recording" button once to start video recording;...

  • Page 29: Parameter Setting For Video Recording

    Parameter setting for video recording Perform the following steps to set the parameters for video recording 1. Press "M" button to enter the setting menu; 2. Press "+" / "-" button to select " "; 3. Press "<" / ">" button to move cursor to the sub-menu you want to configure, Press "OK"...

  • Page 30: Execution Mode

    • Execution mode Select the execution mode you want, Press "OK" button to confirm, Press "M" button again to exit the setting menu. : Video recording mode : Video-only mode : Voice recording mode : Time Lapse mode : Auto video mode •...

  • Page 31: Resolution Setting

    • Auto video mode If this function is enabled, the system will auto start recording videos according to the countdown time you set. : Start video recording 5 seconds after "video recording" button is pressed. : Start video recording 10 seconds after "video recording"...

  • Page 32: View Angle

    1080P(16:9) 24fps, 25fps, 48fps, 50fps 24fps, 30fps, 48fps, 60fps 1920x1080 960P(16:9) 48fps, 50fps 48fps, 60fps 1280x960 720P(16:9) 50fps, 100fps 60fps, 120fps 1280×720 • View angle Optional view angle: Broad, Medium, Narrow, Small. Broad Medium Small Narrow...

  • Page 33: Bitrate

    The function is unavailable in 4K Cinema, 4K, 2.7K Cinema and 2.7K modes. • Bitrate This unit provides two bit rate options: high " " and normal " ". (If high bit rate is selected, you will get clearer picture with increased file size).

  • Page 34: Audio Recording

    Audio recording Operating procedures for audio recording: 1. Enter audio recording mode and press "Video Recording" button to start audio recording. • The system will tick once to indicate the effective of aideo recording. Working mode Recording time (Audio recording)

  • Page 35: Exit Audio Recording Mode

    Exit audio recording mode: 1. Press "M" button to enter the camera setting menu; 2. Press "<" / ">" button to select " " and press "OK" button to confirm; 3. Press "<" / ">" button to select "...

  • Page 36: Photo Shooting

    Photo shooting Operating procedure for photo shooting 1. Turn on S71 to enter recording standby mode; 2. Cast the lens to the subject and preview it on the display; 3. Press the "Shutter" button once to switch the working mode to "photo shooting";...

  • Page 37: Parameter Settings For Photo Shooting

    Parameter settings for photo shooting Perform the following steps to set the parameters for photo shooting: 1. Press "M" button to enter the setting menu; 2. Press "+" / "-" button to select " "; 3. Press "<" / ">" button to move blue cursor to the sub-menu you want to configure, Press "OK"...

  • Page 38: Fast Shot

    • Single shot mode Take one photo when the photo shooting button is pressed. • Fast shot mode S71 takes several photos within one second. : 3 photos in one second; : 6 photos in one second; : 10 photos in one second;...

  • Page 39: Display Time

    • Photo resolution Three optional resolutions include: : 16.0M (4608×3456 4:3) : 12.0M (4000×3000 4:3) : 8.0M (3200×2400 4:3) • Display time You can choose to display or not display the photo shooting time at the bottom right corner of the photo.

  • Page 40: Other Basic Setting

    Other basic setting 1. Press "M" button to enter the camera setting menu; 2. Press "-" / "+" button to select " "; 3. Press "<" / ">" button to move blue cursor to the sub-menu you want to configure, Press "OK" button to confirm;...

  • Page 41: Status Indicator

    • Status indicator Activate or deactivate the status indicators. : Off (All OFF) : Two (Only 2 indicators of S71 ON) : On (All ON) • On screen display Display or hide the recording icons or information on the display screen.

  • Page 42: Tv Output Format

    • TV output format This setting is designed to ensure that the frame rate of video recording matches with the playback format of on TV. Please select NTSC in North America. Please select PAL in non-North America areas. • Format This option allows all the files in the memory is cleared.

  • Page 43: Playback

    Playback Operating procedure for playback 1. Press the "playback" button to enter playback interface; 2. Press "Video recording" button to select the file type and press "OK" button to confirm; : View video files : View photo files : View all video/audio/photo files 3.
  • Page 44 • When reviewing photos, the functions of various buttons are listed as below: Button Functions Button Functions Zoom out; Zoom in; In z oo m -in mo d e , wh e n In zoom-in mode, when you you press "OK", you can press "OK", you can press "+"...

  • Page 45: Delete Files

    • When playing audio files, the functions of various buttons are listed as below: Button Functions Button Functions Decrease volume; Increase volume; Press it again to return to Play/pause. the playback interface; Delete files 1. Under file playback or thumbnail preview mode, move the cursor to the file icon you want to delete;...

  • Page 46: File Protection And Unlocking

    File protection and Unlocking 1. Under file playback or thumbnail preview mode, move the cursor to the file icon you want to protection; 2. Press "M" button to enter file operation mode and move the cursor to "file protection";...

  • Page 47: View Video / Photo On Hdtv

    4. Double click the "removable disc" icon; 5. Enter the "removable disc" and copy/move the file to the PC’s hard disk. View video / Photo on HDTV The recorded files can also be played on TV or display with HDMI interface.

  • Page 48: Wi-Fi

    By now, the Wi-Fi APP is already upload to iphone APP store and google play store, customers can freely download it. 1. Android user: Entering the google play store, search “AEE APP” (quotation marks is needed), download and install it, following the user manual to connect the Wi-Fi and operate.
  • Page 49 2. Turn on your camera,wait until the blue Wi-Fi indicator flashes slowly. Search for Wi-Fi hot spot on a mobile receiving device,select "AEE Magicam" network and connect it (default password: AEE12345). Then the camera and the mobile device are connected.
  • Page 50 In case of Wi-Fi connection failure, the icon " " will appear. Select "Yes" to try to connect again. If you select "No", click the icon " " to enter the WLAN settings interface or click the icon "...
  • Page 51 Total number of files Playback mode Wi-Fi status Maximize preview Battery status Current state icon / Start / Remaining recording time or Stop button Parameter settings number of shots Recording Duration Zoom out Video recording mode Zoom in Single shot mode...

  • Page 52: Operating Instructions For Wi-Fi Control Interface

    Operating Instructions for Wi-Fi Control Interface 1. Video Recording Click the Video recording mode icon " ". The current state icon will dispaly as " ", click it to start / stop video recording. Click the icon " " to maximize the preview (See Fig. 3).
  • Page 53 2. Single shot Click the Single shot mode icon " " ,it will turn blue " ". The current state icon will dispaly as " ", click it to take one picture. Click the icon " " to maximize the preview (See Fig. 4).
  • Page 54 3. Fast Shot Click the Fast shot mode icon " " ,it will turn blue " ". The current state icon will dispaly as " ", click it to take pictures within one second. Click the icon " " to maximize the preview (See Fig. 5).
  • Page 55 4. Playback Click the icon " " to enter the interface shown in Fig. 6 to remotely play videos and photos. abc Slide the icon " ". If you 1.Camera Storage select "Camera Storage", you can 2.Mobile Device Storage replay the files stored on the camera.
  • Page 56 Click on the thumbnail to view it in large preview. You could slide left and right to select the desired file. Photo preview Video Preview Click the icon " " to return to the thumbnail preview interface. Click the icon "...

  • Page 57: Download Files To Mobile Device

    Download Files to Mobile Device Return to the thumbnail preview interface and click the icon " " to enter the Download interface. Click the desired files to download them to your mobile device. Files downloaded Files in waiting Files in downloading...
  • Page 58 Click on the thumbnail to view it in large preview. You could slide left and right to select the desired file. Photo preview Video Preview Click the icon " " to view the current file information. Click the icon "...

  • Page 59: Trim Videos

    Trim Videos When viewing the downloaded files on the mobile device, you can click the icon " " at the bottom of the screen to enter the video trimming interface shown in the figure below: Menu Current frame Storyboard...

  • Page 60: Change Wi-Fi Connection Name And Password

    On the computer, double click "My Computer" to find and enter the removable disk, and then open the " " WiFi.conf file in the folder "MISC". Find "AP_SSID=AEE Magicam". Change the content following the equal sign "=" to your desired name and save it.
  • Page 61 If the TF card is formatted, you need to reconnect AEE S71 to your camera in order to find the folder "MISC" and change the name and password. In case of synchronous operation of the camera and the Wi- Fi based remote control, S71 will give priority to the operation command from the camera.

  • Page 62: Wi-Fi Based Remote

    Wi-Fi Based Remote Guide for Components Power Indicator (Red) Wi-Fi Indicator (Blue) Wide view Button Power/Record Button Medium view Button Narrow view Button Shutter Button Small view Button Stop Button USB Port Buttons Functions Long press it for about 5s to turn on/off the Wi-Fi based remote control.
  • Page 63 Under the video recording mode, press it once to switch the current mode to the photographing mode. Under photographing mode, press it once to take a photo. Long press it for about 2s to enter the mode selection state.

  • Page 64: Startup

    Startup Long hold the “Power / Record” button for about 5s to start up the Wi- Fi based remote control. After startup, the screen will display the battery icon “ ”; if the battery icon is empty, it indicates that the battery level is low and charging is needed;...
  • Page 65 WAIT HOST PBC 4. Press the “Stop” button of the camera once, and the screen of the Wi-Fi remote control will display the icon below: PRESS CONNECT 5. Press the “Stop” button of the Wi-Fi remote control for connecting,...

  • Page 66: Specifications

    Specifications Description Specification Charging Time via USB 2h (max.) Service time of fully charged battery 5h (max.) Battery capacity 500mAh Power consumption 0.30W-0.35W IP rating IP66 Remote control distance 100M Specification of USB USB 2.0 Overall dimension 77×46×19mm Weight 59g Working temperature -10°C~+50°C...
  • Page 67 2. The remote control should not get close to objects with high- intensity magnetic field such as magnet and electric motor, or to objects that send out strong radio waves such as antenna. Strong magnetic field may result in failure of the remote control.

  • Page 68: Accessory Application

    Accessory application S71 is suitable for handhold use or hand-free use at most places by using appropriate accessories. S71 fitted with water-proof housing can be used to record videos underwater. Water-proof housing and Moisture-proof foam S71 water-proof housing up to IP68 can protect the camera 100 meters underwater.
  • Page 69 Follow these steps to assemble the waterproof housing rear case: You can choose different waterproof cover in accordance with your own demands: Standard Waterproof Waterproof Cover Waterproof Cover with Cover with Hole Microphone H i g h w a t e r p r o o f...
  • Page 70 The plug bracket can fix S71 water-proof housing firmly onto the sticky seat, as below:...

  • Page 71: Mount Plug Bracket Components

    Mount plug bracket components The plug bracket can fix S71 firmly onto the sticky seat. Use convex sticker and flat sticker S71 comes with sticker fitting and flat sticker for installation on different surfaces.
  • Page 72 You can easily attach the camera onto helmet, vehicles or the surface of other devices. M08 convex sticker M15 flat sticker Precautions for the use of 3M double-sided foam tape: 1. Before fixing 3M double-sided foam tape, please select an appropriate curved or flat surface where the tape can fit with the surface.

  • Page 73: Specifications

    Specifications Description Specifications Visual angle 147° Aperture f/2.7 Digital zoom ratio 10X Pixel 16 million Video recording format MP4 Audio recording format WAV Photo format JPG (JPEG) Wi-Fi transmission distance About 100 meter (MAX) 128MB Flash Memory (not for photo Storage medium shooting or video recording);...
  • Page 74 Maximum audio recording time About 3.0 hours (Max.) TFT Display 2.0" true color TFT display (16:9) LED Dot-matrix screen 90×64mm FSTN (lattice screen) Operating system: Windows XP SP2 / Vista Operating platform requirements or above / Mac OS; Storage temperature -20°C ~ 60°C Operating temperature -10°C ~ 50°C...

  • Page 75: Power Supply

    Power Supply The S71 video camera uses a power unit certified by the following authorities. GS mark UL mark C-TICK mark CE mark Germany Power U.S. Power Australia Power E.U. Power Certification Certificatation Certification Certification CCC mark PSE mark...

  • Page 76: Precautions For The Waterproof Housing

    Precautions for the Waterproof housing The waterproof housing is a precision component. When using the waterproof housing, adhere to the following precautions: 1. Do not randomly remove or change the O-ring, key, and lens cover. Otherwise, the waterproof performance deteriorates.

  • Page 77: Tips

    Tips 1. When the unit is in used for long period, it is natural that its surface temperature will rise. 2. If you will not use the unit for long period, it is suggested that you charge it once every 6th month to maintain the performance of battery.
  • Page 78 9. Hot plugging is not supported; in case of white screen, please restart the camera to return to normal.

  • Page 79: Fcc Notices

    FCC Notices 1.The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. 2.This device complies with Part 15 of the FCC Rules. (1) This device...
  • Page 80 - Reorient or relocate the receiving antenna.
