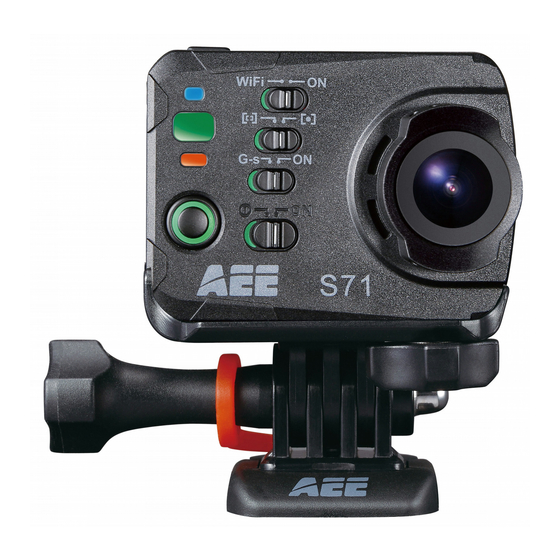

AEE S71 Quick Start Manual

V
ISIT AEE.COM TO KEEP UP TO DATE WITH CAMERAS,
ACCESSORIES AND COMMUNITY VIDEOS.
Quick Start Guide & Warranty
F F
OLLOW US ON ACEBOOK TO BE THE FIRST IN THE KNOW
ABOUT UPCOMING EVENTS AND CONTESTS.
S Y
UBSCRIBE TO OUR OUTUBE CHANNEL FOR VIDEOS AND
COMMUNITY VIDEOS.
www.aee.com | +1 877-414-7993 | usatechsupport@aee.com
Warning! What's in
the box?
P
LEASE PLAY RESPONSIBLY.
S71 Camera Pivot Arm
TFT Display Quick Release Mount
Waterproof Housing USB Cable
E P
VERY SPORT AND ACTIVITY HAS RISK OF INJURY. LEASE REMEMBER TO
Lithium Battery Camera Pouch
USE ALL NECCESARY SAFETY GEAR WHEN RECORDING YOURSELF OR
Curved Adhesive Mount Anti-Fog Inserts
OTHERS.
Flat Adhesive Mount Extended Mount Fastener
Remote Control
aee.com for more accessories, and download AEE Apps at the
Apple Store and Google Play.
Set Up

Charging

Installing the Battery

the Battery
Remove Battery from bag.
USB:
Connect USB directly to camera and any USB port on a computer.
Slide Battery into back of S71.
See diagram.
Before Installing the battery, ensure that the battery "lock key" at
USB interface
the bottom of S71 is unlocked.
After Installing the battery, Push "lock key".
PC USB interface
Blinking red light indicates camera is charging.
Solid red light indicates camera is fully charged and ready to use.
Set Up Set Up

Installing TFT Display

Installing SD Memory Card

Remove TFT display from bag. The S71 camera requires
Line up double prongs on back a Class 10 SD memory
of TFT display and Camera. card.
Insert double prongs into Pull open rubber protec-
camera and snap into place. tion on side and insert
card into SD card slot.
Once connected, TFT display can control camera options and The SD card slot is located next to USB for charging and data
play/view videos and photos. transfer.
Power Up
Turning on the S71
Switch the "Power Key" to the "ON"
position.
Power Key
Stop Record
While S71 is in Waterproof Housing
Shutter
Case: Press and hold top Shutter and
Stop Record buttons to power On/Off.
(Camera in power-on state.)
