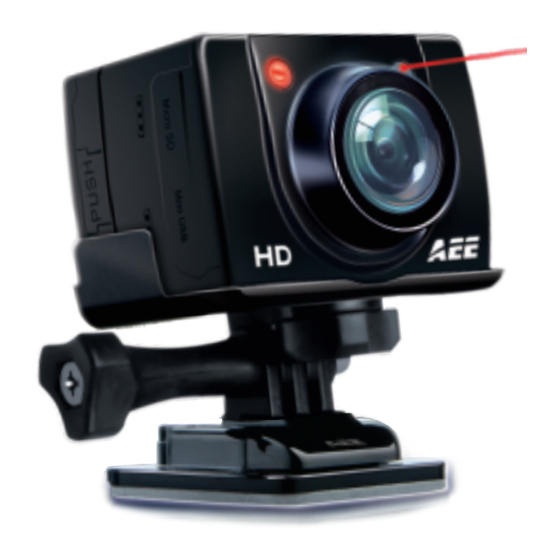

AEE sd20 User Manual

Action camcorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sd20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEE sd20

Summary of Contents for AEE sd20

  • Page 3: Table Of Contents

    Contents Precautions Preface Product Certification Product Overview Product Structure........Functions Features 6 - 7 Installation Operating Instructions Parameter Settings Operations File Storage And Play Adapter Standard Accessories Optional Accessories Specifi Cations Parameters Fcc Notices Notices for Waterproof Casing..
  • Page 4 SD20 or cause damage to image and audio data. 3.Do not expose the camera to high temperature or sunlight direct. 4.Keep the Micro SD card away from the strong magnetic field of TV, speaker, or magnet.

  • Page 5: Preface

    Preface Thanks for purchasing AEE hands-free mini high-definition digital camera SD20. With small size and integrated design, hands-free SD20 is easy to operate. Supported by high-definition and dynamic image capturing technology, it can record real scenes and various activities anytime...

  • Page 6: Product Overview

    Product Over view As a multifunctional non-handheld high- definition digital sports video camera, this product can perform many leading functions such as high-definition digital photographing, voice storage, real-time display, voice-activated video recording, photo shooting, time display, remote control, digital zoom, TFT color screen, multi- functional keys, laser indicating, high-speed USB data transmission, HDMI high-definition output function, low power prompt, memory card space...

  • Page 7: Product Structure

    Product Structure (outline drawing) LCD segment screen TFT display screen Buzzer Shutter MENU key SD card slot VOX switch Right key Up key USB output interface Left key Down key Record Green indicator of Recall key video/voice recording OK key Power switch Push button of TFT Microphone...
  • Page 8 Camera Lens Indicator (red) of video recording/shooting Laser transmitter AV output interface HDMI output interface Thread interface...

  • Page 9: Functions Features

    Functions & Features >170°extra-large wide-angle lens Aperture f/2.8 > 5 . 0 m e g a h i g h - d e f i n i t i o n c a m e r a , s u p p o r t i n g 720P/1080P high-definition video recording;...
  • Page 10 >High-quality color fidelity, clearer and more realistic image; >It can remote control video recording, stopping and shooting of SD20 by using wireless remote control; unique code pairing function, avoiding interference of other remote control; >Recording MOV videos, to be directly played by PC or uploaded onto video websites;...

  • Page 11: Installation

    Installation 1:SD20 can be either handheld or realized non-hand-held use combining with various non-hand-held accessories. The camera can be installed in where you want; or the camera can be installed in the water by the waterproof case to photograph scene in the water.
  • Page 12 2.Installation of remote control There is a separate remote control attached to SD20. Please install the remote control onto the correct position based on the accessories below: Velcro Clip Binding tape (optional...

  • Page 13: Operating Instructions

    LCD segment screen. The icon will be bright constantly after the system coming into play; and the disappearance of the icon means SD20 is shut down or enters the standby state; D.Video recording duration: Duration of the current video recording file is displayed on the middle line of LCD segment screen, such as “...
  • Page 14 E.Indication of battery power: The battery power icon “ ” can be viewed on the bottom left corner of LCD segment screen and it will indicate the current battery power after starting up. More black grids indicate the higher power, and it is lower conversely.
  • Page 15 Note: Before use, please check if there is enough battery power. In case of a low battery power, please charge SD20 via the attached power supply or USB cable. The “Red Indicator of Working/Charging ” will twinkle slowly in charging and ”...

  • Page 16: Parameter Settings

    The yellow number indicates the current cursor position. To press “ <” or “ >” key can move the cursor and select date or time. Press “ OK” key to confirm, and this number will turn red and value of date or time can be changed. Then press “...
  • Page 17 “ Record” key again, the system will stop and save the current audio file recorded, the green indicator is off and the red indicator remains bright (the corresponding operating prompt is on LCD segment screen), and it returns to the preview mode. b.The voice recording process only responds to operations of “Record”, “Shutdown”...
  • Page 18 5 minutes or 10 minutes. In case of no any mission and operation after selecting, the system will start timing and SD20 will turn off input and output to enter the standby mode at the end of the time set. If there is any operation in timing, the system will re- time.If the video recording or shutter is operated in the...
  • Page 19 SD20 will be waked up. The default standby time is 5 minutes when selecting to restore the factory default; e.TV output format: NTSC or PAL; the video format outputted to TV can be selected. If the selected format is changed, please unplug the AV cable and then reinsert it to update the parameters;...

  • Page 20: Operations

    Note: Please select branded Micro SD card such as SD card of Toshiba and Kingston 2.Turn the power switch to “ON” to turn on SD20, and the red indicator will be lightened and SD20 will enter the preview mode. Note: a.In case of low battery power, you will find the battery...
  • Page 21 “Low Battery” on TFT display screen until SD20 is turned off or auto enters standby mode; c.If the memory space gets full in video recording, the system will save the current file recorded, give the message “...
  • Page 22 “>”or “<” key to move the cursor to “ ”, select the menu “Three Photos Continuous Shooting”, and press “OK” key to confirm. Press “M” key to exit the setup interface after setting. Press “Shutter” once at this time, and SD20 will continuously shoot three photos.
  • Page 23 10s. Press “ M” key to exit the setup interface after setting the delay time. Press “Shutter” once at this time, and SD20 will start the timer and shoot a photo at the end of the delay time. Note: a.If the memory space gets full, the system will give the...
  • Page 24 6.File recall You can view the audio files, video files and photo files on SD20. Press “ ” key to enter the recall selection interface and press it again to exit. Select the menu “AV File” to view the audio and video files or select the menu “Photo File”...
  • Page 25 b.Video file When playing a video file, you can press the following keys to execute operations: “+”: Increase the volume; “-” : Reduce the volume; “<”: Fast rewind; “>”: Fast forward; ” : Press it to pause playing and press it again to “...
  • Page 26 (3)If the DPOF information of the Micro SD card has been set by another camera, please do not insert this card into SD20 to reset the DPOF information, or the DPOF information may be invalid or covered. Sometimes, special photo types make it impossible to set the DPOF...
  • Page 27 SD20: 1.Turn off SD20, press and hold “ Record” key, turn the power switch to “ ON” , and then release ” Record” key. Press both “Record” and “Stop” key on the remote control once within 3s to finish the remote control code pairing process.
  • Page 28 8.Standby mode: A.Non-voice control standby: Push the VOX switch to “OFF” and turn the power switch to “ ON” , the system will start working and it will enter preview state after finishing initialization. In case of no any mission and operation, the system will auto enter standby power-saving mode at the end of the auto standby time set.
  • Page 29 Note: After connecting with audio and video display device, TFT screen on SD20 and the voice will be turned off, and the audio and video will be displayed on the display device. L C D s e g m e n t s c r e e n o n S D 2 0 w i l l d i s p l a y t h e corresponding function operations normally.
  • Page 30 SD20 memory and the Micro SD card can be read (at this time, LCD segment screen will display the USB connection state icon); c.SD20 may be in abnormal state if the USB cable is inserted or unplugged improperly when connecting, and re-start to recover.
  • Page 31 13.Prompt of laser light a.After starting up, long press “ Record” key for 3s in any state, the system will lighten the laser light; b.Long press “ Record” key for 3s when turning on laser light, the system will turn off the laser light; c.The laser light turning on/off also can be operated in standby state;...

  • Page 32: File Storage And Play

    SD20 USB Cable on PC Note: (1) Please turn off the SD20 before inserting or unplugging the USB cable. (2) Turn the power switch to “OFF” before charging SD20.The red indicator will twinkle slowly in charging. (3) You can directly copy or cut the recorded files to your...
  • Page 33 HDMI Cable and AV CableYou can also use the HDMI cable or AV cable to connect SD20 to a TV or monitor with HDMI interface, in order to play the recorded files . TV / Monitor AV Interface on SD20...

  • Page 34: Adapter

    Adapter This product always conforms to the authenticated AC adapter. The adapter should be marked one of the following: NOTICE: When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply.

  • Page 35: Standard Accessories

    Standard Accessories Main body TFT display Remote control Waterproof screen case Battery Accessory for Flat accessory Bracket flat installation AV Cable USB Cable Pouch Chain for main unit User Manual Note: (1):The actual items may be different from the pictures. Package is subject to change without prior notice.

  • Page 36: Optional Accessories

    Optional Accessories Portable power supply Portable power supply (2500mAH) (850mAH) Accessory for installation Accessory for installation onto bicycle onto bicycle Accessory for soft plastic Clip for main unit flat installation Accessory for installation HDMI cable onto helmet top...

  • Page 37: Specifi Cations Parameters

    Specifications & Parameters View Angle Pixel 5.0 Mega CMOS SENSOR (2592*1944) Battery 1000mAh Lithium Battery Power Consumption 350mA@ 3.7V (MAX) Video Recording Duration About 2.5h Voice Recording Duration About 3h Voice Control Standby Duration About 250h Storage Temperature -20°C ~ 60°C Operating Temperature -10°C ~ 50°C Operating Humidity...

  • Page 38: Fcc Notices

    FCC Notices 1. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. 2. This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
