Contents Precautions....................2 Preface ......................2 Warranty ......................2 Main Functions and Features ................3 List of Accessories ..................4 Component Guideline ..................5 Preparations Before Use ................8 Video Modes ....................10 Photo Modes ....................13 Settings......................14 Playback ......................15 Wi-Fi ......................18 Accessory Application..................24 Specifications ....................25 Tips ......................26... -
Page 2: Precautions
7. Store the video camera in a cool, dry, and dust-free place. Preface Thank you for purchasing S50+ series compact high-definition (HD) digital video camera, which has the following characteristics: • Ultra small size and compact structure • User-friendly interfaces... -
Page 3: Main Functions And Features
Main Functions and Features aee.com • Provides 150° wide-angle f/3.0 lens. • Provides a special-purpose HD lens, which supports 1080i, 1080P, 960P, and 720P HD video recording. • Takes 8M pixels pictures in 3200×2400 resolution. • Wi-Fi function and more App application . • Performs 10X digital zooming. • A new generation of image sensor Exmor R CMOS, photosensitivity doubled. Perfectly show the image details even in low-light environment. -
Page 4: List Of Accessories

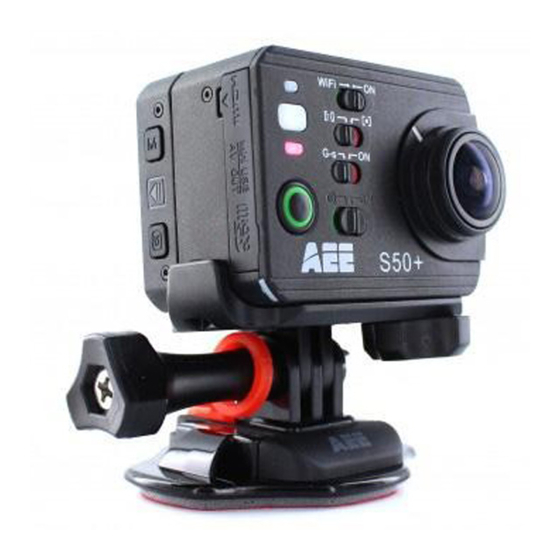

List of Accessories aee.com S50+ Camera TFT display Water-proof housing Plug bracket unit Waterproof housing rear case Lithium-ion battery Vertical-horizontal joint Curved Adhesive Mount Flat Adhesive Mount USB data cable Quick start guide CD-ROM Moisture-proof foam Hand strap Cloth bag The accessories you've received may be slightly different from above. The package is... -
Page 5: Component Guideline
Component Guideline aee.com 22 23 1. Wi-Fi key 18. Down key 2. Wi-Fi status indicator 19. OK key 3. Light meter mode key 20. Left arrow key 4. Recording status indicator 21. Right arrow key 5. Charging status indicator 22. Recording status indicator 6. G-Sensor key 23. - Page 6 1. LCD Segment Display 1080P- 25 00:00:01 100-0088 2H30 1888 Video mode Capture mode Icon Functions Working mode (Video recording) Working mode (Photo shooting) 1080P-25 Video resolution Photo resolution 00:00:01 Recording timer 100-0088 Number of recorded files 2H30 Remaining recordable time 1888 Remaining shots View angle Wi-Fi Battery level...
- Page 7 2. Description of Indicators Red indicator Green indicator Blue indicator Position Front cover(1) Top cover(1) Top cover(1) Front cover(1) TFT display(1) TFT display(1) Status Bottom side(2) Flash once and then Startup Stay on Video Flash slowly recording Audio Flash slowly...
-
Page 8: Preparations Before Use
Preparations Before Use aee.com 1. Charging Start up the unit to check the battery power. If the battery level is low, charge it. Use USB cable to charge S50+: Power adapter Input: 100~240V 0.5A Output: DC 5V 2000mA 2. Installing the Battery a. Before Installing the battery, ensure that the battery "Battery lock" at the bottom of S50+ is unlocked. - Page 9 4. Insert and Remove The Memory Card S50+ supports external TF card up to 64GB. Though all TF cards above Class 10 can be used on S50+, high-speed card is recommended to perform high-definition shooting. When shooting during dynamic motion, brand SDHC cards are recommended for use in order to ensure smooth shooting. * Insert the memory card a. Ensure that S50+ is switched off.
-
Page 10: Cs Da
Video Modes aee.com 1. Basic Operations of Video Recording a. Turn on S50+ to enter recording standby mode; b. Aim the lens to the subject and preview it in TFT display; c. Press "Video recording" key once to start video recording; The system will tick once to indicate the effective of video recording, TFT display is shown as below for video recording:... - Page 11 3. Parameter Setting For Video Recording Perform the following steps to set the parameters for video recording: a. Press "M" key to enter the setting menu; b. Press "<" / ">" key to select " "; c. Press "+" / "-" key to move cursor to the sub-menu you want to configure, Press "OK" key to enter the sub-menu; d. Press "<" / ">" key to select the parameters you want; e. Press "OK" key to confirm; f. Press "M" key again to exit the setting menu. • Execution Mode - Video recording ( - Voice recording ( ); - Auto Video Mode ( ): If this function is enabled, the system will auto start recording videos according to the countdown time you set.
- Page 12 • Bitrate This unit provides two bit rate options: high " " and normal " ". (If high bit rate is selected, you will get clearer picture with increased file size). • 180° Photo Rollover When this function is activated, upright video file can be obtained when using S50+ to shoot video upside down. (The function is unavailable in 480P 100f/120f modes.)
-
Page 13: Photo Modes
Photo Modes aee.com 1. Basic Operations of Photo Shooting a. Turn on S50+ to enter recording standby mode; b. Cast the lens to the subject and preview it on the display; c. Press the "Shutter" key once to switch the working mode to "photo modes"; d. Press the "Shutter" key again to shoot one photo. The system generates will click to indicate completion and the system will return to photo shooting standby mode;... -
Page 14: Settings
Settings aee.com To set parameters, perform the following operations a. Press "M" key to enter the camera setting menu; b. Press "<" / ">" key to select " "; c. Press "-" / "+" key to move blue cursor to the sub-menu you want to configure, Press "OK" key to confirm; • Warning Tone Adjust the loudness or mute of buzzer. three modes are available: Off, Medium(50%) and Standard(100%). • Status Indicator Activate or deactivate the status indicators. three modes are available: Off (All OFF), Two (Only front cover and top cover) and On (All ON). • On Screen Display Display or hide the recording icons or information on the display screen. -
Page 15: Playback
Playback aee.com 1. Operating Procedure for Playback a. Press the "playback" key to enter playback interface; b. Press "<" / ">" key to select the file type and press "OK" key to confirm; : View video files : View photo files : View all video/audio/photo files c. Press "<" / ">" / "+" / "-" key to move the cursor to the thumbnail of the file you want to play back; d. Press "OK" key to enter the playback interface and press "OK" key to play it. When playing video files, the functions of various keys are listed as below: Functions Functions Decrease volume; Increase volume; <... - Page 16 When playing audio files, the functions of various keys are listed as below: Functions Functions Decrease volume; Increase volume; Press it to return to the file preview Play/pause. interface; 2. Delete Files a. Under file playback or thumbnail preview mode, move the cursor to the file icon you want to delete;...
- Page 17 4. View Video/Photo On HDTV The recorded files can also be played on TV or display with HDMI interface. Ensure that your camera is properly configured to NTSC (North America) or PAL (Non- North America) video format; otherwise, the video and images on S50+ cannot be properly displayed on TV. Use HDMI cable to connect S50+ to the TV set: This function is not available when opening Wi-Fi. 5. Upload Audio/Video/Photo Files to PC a. Use USB data cable to connect the camera to a PC; b. Switch on S50+;...
-
Page 18: Wi-Fi
Wi-Fi aee.com With integrated Wi-Fi module, S50+ can be connected with Wi-Fi remote control, smartphone or tablet PC to achieve remote control function. First please install appropriate APP software provided by AEE to your device. By now, the Wi-Fi APP is already upload to iphone APP store and google play store, customers can freely download it. 1. Wi-Fi Starting and Connection a. Push Wi-Fi key to "ON" to switch on Wi-Fi function:... - Page 19 1.Total number of files 8.Maximize preview 2.Wi-Fi status 9.Current state icon / Start / Stop button 3.Battery status 10.Parameter settings 4.Remaining recording time 11.Zoom out 5.Recording Duration 12.Zoom in 6.Video recording mode 13.Playback mode 7.Single shot mode 14.Fast shot mode In case of synchronous operation of the camera and the Wi-Fi based remote control, hosts will give priority to the operation command from the camera.
- Page 20 Single shot Click the Single shot mode icon " " , it will turn blue " ". The current state icon will display as " ", click it to take one picture. Click the icon " " to maximize the preview ：...
- Page 21 Playback Click the icon " " to enter the interface shown to remotely play videos and photos. Slide the icon " ". If you select "Camera Storage", you can replay the files stored on the camera. If you select "Mobile Device Storage", you can replay the files downloaded from the camera to the mobile device.
- Page 22 3. Download Files to Mobile Device Return to the thumbnail preview interface and click the icon " " to enter the Download interface. Click the desired files to download them to your mobile device. Files downloaded Files in waiting...
- Page 23 4. Trim Videos When viewing the downloaded files on the mobile device, you can click the icon " " at the bottom of the screen to enter the video trimming interface shown in the figure below: Save and share...
-
Page 24: Accessory Application
Accessory Application aee.com S50+ is suitable for handhold use or hand-free use at most places by using appropriate accessories. S50+ fitted with water-proof housing can be used to record videos underwater. Water-proof Housing and Moisture-proof Foam S50+ water-proof housing up to IP68 can protect the camera 100 meters underwater. In order to avoid and reduce the dewing on the glass of the water-proof house, we suggest inputting the moistureproof cotton inside the water-proof case in big temperature range environment. -
Page 25: Specifications
Specifications aee.com Description Specifications Visual angle 150° Aperture f/3.0 Digital zoom ratio Pixel 8 million Video recording format Audio recording format WAV Photo format JPG (JPEG) WIFI-Distance/Mobil Device 100 Meter (max.) Storage medium Up to 32GB external TF card Standard battery capacity 1500mAh Power consumption 600mA Recharging duration USB Cable: About 3.5 hours Maximum video recording time About 3.5 hours (Max.) Maximum audio recording time About 7.0 hours (Max.) TFT Display 2.0" true color TFT display (16:9) LED Dot-matrix screen 25 x 16mm FSTN (lattice screen) -
Page 26: Tips
Tips 1. When the unit is in used for long period, it is natural that its surface temperature will rise. 2. If you will not use the unit for long period, it is suggested that you charge it once every 6th month to maintain the performance of battery.
