Summary of Contents for McCulloch MC16H38ST

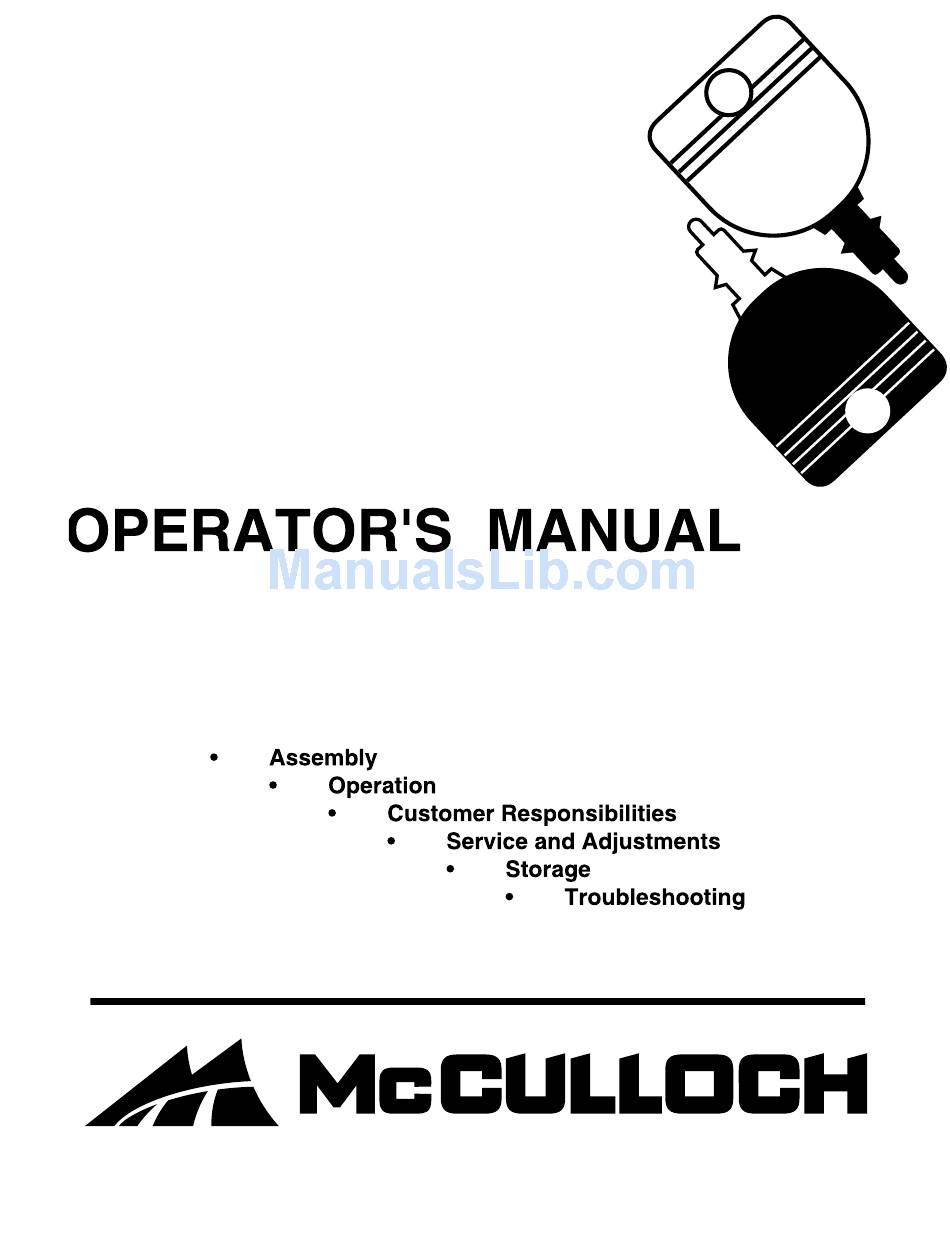

- Page 1 MODEL NO. MC16H38ST (96011024900) 16.0 HP 38 Inch Lawn Tractor www.mcculloch.biz 532 40 88-72 09.12.06 CL PRINTED IN U.S.A.
-
Page 2: Safety Rules
SAFETY RULES Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before WARNING: In order to prevent ac- cleaning the machine, removing the grass catcher, or... - Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. CHILDREN GENERAL SERVICE • Never operate machine in a closed are. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 1.25 Gallons and type: Unleaded Regular Should you experience any problem you cannot easily rem- Oil Type SAE 30 (above 32°F) edy, please contact your nearest authorized service center/... -
Page 5: Unassembled Parts
UNASSEMBLED PARTS Steering Wheel Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob Battery Steering Wheel Insert Steering Boot (2) Keps Nut 1/4-20 (2) Hex Bolts 1/4-20 x 3/4 Steering Wheel Steering Adapter Extension Shaft (1) Oil Drain Tube For Future Use Keys (2) Keys... -
Page 6: Assembly
ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. -
Page 7: Con Trols
ASSEMBLY DISCARD TER MI NAL SEAT PROTECTIVE CAPS KEPS TERMINAL HEX BOLT COVER SEAT PAN SHOULDER BOLTS 02617 02604 NEGATIVE (BLACK) POSITIVE (RED) CABLE CABLE FIG. 3 FLAT WASHER SEAT PAN 02615 LABEL ADJUSTMENT KNOB FIG. 2 CONNECT BATTERY (See Figs. 3 and 4) 02602 CAUTION: Do not short battery termi- nals by allowing a wrench or any other... - Page 8 ASSEMBLY • Place freewheel control in "trans mis sion en gaged" CHECKLIST po si tion (see "TO TRANSPORT" in Op er a tion section of this manual). BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE • Sit on seat in operating position, depress clutch/brake WISH TO ASSURE THAT YOU RECEIVE THE BEST pedal and set the parking brake.
-
Page 9: Operation
OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. ATTACHMENT ROS "ON"... - Page 10 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while op- erating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.
- Page 11 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST IGNITION REVERSE HIGH SLOW NEUTRAL CHOKE LIGHTS ON ENGINE START ENGINE ON PARKING BRAKE ENGINE OFF PARKING BRAKE PARKING BRAKE LOCKED UNLOCKED OIL PRESSURE...
- Page 12 OPERATION REVERSE OPERATION SYSTEM (ROS) "ENGAGED" PO SI TION Your tractor is equipped with a Reverse Operation System ATTACHMENT (ROS). Any attempt by the operator to travel in the reverse LIFT LEVER direction with the attachment clutch engaged will shut off HIGH PO SI TION the engine unless ignition key is placed in the ROS "ON"...
-
Page 13: Before Starting The Engine
OPERATION TOWING CARTS AND OTHER AT TACH MENTS Tow only the attachments that are recommended by and Transmission Engaged comply with specifications of the manufacturer of your trac- tor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor. -
Page 14: Mowing Tips
OPERATION • Engage transmission by placing freewheel control in PURGE TRANSMISSION driving position (See “TO TRANSPORT” in this sec tion of manual). CAUTION: Never engage or disengage • Sitting in the tractor seat, start engine. After the engine freewheel lever while the engine is is running, move throttle control to half (1/2) speed. -
Page 15: Maintenance Schedule
MAINTENANCE MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level... -
Page 16: Maintenance
MAINTENANCE TRACTOR BLADE CARE Always observe safety rules when performing any main- For best results mower blades must be kept sharp. Re place te nance. bent or damaged blades. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved CAUTION: Use only a replacement blade surface, then brake must be checked and ad just ed. - Page 17 MAINTENANCE ENGINE CENTER HOLE LUBRICATION Only use high quality detergent oil rated with API service classification SG-SL. Select the oil’s SAE viscosity grade according to your expected operating temperature. BLADE 5/8" BOLT SAE VISCOSITY GRADES OR PIN SAE 30 5W-30 FIG.
- Page 18 MAINTENANCE IN-LINE FUEL FILTER (See Fig. 14) • Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not overfill. For approximate capacity see The fuel filter should be replaced once each season. If fuel “PRODUCT SPECIFICATIONS” section of this man- filter becomes clogged, ob struct ing fuel flow to car bu re tor, u al.
-
Page 19: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST - MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place motion control lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •... - Page 20 SERVICE AND ADJUSTMENTS • To raise front of mower, loosen nut “F” from trunnion TO LEVEL MOWER HOUSING on both front links. Tighten nut “E” on both front links Adjust the mower while tractor is parked on level ground an equal number of turns. The two front links must or driveway.
- Page 21 SERVICE AND ADJUSTMENTS WITH PARKING BRAKE “ENGAGED” WIRE BELT KEEPER BELT KEEPER NUT “A” MANDREL 1-9/16” JAM NUT PULLEY ENGINE PULLEY IDLER PULLEYS OPERATING MANDREL PULLEY 02844 DO NOT TOUCH THIS NUT. IF FURTHER FIG. 20 BRAKE AD JUST MENT IS NECESSARY CON- TACT YOUR NEAREST AUTHORIZED SERVICE TO CHECK AND ADJUST BRAKE (See Fig.
- Page 22 SERVICE AND ADJUSTMENTS TRANSMISSION REMOVAL/REPLACEMENT ENGINE PULLEY Should your transmission require removal for service or replacement, it should be purged after reinstallation and CLUTCH ING before operating the tractor. See “PURGE TRANS MIS SION” IDLER in the Operation section of this manual. STA TION ARY IDLER TO AD JUST STEER ING WHEEL ALIGN-...
- Page 23 SERVICE AND ADJUSTMENTS TO START ENGINE WITH A WEAK BATTERY TO REPLACE FUSE (See Fig. 25) Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash. WARNING: Lead-acid batteries gen- TO REMOVE HOOD AND GRILL ASSEMBLY er ate ex plo sive gases.
-
Page 24: Storage
STORAGE Immediately prepare your tractor for storage at the end ENGINE of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK... -
Page 25: Troubleshooting Points
TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. Engine not “CHOKED” properly. See “TO START ENGINE” in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter. - Page 26 TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Engine continues to run Faulty operator-safety presence control system. Check wiring, switches and connections. If not when operator leaves seat corrected, contact an authorized service center/ with attachment clutch department. engaged Poor cut - uneven Worn, bent or loose blade.
- Page 28 www.mcculloch.biz...
