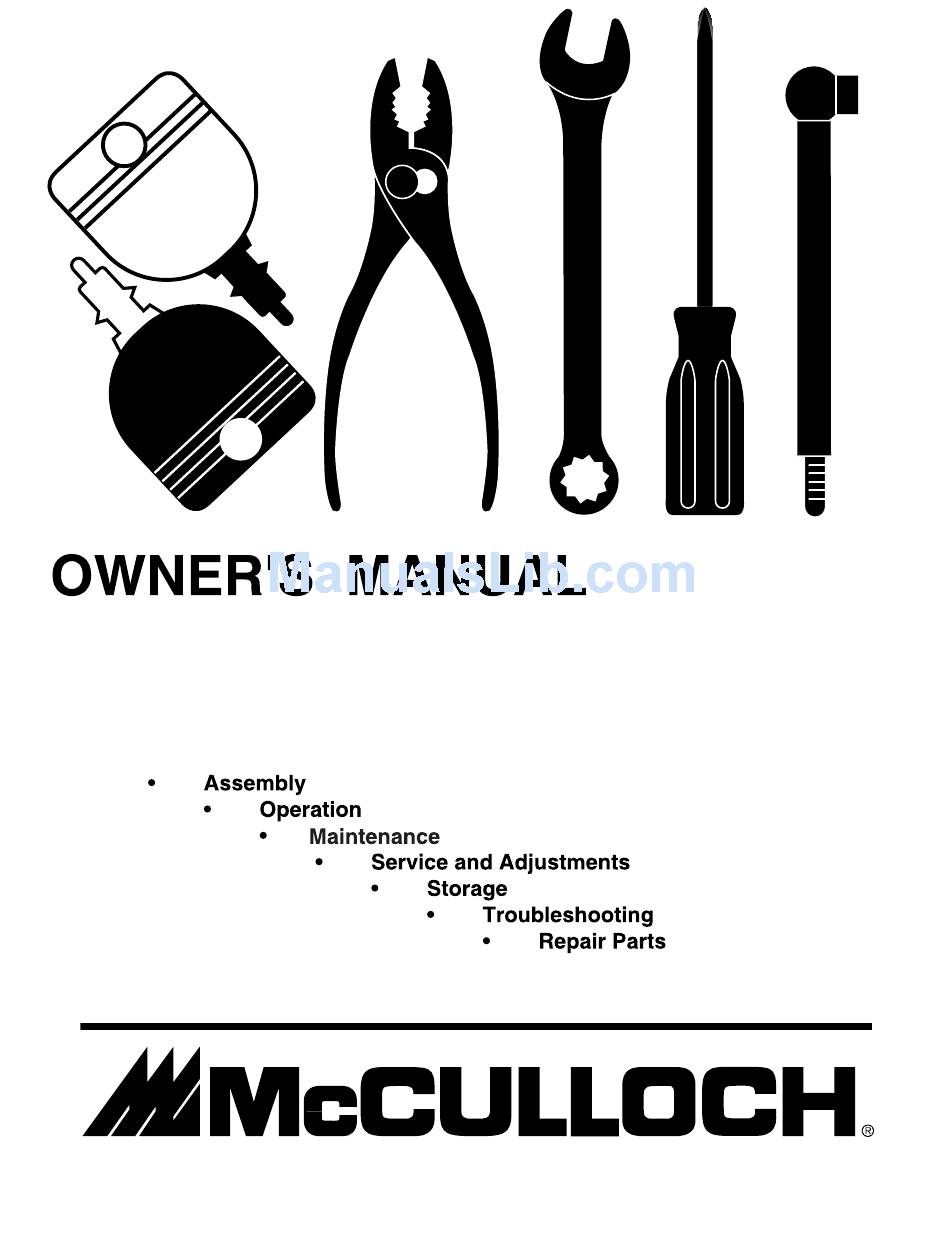

MODEL NO. MC17542ST (MC17542STA)
17.5 HP 42 Inch
Lawn Tractor
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
193190 Rev. 1 09.21.04 MH/TR
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC17542STA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for McCulloch MC17542STA

Summary of Contents for McCulloch MC17542STA

  • Page 1 MODEL NO. MC17542ST (MC17542STA) 17.5 HP 42 Inch Lawn Tractor For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 193190 Rev. 1 09.21.04 MH/TR PRINTED IN U.S.A.

  • Page 2: General Operation

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug...
  • Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...

  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS GASOLINE CAPACITY 2.0 GALLONS AND TYPE: UNLEADED REGULAR OIL TYPE (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: W/FILTER 3.5 PINTS W/O FILTER 3.0 PINTS SPARK PLUG: CHAMPION RC12YC (GAP: .030") GROUND SPEED (MPH): FORWARD: 2nd 1.5 3rd 2.4 REVERSE:...

  • Page 5: Contents Of Hardware Pack

    CONTENTS OF HARDWARE PACK Steering Wheel Steering Boot Steering Wheel Adapter (1) Large Flat Washer (1) Hex Bolt 1/4-28 x 1-1/4 (1) Washer Steering Wheel 17/32 x 1-3/16 x 12 Gauge Insert Steering Extension Shaft (1) Locknut 1/2-20 (1) Locknut 1/4-28 Seat (1) Knob (2) Keys...

  • Page 6: Tools Required For Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier.
  • Page 7 SEAT PAN 02617 FLAT WASHER ADJUSTMENT KNOB FIG. 2 CONNECT BATTERY (See Figs. 3 and 4) CAUTION: Do not short battery termi- nals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc.

  • Page 8: Assembly

    INSTALL MULCHER PLATE (See Fig. 5) (If previously removed) • Raise and hold defl ector shield in up right po si tion. • Place front of mulcher plate over front of mower deck open ing and slide into place, as shown. •...

  • Page 9: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL LIGHTS ON ENGINE ON ENGINE OFF OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions...

  • Page 10: Know Your Tractor

    KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. AMMETER THROTTLE/ CHOKE CONTROL...

  • Page 11: To Move Forward And Backward

    The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.

  • Page 12: To Operate On Hills

    TO ADJUST GAUGE WHEELS (See Fig. 8) Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.

  • Page 13: Before Starting The Engine

    BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL The engine in your tractor has been shipped, from the factory, already fi lled with sum mer weight oil. • Check engine oil with tractor on level ground. • Remove oil fi ll cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level.

  • Page 14: Operation

    MOWING TIPS • Mower should be properly leveled for best mowing per- for mance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual. • The left hand side of mower should be used for trim- ming.

  • Page 15: Maintenance Schedule

    MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter)

  • Page 16: Operator Presence System

    TRACTOR Always observe safety rules when performing any main- te nance. BRAKE OPERATION If tractor requires more than fi ve (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake must be checked and adjusted. TIRES •...

  • Page 17: Clean Air Screen

    • Rinse the battery with plain water and dry. • Clean terminals and battery cable ends with wire brush until bright. • Coat terminals with grease or petroleum jelly. • Reinstall battery (See “CONNECT BATTERY” in the Assembly sec tion of this manual). V-BELTS Check V-belts for deterioration and wear after 100 hours and replace if necessary.
  • Page 18 CLEAN AIR INTAKE/COOLING AREAS To insure proper cooling, make sure the grass screen, cooling fi ns, and other external surfaces of the engine are kept clean at all times. Every 100 hours of operation (more often under extremely dusty, dirty conditions), remove the blower housing and other cooling shrouds.

  • Page 19: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUST- MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •...

  • Page 20: To Replace Mower Blade Drive Belt

    SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly infl ated (See “PROD UCT SPECIFICATIONS” section of this manual). If tires are over or underinfl ated, you will not properly adjust your mower.
  • Page 21 SERVICE AND ADJUSTMENTS IDLER PULLEYS MANDREL PULLEYS FIG. 22 TO CHECK AND ADJUST BRAKE (See Fig. 23) Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle. If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed.
  • Page 22 SERVICE AND ADJUSTMENTS ENGINE PULLEY CLUTCHING IDLER STA TION ARY IDLER CENTER SPAN KEEPER TRANSAXLE PULLEY FIG. 24 TRANSAXLE GEAR SHIFT LEVER NEU TRAL- ADJUSTMENT (See Fig. 25) The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory;...
  • Page 23 SERVICE AND ADJUSTMENTS TO START ENGINE WITH A WEAK BATTERY (See Fig. 27) WARNING: Lead-acid batteries gen- er ate ex plo sive gases. Keep sparks, fl ame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries.

  • Page 24: Engine Fuel System

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl...

  • Page 25: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine fl ooded. Bad spark plug. Dirty air fi lter. Dirty fuel fi lter. 7. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment.

  • Page 26: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven 1. Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel.

  • Page 27: Repair Parts

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 SCHEMATIC AMMETER (OPTIONAL) WHITE IGNITION SWITCH IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 NONE RUN/LIGHT B+A1 A2+L B+A1 NONE START B + S + A1 NONE BATTERY...

  • Page 28: Repair Parts

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 ELECTRICAL D .C 179720...
  • Page 29 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 532 17 66-89 Box Battery 532 17 61-38 Switch Interlock...

  • Page 30: Chassis And Enclosures

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 CHASSIS AND ENCLOSURES chassis_elite sv_pro_12...
  • Page 31 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 CHASSIS AND ENCLOSURES NOTE: All component dimensions given in U.S. inches PART DESCRIPTION 532 17 46-19 Chassis Stamping 532 17 65-54 Drawbar 532 15 52-72 Bumper...
  • Page 32 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 DRIVE 52 30 drive-fender.stlt_38...
  • Page 33 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 DRIVE PART DESCRIPTION - - - - - - - - - Transaxle, Peerless 206-545C (Order Parts From Transaxle Manufactuer) 532 14 66-82 Spring Return Brake T/a Zinc 532 12 36-66 Pulley Transaxle 18"...

  • Page 34: Steering Assembly

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 STEERING ASSEMBLY steering_pl.lt_47...
  • Page 35 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 STEERING ASSEMBLY PART DESCRIPTION 532 18 59-58 Wheel Steering 532 18 47-06 Axle Asm 532 16 98-40 Spindle Asm LH 532 16 98-39 Spindle Asm RH...
  • Page 36 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 SEAT ASSEMBLY seat_lt.knob_9 PART DESCRIPTION 532 18 87-05 Seat 532 18 01-66 Bracket Pivot Seat 871 11 06-16 Bolt Fin Hex 3/8-16 unc x 1 819 13 16-10 Washer 13/32 x 1 x 10 Ga.

  • Page 37: Wheels And Tires

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 DECALS PART DESCRIPTION 532 15 63-68 Decal Oper. 532 17 35-87 Decal Refl ector RH 532 19 32-03 Decal Hood RH 532 19 32-08 Decal Fender...

  • Page 38: Optional Equipment

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 ENGINE OPTIONAL EQUIPMENT Spark Arrester PART DESCRIPTION 532 17 05-51 Control Throttle/Choke 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2 - - - - - - - -...
  • Page 39 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 MOWER LIFT PART DESCRIPTION 532 15 94-61 Wire Asm Inner W/plunger LT 532 15 94-76 Shaft Asm Lift 532 18 88-22 Pin Groove 812 00 00-02 E Ring #5133-62 819 21 16-21 Washer PLTD 21/32 x 1 x 21 Ga.

  • Page 40: Mower Deck

    REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 MOWER DECK 42_D_man-t-path_stlt_3...
  • Page 41 REPAIR PARTS TRACTOR - - MODEL NO. MC17542ST (MC17542STA), PRODUCT NO. 964 77 29-03 MOWER DECK PART DESCRIPTION 532 16 58-92 Deck Asm MWR 42"weldment 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 532 13 80-17 Bracket Asm Fr Sway Bar 38/42 532 16 54-60 Bracket Asm Deck 42"sway Bar...

  • Page 42: Warranty

    POLICY ® Issued January 1980 Revised January 1991 NEW PEERLESS GEAR POWER TRAIN COMPONENTS Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below, will,at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DEFECTIVE...

  • Page 43: Suggested Guide For Sighting Slopes For Safe Operation

    SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
