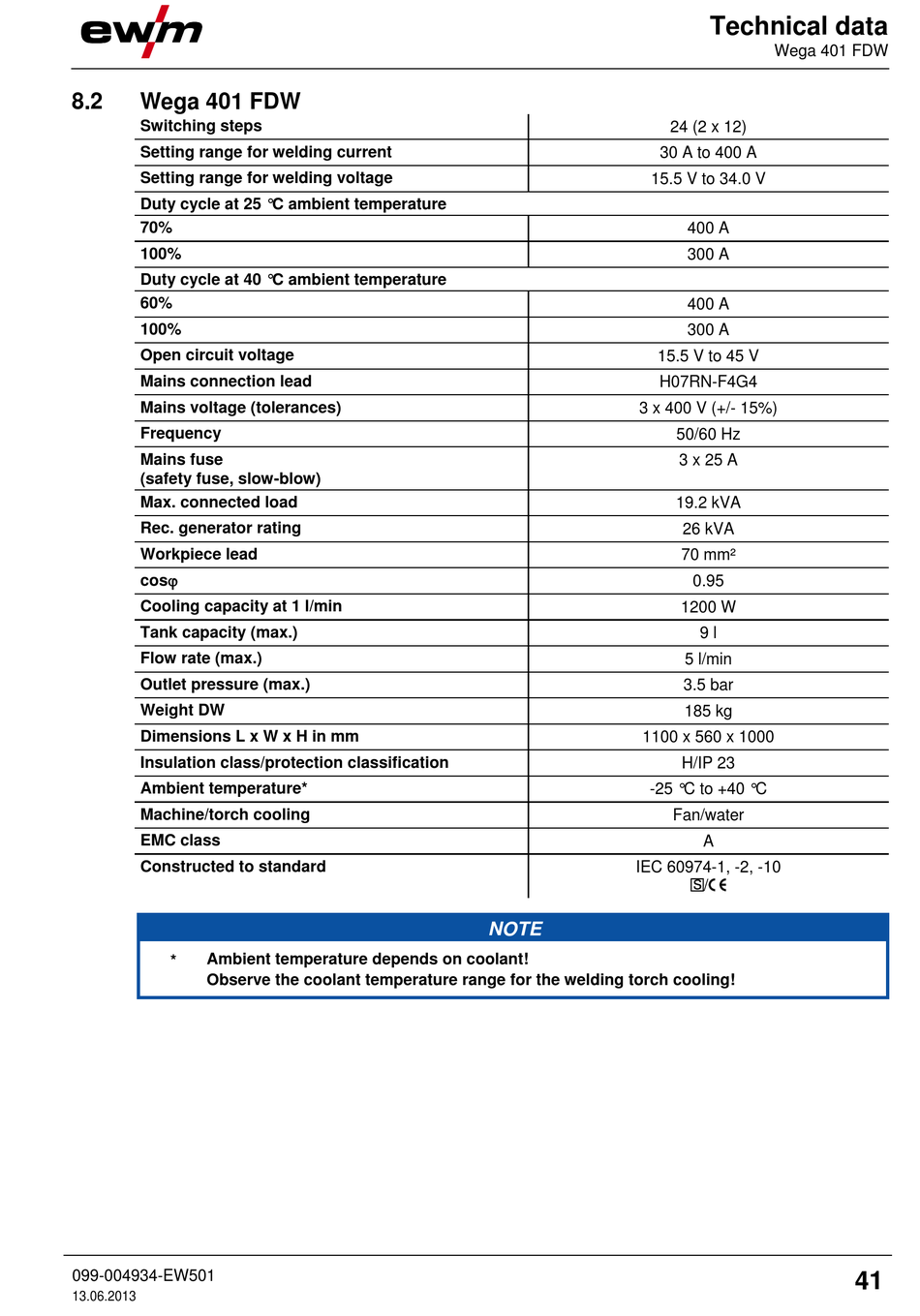

8.2

Wega 401 FDW

Switching steps
Setting range for welding current
Setting range for welding voltage
Duty cycle at 25 °C ambient temperature
70%
100%
Duty cycle at 40 °C ambient temperature
60%
100%
Open circuit voltage
Mains connection lead
Mains voltage (tolerances)
Frequency
Mains fuse
(safety fuse, slow-blow)
Max. connected load
Rec. generator rating
Workpiece lead
cos
Cooling capacity at 1 l/min
Tank capacity (max.)
Flow rate (max.)
Outlet pressure (max.)
Weight DW
Dimensions L x W x H in mm
Insulation class/protection classification
Ambient temperature*
Machine/torch cooling
EMC class
Constructed to standard
Ambient temperature depends on coolant!
*
Observe the coolant temperature range for the welding torch cooling!
099-004934-EW501
13.06.2013
30 A to 400 A
15.5 V to 34.0 V
15.5 V to 45 V
H07RN-F4G4
3 x 400 V (+/- 15%)
1100 x 560 x 1000
-25 °C to +40 °C
IEC 60974-1, -2, -10
NOTE
Technical data
Wega 401 FDW
24 (2 x 12)
400 A
300 A
400 A
300 A
50/60 Hz
3 x 25 A
19.2 kVA
26 kVA
70 mm²
0.95
1200 W
9 l
5 l/min
3.5 bar
185 kg
H/IP 23
Fan/water
A
/
41
