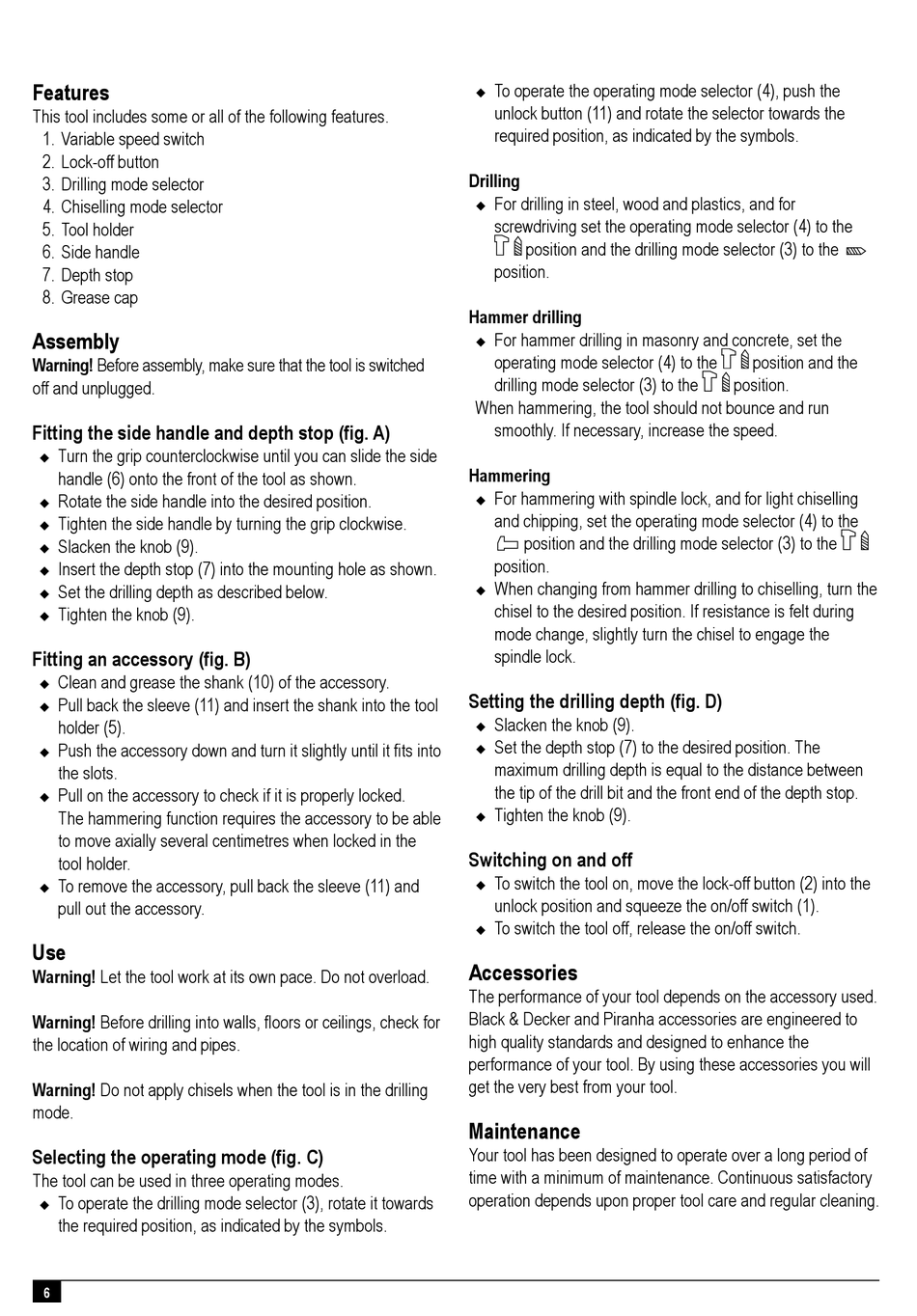

Features
This tool includes some or all of the following features.
1. Variable speed switch
2. Lock-off button
3. Drilling mode selector
4. Chiselling mode selector
5. Tool holder
6. Side handle
7. Depth stop
8. Grease cap
Assembly
Warning! Before assembly, make sure that the tool is switched
off and unplugged.
Fitting the side handle and depth stop (fig. A)
Turn the grip counterclockwise until you can slide the side

handle (6) onto the front of the tool as shown.
Rotate the side handle into the desired position.

Tighten the side handle by turning the grip clockwise.

Slacken the knob (9).

Insert the depth stop (7) into the mounting hole as shown.

Set the drilling depth as described below.

Tighten the knob (9).

Fitting an accessory (fig. B)
Clean and grease the shank (10) of the accessory.

Pull back the sleeve (11) and insert the shank into the tool

holder (5).
Push the accessory down and turn it slightly until it fits into

the slots.
Pull on the accessory to check if it is properly locked.

The hammering function requires the accessory to be able
to move axially several centimetres when locked in the
tool holder.
To remove the accessory, pull back the sleeve (11) and

pull out the accessory.
Use
Warning! Let the tool work at its own pace. Do not overload.
Warning! Before drilling into walls, floors or ceilings, check for
the location of wiring and pipes.
Warning! Do not apply chisels when the tool is in the drilling
mode.
Selecting the operating mode (fig. C)
The tool can be used in three operating modes.
To operate the drilling mode selector (3), rotate it towards

the required position, as indicated by the symbols.
6
To operate the operating mode selector (4), push the

unlock button (11) and rotate the selector towards the
required position, as indicated by the symbols.
Drilling
For drilling in steel, wood and plastics, and for

screwdriving set the operating mode selector (4) to the
position and the drilling mode selector (3) to the
position.
Hammer drilling
For hammer drilling in masonry and concrete, set the

operating mode selector (4) to the
drilling mode selector (3) to the
When hammering, the tool should not bounce and run
smoothly. If necessary, increase the speed.
Hammering
For hammering with spindle lock, and for light chiselling

and chipping, set the operating mode selector (4) to the
position and the drilling mode selector (3) to the
position.
When changing from hammer drilling to chiselling, turn the

chisel to the desired position. If resistance is felt during
mode change, slightly turn the chisel to engage the
spindle lock.
Setting the drilling depth (fig. D)
Slacken the knob (9).

Set the depth stop (7) to the desired position. The

maximum drilling depth is equal to the distance between
the tip of the drill bit and the front end of the depth stop.
Tighten the knob (9).

Switching on and off
To switch the tool on, move the lock-off button (2) into the

unlock position and squeeze the on/off switch (1).
To switch the tool off, release the on/off switch.

Accessories
The performance of your tool depends on the accessory used.
Black & Decker and Piranha accessories are engineered to
high quality standards and designed to enhance the
performance of your tool. By using these accessories you will
get the very best from your tool.

Maintenance

Your tool has been designed to operate over a long period of
time with a minimum of maintenance. Continuous satisfactory
operation depends upon proper tool care and regular cleaning.
position and the
position.
