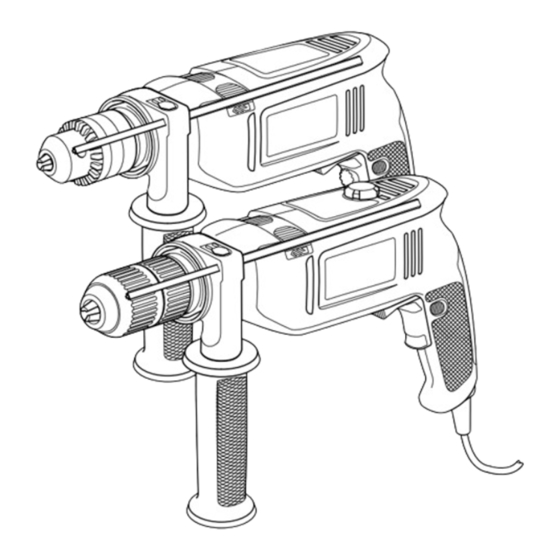

- Page 1 ® KD574 KD577 KD1000...
- Page 2 Congratulations! On the purchase of your Black & Decker corded drill. To ensure the best results from your corded drill please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to call your local service and information centre (the number is towards the back of this manual).
-
Page 3: Table Of Contents
Contents Page 4 Safety instructions Double insulation Page 5 Electrical safety Mains plug replacement Extension cables Unwanted tools and the environment The Black & Decker guarantee Page 6 After sales service for your Black & Decker product Our after sales service policy Accessories Technical data Features... -
Page 4: Safety Instructions
Corded drills user manual SAFETY INSTRUCTIONS • Maintain the tool with care. Keep a cutting tool Warning! When using electric tools, the following sharp and clean for better and safer performance. basic safety precautions should always be taken to Follow the instructions for lubricating and changing reduce the risk of fire, electric shock and personal accessories. -
Page 5: Electrical Safety
ENGLISH from the mains power supply. This is done by fixed at the terminal screws. If the fuse cover is placing insulation barriers between the missing or damaged do not use the plug. electrical and mechanical components making For replacement or detachable fuse covers, it unnecessary for the tool to be earthed. -
Page 6: Technical Data
ENGLISH AFTER SALES SERVICE FOR THE BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY) • Black & Decker offers a nationwide network of • authorised service agents. The use of other than genuine Black & Decker accessories and parts may damage or reduce the •... -
Page 7: Fitting The Drill Bit
ENGLISH FITTING THE DRILL BIT (KEYLESS CHUCKS) it anti-clockwise. To fasten the chuck, put it on the Proceed as follows: thread and turn it clockwise until it stops. Put in the Disconnect the plug from the electricity supply. screw and turn it anti-clockwise until absolutely firm. While holding the REMOVING THE CHUCK (KEYED CHUCKS) rear section of... -
Page 8: Using Your Drill
ENGLISH When drilling Set the forward/ wood and metal, reverse switch to the set the hammer desired direction of switch to the drill rotation. Never change mode the setting of the When drilling hammer switch, the masonry, set the speed switch, the hammer switch torque speed control to the hammer... - Page 10 Australia Black & Decker (A’asia) Pty Ltd Tel: 03 9213 8200 286-288 Maroondah Highway Fax: 03 9726 7150 North Croydon, Victoria 3136 New Zealand Black & Decker Tel: 09 579 7600 483 Great South Road, Penrose, Auckland Fax: 09 579 8200 South Africa Black &...
- Page 12 12Part no. 808378-52 5/98.2...
