- Page 1 CABINET PARTS REFRIGERATOR For Model: KSBP25FJSS01 (Stainless Steel) 10−01 Litho In U.S.A. (mdg) Part No. 4398846 Rev.A...
-
Page 2: Cabinet Parts

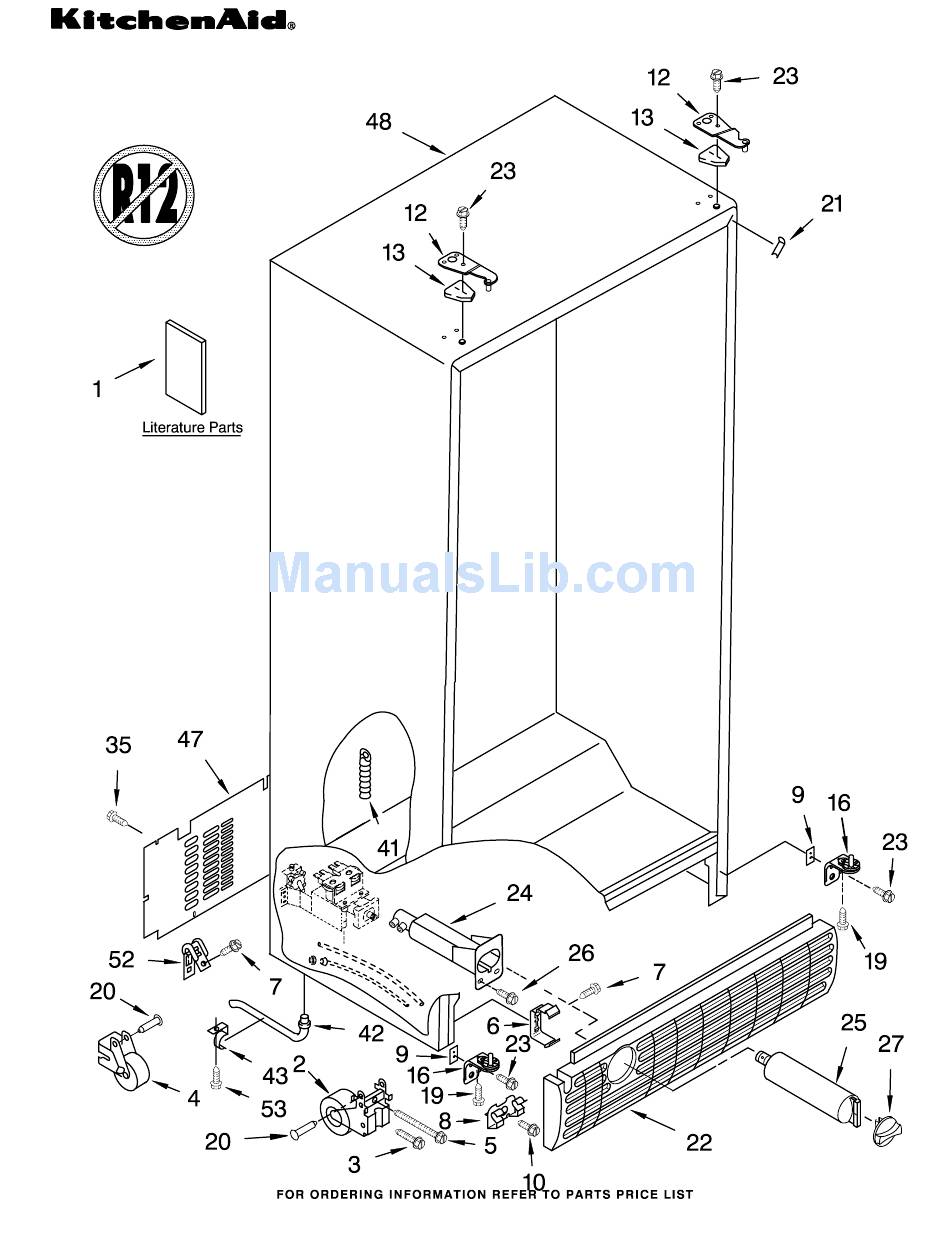

CABINET PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS LIT2210719 Use & Care Guide LIT2199974 Service & Wiring Sheet LIT2211871 Energy Label LIT628370 Modular Icemaker Service Sheet 2203007 Front Roller (2) 3400512 Bolt 2203008 Roller (Rear) (2) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS 4398846 For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2171846 Release Valve 2196485 Stud Assembly (3) 8281158 Screw (9) 2196483 Stud Assembly (9) 2181796 Ladder, Shelf 3400894 Screw (3) 489478 Screw 2179404 Rack, Wine & Egg... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION 2203054 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2203034 Cover, Meat Pan (Includes Items 13, 14 & 15) 2203038 Glass, Cover 2174250 Cover, Crisper... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 6 FREEZER LINER PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2199860 Door, Ice Compartment 2172803 Grommet 2174478 Eyelet, Roller 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2199867 Trim, Basket 2199863 Basket (2)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part 2199843 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2206503 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor 489355 Screw 2162085 Socket, Light 2199895 Ice Container...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2199766B Black 2182181 Thimble−Top 2182399 Door, Compartment 2182190 Trim, Door Shelf 3196537 Screw 2199986 Bin, Door 2208114S Trim, Door (Bottom) Door Gasket, Magnetic (Service) 2209515 Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 12 FREEZER DOOR PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2209551B Black 2208121S Handle 3400012 Screw 3196537 Screw 2209523 Filler, Panel (Upper) 2199990 Trim, Door Shelf 2182181 Thimble−Top Door Gasket, Magnetic (Service)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 14 DISPENSER FRONT PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2180325 Black 2209718 Water Fitting...
-
Page 15: Unit Parts
UNIT PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 16 2199929 Housing, Control Board 489478 Screw 2209611 Evaporator 2161324 Clamp 2199155 Fan, Motor 1105523 Tray, Evaporator 2199806 Tube, Heat Loop UNIT PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION 2199167 Drier 2208176 Compressor (Includes Items 12, 13, 17, 27, &...
-
Page 17: Air Flow Parts
2182146 Duct, Icemaker 2206506 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover 2210780 Gasket 2203122 Cover, Evaporator 489464 Screw Evaporator, Cover Rail 2199922 Right 2199923 Left 2199723 Thermistor 489478 Screw 4398846 AIR FLOW PARTS For Model: KSBP25FJSS01 (Stainless Steel) -
Page 18: Control Parts
Illus. Part DESCRIPTION 2203081 Overlay 2208141 Retainer, Circuit Board 2203080 Circuit Board, Interface CONTROL PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION 2199717 Control Box 2203108 Light Lens 940014 Hole Plug Illus. Part DESCRIPTION 2203172 Thermistor 2162085 Light Socket... -
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSBP25FJSS01 (Stainless Steel) 4398846... - Page 20 ICEMAKER PARTS For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION 2203127 Tube, Filter Outlet 2203198 Tube, Filter Inlet 628379 Clip, Fuse 2181940 Tube, Water 2181939 Insert, Tube 489478 Screw 2199838 Valve, Solenoid 627018 Nut, Compression 2208136 Clip, Water Tube 2203024 Tube, Water...
- Page 21 Refinishing Material 799340 Enamel, Black 799344 Enamel, White 4392900 Enamel, Biscuit 4398846 For Model: KSBP25FJSS01 (Stainless Steel) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum 479502 Tape, Vinyl 876370 Kit, Insulation (13 Oz.
