- Page 1 CABINET PARTS REFRIGERATOR For Models: KSBP25FKSS00 (Stainless Steel) Part No. 8197828 Rev B. 8−03 Litho in U.S.A. (kdj)
-

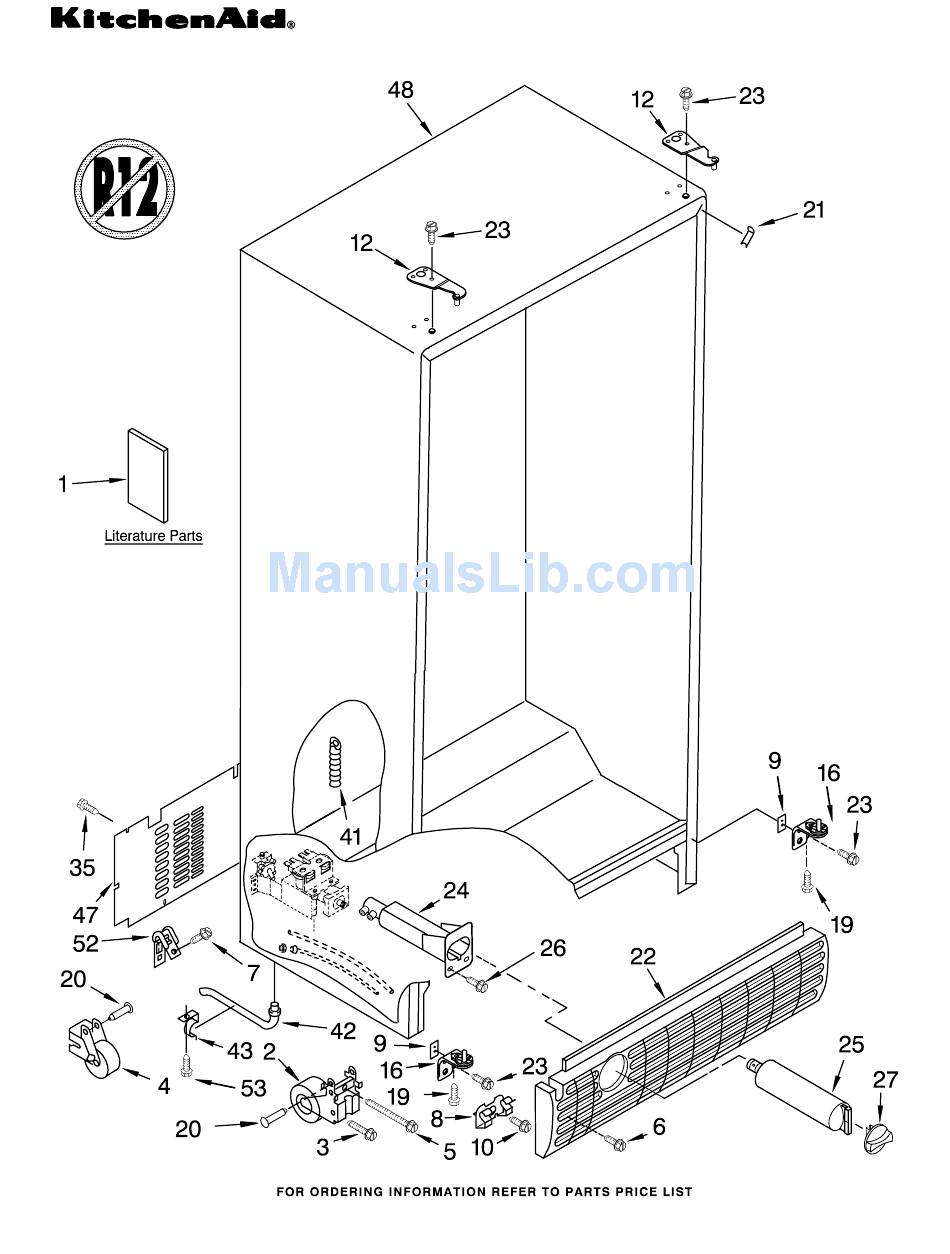

Page 2: Cabinet Parts
CABINET PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489478 Screw 2203220 Water Filter LITERATURE PARTS 2209529 Clip 489478 Screw 2156056 Shim Cap, Water LIT2221516 Use & Care Guide 3400515 Screw Filter LIT2214447 Service & Wiring Hinge Top 2186494B Black Sheet... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1116793 Cover, Thermistor 2213442 Thermistor 2209204 Clip, Thermistor 2220377 Air Baffle 2181796 Ladder, Shelf 489478 Screw 2179404 Rack, Wine & Egg 2214367 Air Diffuser Assembly 2162085 Socket 2196171 Reservoir... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION 2203054 Shelf Assembly Cantilever 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side 2203034 Cover, Meat Pan (Includes Items 13, 14 & 15) 2203038 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 6 FREEZER LINER PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2209204 Clip, Thermistor 2199860 Door, Ice Compartment 2174478 Eyelet, Roller 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2213442 Thermistor 2199867 Trim, Basket 2199863 Basket (2) 2199892 Basket, Shallow 2188212 Roller...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION 2214579 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2206503 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489355 Screw 2162085 Socket, Light 2199895 Ice Container 983668 Coupling, Conveyor 1119005 Spacer, Step (3)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #8) 2210773B Black 2182399 Door, Compartment 2182190 Trim, Door Shelf 3196537 Screw 2199986 Bin, Door 2207312S Trim, Door (Top) Door Gasket, Magnetic 2209563 Black 2207308S Handle 3400012 Screw 2159124 Gasket 2195497 Divider, Bin...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 12 FREEZER DOOR PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes Item #8 And Dispenser Front Parts) 2214473B Black 2207309S Handle 3400012 Screw 3196537 Screw 2199990 Trim, Door Shelf Door Gasket, Magnetic 2209562 Black 2199991 Trim, Door Shelf 488500 Screw 2187667 Wiring Harness, Freezer Door...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 14 DISPENSER FRONT PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2180325 Black 2209718 Water Fitting Assembly (Includes Water Tube) Lever, Ice...
-
Page 15: Unit Parts
UNIT PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 16 UNIT PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2206036 Fan, Motor 486692 Speed Nut 1105523 Tray, Evaporator 2190685 Fan, Blade Following Parts Not Illustrated 2199167 Drier 2205983 Condenser and Optional Parts Not Included 2208937 Compressor Assembly (Includes Items...
-
Page 17: Air Flow Parts
AIR FLOW PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2210746 Air Scoop 2208184 Block, Fan Scroll 2199931 Air Duct Freezer 2208939 Fan Motor 2169142 Fan Blade 2208959 Fan Grommet 2182146 Duct, Icemaker 2214359 Harness, Fan Evaporator, And Heater, Bi−Metal... -
Page 18: Control Parts
CONTROL PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2162085 Light Socket 2203081 Overlay 2199717 Control Box 850166 Light Bulb 2208141 Retainer, Circuit 2203108 Light Lens 2220781 Control Box Board 940014 Hole Plug Harness 2214765 Circuit Board, Interface... -
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSBP25FKSS00 (Stainless Steel) 8197828... - Page 20 ICEMAKER PARTS For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part DESCRIPTION 2203127 Tube, Filter Outlet 2214613 Tube, Filter Inlet 628379 Clip, Fuse 2181940 Tube, Water 2181939 Insert, Tube 489478 Screw 2199838 Valve, Solenoid 627018 Nut, Compression 2208136 Clip, Water Tube 2203024 Tube, Water Inlet 488878 Tube Clamp 2174155 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSBP25FKSS00 (Stainless Steel) Illus. Part Illus. Part DESCRIPTION DESCRIPTION Parts Not Illustrated and Miscellaneous Optional Parts (Not Included) 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material 479502 Tape, Vinyl (3/4 x 108") 350942 Primer, White 876370 Kit, Insulation (13 Oz.
