CABINET PARTS
REFRIGERATOR
For Model: KSBP25IVSS01
(Stainless Steel)
02−09 Printed In U.S.A. (jdc) (psw)
Part No. W10258577 Rev.A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSBP25IVSS01 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSBP25IVSS01

Summary of Contents for KitchenAid KSBP25IVSS01

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSBP25IVSS01 (Stainless Steel) 02−09 Printed In U.S.A. (jdc) (psw) Part No. W10258577 Rev.A...

  • Page 2: Cabinet Parts

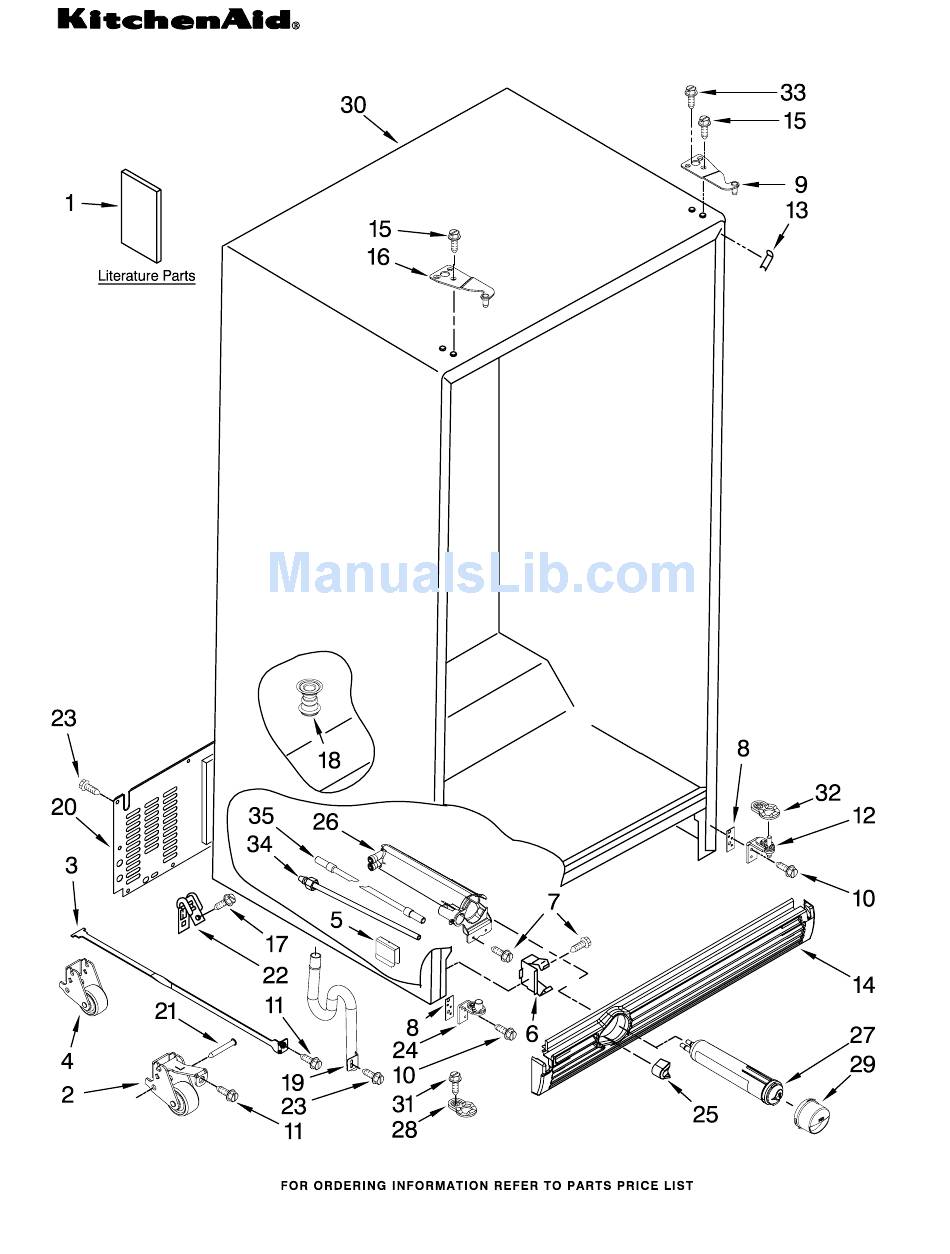

    2306949 Roller, Rear (2) 2223388 Clip, Retainer (4) 2155013 Clip, Grille 489478 Screw 2223545 Shim Hinge Top, RC 2307008B Black 3400113 Screw CABINET PARTS For Model: KSBP25IVSS01 (Stainless Steel) Illus. Part DESCRIPTION 3400243 Screw 2307179 Hinge Assembly, Bottom−RC Filler, Wrapper...
