General Description

The User Control panel consists
of three toggle buttons, a reset
button and display, which will
indicate with symbols the status of

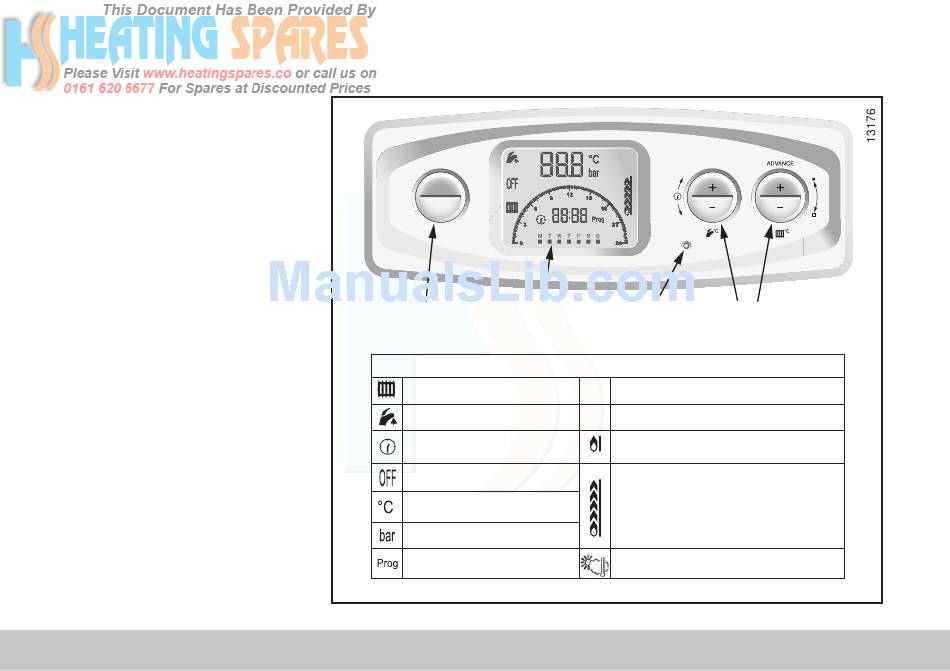

the boiler, refer to diagram 2.
Supplied By www.heating spares.co Tel. 0161 620 6677

User Control Panel

Eco
MODE
PROG
TOGGLE BUTTON
LCD
MODE and PROG
DISPLAY
SYMBOLS DISPLAYED ON THE LCD AND DESCRIPTIONS
Central Heating Function
Domestic Hot Water Function
Central Heating
Timed Mode
Appliance OFF
Temperature
System Pressure
Programmer
Adjustment Mode
Control Panel
www.glow-worm.co.uk
Ext
DHW CH
RESET
TEMPERATURE
BUTTON
ADJUSTMENT
Will be displayed when domestic hot
Eco
water temperature is less than 50
Ext Intelligent control - (Optional)
Min burner display
Max burner display
Outdoor sensor - (Optional)
o
C
Diagram 2
9
