Boiler Design & Clearances
Description
The Ultrapower sxi is a high efficiency central heating appliance,
close coupled to an un-vented cylinder. The pump, expansion
vessels and associated safety devices are all fitted within the
appliance, providing a one box solution for properties requiring
a high domestic hot water demand. The intelligent control
system is designed for both simple operation and maximum
control. Once the controls are set the boiler will operate
automatically.
Additionally an immersion heater is supplied fitted to the
cylinder. It is intended for use as a back up should the boiler
fail, it will not give optimum DHW performance.
Pluming from flue terminal
Like all condensing boilers it will produce a plume of
condensation from the flue terminal in cool weather. This is
due to the high efficiency and hence low flue gas temperature
of the boiler. It is normal and not a fault indication.
Compartment or Cupboard Installations
Ventilation is not required for compartment or cupboard
installations. Do not use the compartment or cupboard for
storage.

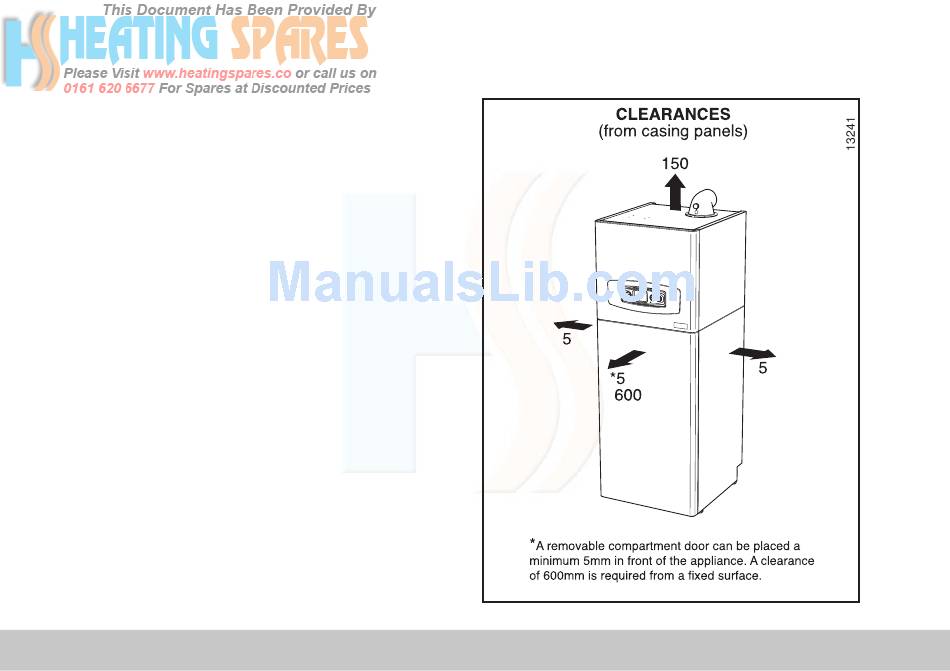

Diagram 1
