8.3

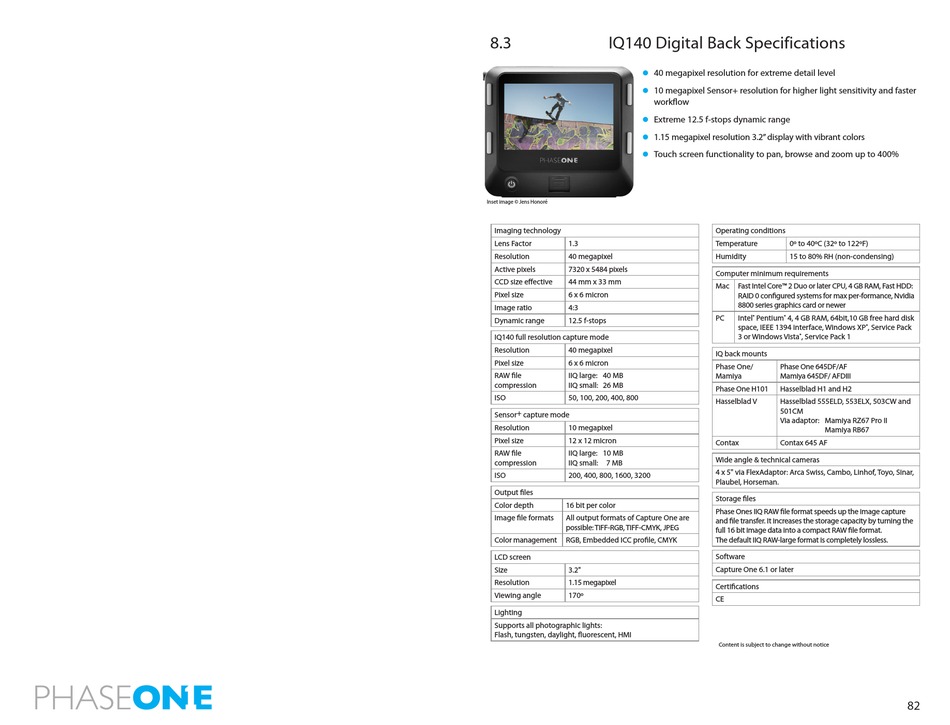

IQ140 Digital Back Specifications

l 40 megapixel resolution for extreme detail level
10 megapixel Sensor+ resolution for higher light sensitivity and faster
l
workflow
Extreme 12.5 f-stops dynamic range
l
l 1.15 megapixel resolution 3.2" display with vibrant colors
Touch screen functionality to pan, browse and zoom up to 400%
l
Inset image © Jens Honoré
Imaging technology
Lens Factor 1.3
Resolution 40 megapixel
Active pixels 7320 x 5484 pixels
CCD size effective 44 mm x 33 mm
Pixel size 6 x 6 micron
Image ratio 4:3
Dynamic range 12.5 f-stops
IQ140 full resolution capture mode
Resolution 40 megapixel
Pixel size 6 x 6 micron
RAW file IIQ large: 40 MB
compression IIQ small: 26 MB
ISO 50, 100, 200, 400, 800
Sensor + capture mode
Resolution 10 megapixel
Pixel size 12 x 12 micron
RAW file IIQ large: 10 MB
compression IIQ small: 7 MB
ISO 200, 400, 800, 1600, 3200
Output files
Color depth 16 bit per color
Image file formats All output formats of Capture One are
possible: TIFF-RGB, TIFF-CMYK, JPEG
Color management RGB, Embedded ICC profile, CMYK
LCD screen
Size 3.2"
Resolution 1.15 megapixel
Viewing angle 170º
Lighting
Supports all photographic lights:
Flash, tungsten, daylight, fluorescent, HMI
Operating conditions
Temperature 0º to 40ºC (32º to 122ºF)
Humidity 15 to 80% RH (non-condensing)
Computer minimum requirements
Mac Fast Intel Core™ 2 Duo or later CPU, 4 GB RAM, Fast HDD:
RAID 0 configured systems for max per-formance, Nvidia
8800 series graphics card or newer
PC Intel Pentium 4, 4 GB RAM, 64bit,10 GB free hard disk
® ®
space, IEEE 1394 interface, Windows XP ® , Service Pack
3 or Windows Vista , Service Pack 1
®
IQ back mounts
Phase One/ Phase One 645DF/AF
Mamiya Mamiya 645DF/ AFDIII
Phase One H101 Hasselblad H1 and H2
Hasselblad V Hasselblad 555ELD, 553ELX, 503CW and
501CM
Via adaptor: Mamiya RZ67 Pro II
Mamiya RB67
Contax Contax 645 AF
Wide angle & technical cameras
4 x 5" via FlexAdaptor: Arca Swiss, Cambo, Linhof, Toyo, Sinar,
Plaubel, Horseman.
Storage files
Phase Ones IIQ RAW file format speeds up the image capture
and file transfer. It increases the storage capacity by turning the
full 16 bit image data into a compact RAW file format.
The default IIQ RAW-large format is completely lossless.
Software
Capture One 6.1 or later
Certifications
CE
Content is subject to change without notice
82
