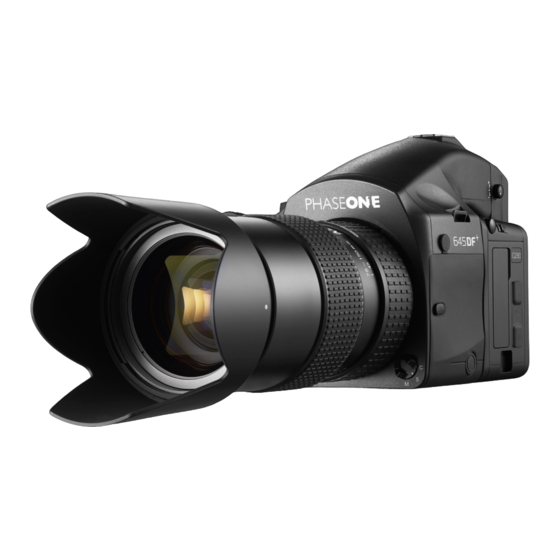

PhaseOne 645DF+ User Manual

Iq2 series digital back
Hide thumbs Also See for 645DF+:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
: Phase One 645DF+ Camera and IQ2 Series Digital Back

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 645DF+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PhaseOne 645DF+

Summary of Contents for PhaseOne 645DF+

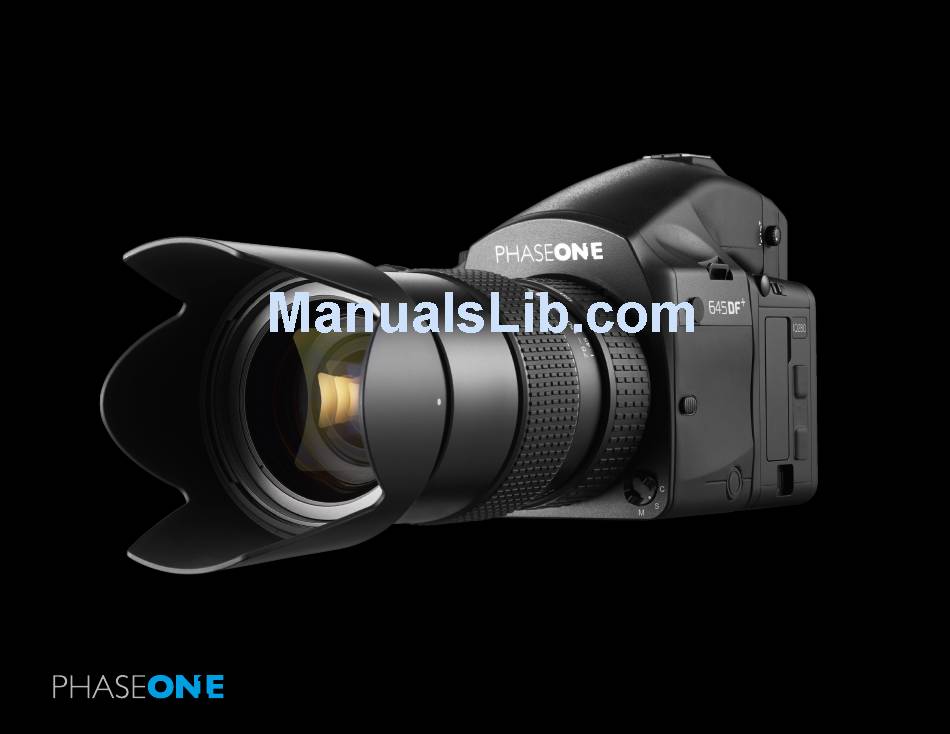

  • Page 1 User Guide : Phase One 645DF+ Camera and IQ2 Series Digital Back...

  • Page 4: Table Of Contents

    Contents Introduction 3.11 Flash Compensation Settings Warranty Installation and Activation of Software Activation and Deactivation of Capture One Introduction to the IQ2 Series Digital Back Screen Calibration Quick Start (shooting untethered) General Hardware Setup Indicator Lights The 645DF+ Camera and IQ2 Digital Back System Indicators The Camera System includes Tethered and Untethered Operations...
  • Page 5 7.1.3 AF Area 7.11 Auto Preview Mode 7.1.4 Light Metering 7.12 Display 7.1.5 Custom Function Set Brightness 7.1.6 Setup Custom A, B or C Display Off Time 7.1.7 EV Step Splash Screen 7.1.8 Lens Change Background Image 7.1.9 Sleep Timer 7.13 Ready Beep 7.1.10...
  • Page 6 9.17 Lenses and Multi Mount 15.2 Viewfinder Masking 9.18 Functions of the Phase One Lens 15.3 More Details: Mamiya RZ67 9.19 Function of the Phase One Lens Adaptor Mode Selector 9.20 List of Alternative Lenses Shutter Latency Setting Mamiya RZ PRO II Studio Flash Sync on the RZ lens Mirror Up 10.0...
  • Page 7 Flash Lead Connection View Cameras 17.4 Cables Shipped with IQ back for Hasselblad H Phase One 645AF/645DF/645DF+ Hasselblad H1/ H2 Hasselblad V 18.0 IQ2 Back for Contax 645 Mamiya RZ67 Pro II/Pro IID 18.1 Mounting the IQ Back on a Contax 645 Contax 645 18.2 Viewfinder Masking...

  • Page 8: Introduction

    Introduction Thank you for choosing the Phase One 645DF+ camera and the IQ2 Series digital back solution. The Phase One 645DF+ and IQ2 Series digital is the most powerful digital camera solution whether you are working on location or tethered in a studio.

  • Page 9: Warranty

    To install the software follow the procedure below: 1. Either load the Capture One DVD, or download the application from the Phase One website: www.phaseone.com. 2. Open the Capture One disk image. 3. Read and accept the license agreement presented.

  • Page 10: Activation And Deactivation Of Capture One

    If you are experiencing problems activating the software, follow the in- structions provided in the application, read the software manual en- closed or visit our website for inspiration and troubleshooting: http://www.phaseone.com/support Deactivation of Capture One An Internet connection is needed to deactivate Capture One.

  • Page 11: Screen Calibration

    Screen Calibration Having a properly calibrated monitor is a critical factor when viewing images. Ensure that digital viewing conditions are as accurate as pos- sible. A quality monitor and calibration tool should help guarantee that displayed images on a screen are precisely rendered. Once a moni- tor has been calibrated, the color and brightness controls should be locked to prevent inadvertent changes.

  • Page 12: The 645Df+ Camera And Iq2 Digital Back System

    The 645DF+ IQ2 Camera System The Phase One Camera system is created to provide as much flexibility and openness as possible. The Camera System includes • Phase One 645DF+ Camera Body • Phase One IQ2 Digital Back • Schneider Kreuznach 80mm LS f/2.8 Lens •...

  • Page 13: Warranty And Services

    Warranty and Services The IQ2 Camera System comes with a 5 Year Warranty and 5 Year Uptime Guarantee covering all items in the system: IQ2 digital back, 645DF+ camera body, Phase One Lenses, Schneider Kreuznach lenses and Vertical Grip. 5 Year Warranty 5 Years Uptime Guarantee What is it? What is it?

  • Page 14: Charging The Batteries For The Iq2 Digital Back

    Charging the Batteries for the IQ2 Digital Back Charge the batteries as soon as the camera system has been unpacked. The Value Added roller case is delivered with two 7.2 volt Lithium-Ion batteries and a duo-charger. Although only one battery can be used in the IQ back at a time, it is recommended to charge both batteries fully before you start.

  • Page 15: Camera Batteries (Aa And Rechargeable Li-Ion Battery)

    Camera Batteries Set the shutter release mode selector lever to L (to turn the power off). Use six AA alkaline or rechargeable batteries. NiCd or NiMH batteries should only be used in the camera body if CF04 is set on rechargeable. 1.

  • Page 16: Sleep Mode

    Sleep Mode The camera’s power is switched on when the shutter release mode selector is set to S, C or M.UP. In order to prevent the camera’s batteries from discharging, sleep mode is automatically entered if no operations are performed for a specific period of time while the power is ON (with exposure metering status maintained).

  • Page 17: Attach And Remove Lens

    Attach and Remove a Lens 1. Remove the front body cap in the same way that you would remove a lens; push the lens release button [A] backward and then turn the front body cap or the lens itself counter clockwise and lift out. 2.

  • Page 18: Adjusting The Strap

    Attach a Leaf Shutter Lens Leaf shutter lenses are equipped with an internal shutter. Leaf shutter lenses are capable of high shutter speeds up to 1/1600 on IQ Series backs with flash synchronization, which is particularly useful for fill-in flash photography in bright ambient shooting conditions. When a leaf shutter lens is attached and the leafshutter is used and the letters LS will appear in the main LCD screen.

  • Page 19: Attaching The Iq2 Back

    Attaching the IQ2 Back The IQ back is fully integrated with the camera body and functions as a part of the whole camera system. Ensure that the Phase One 645DF+ camera mirror is up and the shutter is open when no digital back is attached. When attaching the IQ back to the camera body the shutter will close and the mirror comes back down.

  • Page 20: Names Of Parts And Functions (Nomenclature)

    Names of Parts and Functions (Nomenclature) Hot Shoe Self Timer Button Interval Button Rubber Eye Piece Exposure Mode Dial Main LCD Backlight Button Eyepiece Shutter Lever Exposure Metering Mode Button Focus Point Selector Button Main LCD Mirror* *Do not touch the mirror Rear Dial Set Button Exposure Compensation Button...

  • Page 21: The Displays

    2.10 The Displays Main LCD The display on the camera body will provide you with a lot of valuable information. This includes many features and settings including, but not limited to shutter speed, aperture value, exposure program, exposure compensations and metering modes. During actual use, only the relevant icons and indicators are displayed.

  • Page 22: Displays, Abbreviations And Electronic Dial Operation

    2.11 Displays, Abbreviations and Electronic Dial Operation Liquid Crystal Display Due to the limitations of the space and letters, words and letters on Electronic Dial Operation the LCD are abbreviated. Display examples of the main LCD Position Front dial Rear dial Exposure mode Shutter speed adjustment Aperture adjustment...

  • Page 23: The Buttons On The Back

    2.12 The Buttons on the Back The IQ is equipped with four external buttons. The buttons will change function to match the menu shown on the sceen. Find out more on the Play IQ menus from page 78. 2.13 LED Lights IQ Series digital backs feature two main LEDs located below the bottom left corner of the screen.

  • Page 24: Setting Date And Time

    2.14 Setting Date And Time Date and time parameters are set and controlled via the IQ back’s Menu system. If the IQ back has been without power for a long period of time, it will automatically ask you to set the time and date on the next occasion it is powered up.

  • Page 25: Replacing The Diopter Correction Lens

    Replacing the Diopter Correction Lens NOTE: 1.Press the Eyepiece Lock, which is located in a gap between the If there is dirt or dust on the lens Eyepiece and the Diopter Correction lens. (Turn the camera upside surface, remove it with a blower or down to gain easy access to it).

  • Page 28: Basic Functions

    Basic Functions ISO and White Balance The IQ back’s Home Screen enables quick access to the ISO and WB settings by either pressing the adjacent buttons or by tapping the screen directly. Scroll up and down, then select the setting by tapping the screen next to the desired rating so that a green check mark appears.

  • Page 29: Getting Started: Setting The Shutter Release, Focus, Exposure And Metering Modes

    Getting started: Setting the Shutter Release, Focus, Exposure and Metering modes 1. Set the Shutter Release mode selector lever to S (single-frame advance mode). There are two shutter release (drive) modes: S (single frame advance mode) and C (continuous advance mode). When set to L the power is turned off.
  • Page 30 P: Program AE - The aperture and shutter speed are determined automatically for the optimum exposure, according to the ambient light conditions. This auto mode is best suited for general photography or for novice photographers, as it leaves the user free to concentrate on framing and capturing the subject.

  • Page 31: Measuring Light - Exposure Metering

    Measuring Light – Exposure Metering 1. Press button [A] to adjust the exposure metering mode. There are three different exposure metering mode options that are displayed sequentially when either the front or rear dial is turned. Select an appropriate exposure mode. Your chosen exposure metering mode is displayed as an icon on the camera’s LCD screen.

  • Page 32: Focus Mode

    Autofocus Modes To use the Auto Focus function, both the camera body and the lens have to be set to their respective Auto Focus modes. Auto Focus does not function when either the camera body or the lens are set to manual focus.
  • Page 33 Single Autofocus Mode (S) This mode uses the focus-priority mechanism. The shutter can be released when the focus mark • in the viewfinder is illuminated. This mode is suited for still subjects. Focus is locked when the focus mark • is illuminated in the viewfinder’s LCD. The shutter cannot be released if the subject is not in focus (if the focus mark •...

  • Page 34: Auto Focus Or Manual Focus

    Lenses with the Focus Mode Selector Continued 2. Lock the Focus. When the focus mark • in the viewfinder LCD is lit, press the AF lock button on the front of the camera to lock the focus. 3. Adjust the Composition. With the shutter release button half-pressed, slide the camera to achieve the desired composition, and release the shutter.
  • Page 35 When Auto Focus Cannot Find Focus The auto focus function requires contrast in the subject. Auto focusing may fail to achieve focus with certain subjects described below. In such cases, either switch to the manual focus mode (and focus manually) or focus on a more contrast appropriate object at the same distance as the object you want to photograph, lock the focus using the focus lock button on the front of the camera body, then take a picture.

  • Page 36: Using Focus Lock And Infrared Focusing

    Manual focus 1. All lenses: Turn the focus mode selector lever to M (manual focus mode). 2. Manual Focus operation for telephoto and zoom lenses: All newer Phase One, Mamiya and Schneider Kreuznach lenses can be switched from Auto Focus to Manual Focus by using the AF ring or slider fitted on the lens.

  • Page 37: Drive Dial

    Drive Dial Single-Frame Mode One photograph is taken each time the shutter release button is pressed. Set the shutter release mode selector to S. Continuous Mode Photographs are exposed as long as the shutter release button is pressed. Set the shutter release mode selector lever to C. Photographs are taken continuously at a rate depending on the buffer speed of the digital back mounted on the camera.

  • Page 38: Exposure Modes

    Exposure Modes NOTE: If a correct exposure cannot be (P) Program AE obtained, shutter speed The aperture and shutter speed are determined automatically for aperture value blink. In such cases, the the optimum exposure, according to the ambient light conditions. pictures can be taken but they may out too bright or too dark.
  • Page 39 Aperture Priority AE (Av) NOTE: Set the desired aperture, and the camera selects the optimum shutter The shutter speed value will blink when speed accordingly. Use the Av mode to maintain specific control over the subject is too dark or too bright for depth of field, a correct exposure.
  • Page 40 Manual Mode (M) NOTE: This mode is used to set both the aperture and shutter speed for total When the exposure is compensated exposure control. Varying shutter speeds can be selected, including in the Manual mode, the difference “bulb”, “tIME” and manually from 60 mins to 1/4000 sec. Aperture between the metered value and the compensated value will be displayed values can be set from maximum to minimum aperture.
  • Page 41 One-push Shift Function When the difference between the set value and metered value is displayed on the viewfinder LCD in the Manual “M” mode, press the AEL button for approx. 1 second and the camera will automatically adjust the shutter speed to achieve the correct exposure based on the set aperture value.
  • Page 42 Exposure Mode Lens Mode Shutter speed X-Sync 1/4000-1/1600 1/1600-1S 1S - 30S+ 1/4000 - 1/1600 1/1600 - 1S 1s - 30S+ Program Leaf Shutter — — — — Focal Shutter — 1/90 - 1S — Leaf Shutter — — — —...

  • Page 43: Flash Photography

    3.10 Flash Photography The Phase One 645DF+ is equipped with a horizontal focal-plane metal shutter and it is also compatible with leaf shutter lenses. The focal-plane shutter provides higher shutter speeds than that of leaf (central) shutter lenses. Focal-plane shutters allow you to shoot fast enough to freeze moving subject matter.
  • Page 44 Phase One 645DF+ features TTL (Through The Lens), OTF (Off The Metz 3952 functions Film) and electronic flash exposure metering. A flash sensor located inside the camera body reads the flash light reflected off the surface of Charging completed indicator in When charging of the flash is completed, a charging completed viewfinder flash icon...
  • Page 45 TTL flash Exposure mode Shutter speed Aperture With TTL flash photography, the reflection of the flash is metered and Program AE Automatically set by Automatically set by the intensity of the flash is adjusted automatically, which can mean TTL camera to 1/60 sec. camera when the metered flash photography may not be suitable for all shooting conditions.

  • Page 46: Flash Compensation Settings

    3.11 Flash Compensation Settings   By combining a Metz flash and the SCA3952 adapter, the camera adjusts for flash. It can be adjusted within ±3EV in increments of 1/3 steps. 1. Turn on the Power Install the SCA3952 adapter on the Metz flash, and attach it to the camera.
  • Page 47 Flash Photography with Electronic Flash Models other than Metz units 1. To use a grip type flashgun or a strobe with other electric contacts than X contact, connect the sync cord to the camera’s sync terminal. (See note below about flashes designed exclusively for other makers’ cameras.) 2.

  • Page 49: Introduction To The Iq2 Series Digital Back

    Introduction to the IQ2 Series Digital Back System Overview The Phase One IQ2 Series Digital Back is designed to fit on the Phase One 645DF+ as well as several other brands or models of medium format cameras. The IQ2 Series include four different models; the IQ280, IQ260 and the IQ260 Achromatic, and the new IQ250.

  • Page 50: Quick Start (Shooting Untethered)

    Quick Start (shooting untethered) 1. Connect an IQ2 digital back to the camera and install the focusing screen if applicable. 2. Charge the batteries (See page 16) then insert them into the camera. 3. Insert a CompactFlash card into the IQ2 Back. 4.

  • Page 51: General Hardware Setup

    General Hardware Setup Powering up the IQ2 back After an IQ2 back is connected to a camera body, insert a battery and it will automatically turn on. The back is switched on/off by pressing the power button located below the IQ2 back display. ISO Settings The IQ280 back has an ISO spectrum from ISO 35-800.

  • Page 52: Indicator Lights

    Indicator Lights IQ2 Series digital backs feature two main red and green LEDs located below the bottom left corner of the screen. When the IQ2 back is activated, the green and red LEDs will flash shortly and a beep will sound to indicate that it is ready to capture.

  • Page 53: Tethered And Untethered Operations

    Tethered and Untethered Operations Untethered: An IQ2 Series back can be operated as a fully portable battery powered unit. Image files are shot and transferred to a Com- pactFlash card which is inserted in the CF-card slot on the left side of the camera back.
  • Page 54 FireWire 800 cable. Find out more on the Storage Mode on page 91). Online Support For more information on shooting tethered with Capture One please consult the online user guide available in the Capture One Help menu or go direct to http://help.phaseone.com/en/CO7/Capture/Tethered- Shooting.aspx...
  • Page 55 CompactFlash Card Usage It is important to follow a few simple guidelines to help avoid loss of data when working with CompactFlash cards, card readers and digital cameras. Phase One recommends that you test-drive all new CompactFlash cards including the one that comes with your IQ back. By performing an initial test to verify that the capture files are stored properly on the card and can be accessed on a computer you will avoid unpleasant surprises on location or when you return from a job.

  • Page 56: Secure Storage System (3S)

    Secure Storage System (3S) You can always be sure that your data is safe when working with memory cards in a Phase One IQ2 back. The Phase One Secure Storage System (3S) provides the industry’s safest memory card handling. The 3S technology automatically checks your card’s file structure every time it is inserted into the IQ2 back.

  • Page 57: Formatting Your Memory Card

    Formatting your Memory Card Most CompactFlash cards are preformatted and ready for use in the IQ backs. However, Phase One recommends that all cards should be formatted in the IQ back to ensure their optimum performance. Memory card formatting is done in either FAT 16 or FAT 32 depending on card size.

  • Page 58: Navigating The Iq2 User Interface And Menu System

    Navigating the IQ2 User Interface and Menu System Home Screen The IQ2 Home Screen is the first view users will see as soon as the back is switched on. This is the back’s default screen and the starting point in which to negotiate the menu system. It enables direct access to the Play mode to view captured images, the Menu to configure the IQ back’s setup and ISO sensitivity and White Balance (WB) settings.

  • Page 59: Menu Buttons

    Menu Buttons The IQ2 back is equipped with four external buttons. The buttons will Play change function to match the menu shown on the display. The four external buttons are assigned to the Play, Menu, ISO and WB options when the IQ2 back is in its default Home Screen position. (See image top left) Menu The function of the four buttons changes once one of the Menu, ISO and...

  • Page 60: Touch Screen Operation

    Touch Screen Operation All four IQ2 models incorporate a 3.2 inch touch screen. The screen lets you zoom, pan and browse through images fast and it is easy to navi- gate between different menus and features. The IQ2 series backs are designed with invisible controls that are context sensitive and appear only when specific areas of the screen are touched.

  • Page 61: Iso

    4. Remember that when you make a long exposure, the digital back will make a black calibration after the capture of the same duration as the exposure. Find more detailed information - Search for “Long Exposure” on: www.phaseone.com/support...

  • Page 62: White Balance

    White Balance Push the lower right button or tap WB on the Home Screen. You will be presented with the back’s White Balance settings. Scroll up and down and tap the screen to select the desired setting. A green check mark will appear next to your chosen setting and you will automatically return to the Home Screen.

  • Page 63: Custom White Balance

    Custom White Balance To create a new Custom White Balance, first capture a reference White Balance image. (Try to use a gray card or neutral white surface). Next, select the Context menu and press the White Balance Picker icon. (Ensure that the image is in full screen view) Zoom in and pan to a desired part of the image and then tap on a white/ grey area to create a custom WB.

  • Page 64: Live View

    Live View Live View on the 645DF+ is supported in Manual or Aperture Priority mode only. Live View in X, Tv and P mode is not supported. Starting Live View 1. Live View is started from the Contextual menu pop-up in the lower right corner of the IQ2 display 2.
  • Page 65 Select the new grid option “Custom Cross” 1. In the Grid Mode dialog scroll down and select “Custom Cross” Moving Custom Cross lines When Custom Cross is chosen, the grid lines can be individually selected and moved around. 1. Press and hold on the grid line you want to move (you will get a confirmation beep).
  • Page 66 Virtual Horizon Tool in Live View 1. From Inside Live View, click on the contextual menu 2. Click on the top right button in the contextual pop-up. This will bring up two bars, one below the Live View, and one to the right. Now you can align both roll and pitch using the indication on the bars, and you will get a clear indication when things are level.

  • Page 67: Play Mode

    Play Mode Play mode is used to review captured images. Its touch screen interface makes it easy to delete, zoom, pan and browse through images quickly. Push the upper left (external) button or tap Play on the Home Screen to enter this mode.

  • Page 68: Play Mode Views

    Play Mode Views There are three Play mode views: Full Screen, Tool View and Thumbnail View. Full Screen displays an image in its entirety. A Zoom Slider, Context menu too and zoom level percentage will automatically disappear after a few sections of inactivity. The default Tool View features five tools that include an Exposure Warning, a Focus Mask, an Exposure Histogram, an Alignment tool and File Info.

  • Page 69: Play Mode: Context Menu

    Play Mode: Context Menu Press the Context Menu button in the corner of each Play mode. All Context Menus feature three navigation buttons. Select one of the three bottom items (from left to right) to switch to an alternative view. The Full Screen Context Menu features a Delete/Rating, Exposure Warning, Custom White Balance Picker and Grid options.

  • Page 70: Info Bar

    Info Bar The bottom of the screen features an Info Bar that displays a Power Indicator that shows the remaining battery capacity and a FireWire or USB3.0 icon if the IQ2 is being used to shoot tethered. The Power Indicator will start blinking when it runs low to warn users that the battery needs to be replaced before capturing any more images.

  • Page 71: Delete And Rating

    Delete and Rating Choose the top left button in the Context . A grey bar will appear at the bottom of the screen when reviewing in Full Screen or in the Tool View. Tap the dot in the grey bar to select a star rating from 1 to 5. Alternatively, swipe your finger along the bar to choose a star rating.

  • Page 72: Delete In Thumbnail View

    Delete in Thumbnail View Select the trash icon to Delete images in the Thumbnail View. A trash icon will appear in the Info Bar at the bottom of the screen. Tap each individual thumbnail that you want to delete. (A small red trash icon will appear in the top left corner of the thumbnail).

  • Page 73: Grid

    Grid Select the Context Menu and choose the (circled) icon to overlay a grid on captured images in Full Screen, Tool View and Play modes. Press the Grid icon in Context Menu again to deactivate the Grid. Long press the (circled) icon in Context Menu to configure the Grid. It is possible to select a different Grid Mode, Line Style and Color.
  • Page 74 The Grid Mode provides numerous style combinations. The Rectangular option can be configured to display up to 10 horizontal and vertical lines. In this example (left) the Color has be changed to yellow and the Line Style is Dotted. The Golden Ratio grid helps photographers compose images within some classic proportions.

  • Page 75: Tools

    Tools Play mode features five Tools to aid the capture and the review of images. The Tools include a Exposure warning, a Focus Mask, a Exposure Histogram, a Alignment tool and File Info. Tap the screen to scroll vertically through the tool selection. Tap the screen on the Alignment tool and Histogram to make them appear full screen.
  • Page 76 Alignment The Alignment tool helps keep the attached camera in a perfect horizontal or vertical position. Press the Alignment tool once to make it appear full screen. Tap the screen or press the upper left (external) button once to return to the Tool view. Long press Alignment tool to access a dialog box to alter the Tool’s settings.
  • Page 77 Exposure Warning Exposure Warning tool highlights areas of a captured image that are overexposed. Tap the Exposure Warning tool once to display any burned out areas of an image with a (default red) color overlay. Tap the Exposure Warning tool again to remove this overlay from view. Long press the Exposure Warning to access a dialog box to alter the Tool’s settings.

  • Page 78: Menu

    Menu The Menu can be accessed by either pressing the lower left exterior button or by tapping Menu directly on the Home Screen. The Menu can be navigated by using the touch screen functionality or by following the Enter, Exit, Up and Down arrows and pressing the corresponding buttons on the IQ2 back.

  • Page 79: Setup C1, C2 Or C3

    645DF+ Custom Functionality When using the IQ back on the 645DF/DF+ camera custom functions are available for setup from the IQ screen. The custom functionality is accessed using Menu > 645 DF. The 645DF/DF+ camera body needs to be switched ON to access this menu. Go to page 119 for more information about setting up the 645DF/DF+ custom functions from the camera body itself.

  • Page 80: Custom Function Set

    7.1.5 Custom Function Set Assign the letter A, B or C to the chosen exposure mode settings in the Custom Function Set menu. N.B. It is possible to see the selected Exposure modes settings from the Setup C1, 2, 3 menu without having to go into the next menu option. 7.1.6 Setup Custom A, B or C The Setup Custom menu enable users to adjust and select 19 camera parameters to attain a precise custom camera set-up.

  • Page 81: Battery Type

    7.1.10 Battery Type The Phase One 645DF+ can be powered by three different battery types. Select the battery type that you want displayed on the external LCD panel to ensure the remaining battery charge is correctly displayed. 7.1.11 Bracketing Select 3, 5 or 7 Exposures as the bracketing width for the auto bracketing setting.

  • Page 82: Ael / Afl Button

    7.1.15 AEL / AFL button Interchange the operations of the front and rear AEL (Auto Exposure Lock) and AFL (Auto Focus Lock) buttons. Find out the location of these buttons on page 21. 7.1.16 Release Button Set the AE Lock and AF operations when the shutter release button is half-pressed.

  • Page 83: Afl

    7.1.18 AFL Set the function of the AF Lock button with one of the following options: While Pressed: Press the AFL to lock focus once. AF operation: This activates AF every time the AFL button is pressed. (It performs the same operation as half-pressing shutter button). Continuous: Locks AF until the AFL button is pressed again.

  • Page 84: Flash Sync

    7.1.21 Flash Sync The Flash Sync (synchronization) can be altered to fire at the beginning (First Curtain) or the end (Second Curtain) of an exposure. The First Curtain mode is the default setting as it is the most commonly used. 7.1.22 Beep Choose when an audio beep is sounded from the Phase One 645DF+ camera body.

  • Page 85: Shutter In M/X

    7.1.24 Shutter in M/X This menu is applicable when a Phase One 645DF+ camera is used in either M or X exposure modes with a leaf shutter lens. Using the X (flash synchronization) mode limits the shutter speed range from 1/60th second to 1/125 second irrespective of the selected (Mixed, Leaf or Focal Plane) mode.

  • Page 86: Active Custom Set

    This menu screen displays the make and model of the camera and lens being used with the IQ2 back. Remember to check the camera firmware number against the latest version. Go to www.phaseone.com/ downloads to get latest firmware version for the 645DF+ camera and...

  • Page 87: Format Card

    “PhaseOne[serial number]” 2. From the iPad®/iPhone®: General>WiFi>Connect to network: “PhaseOne[serial number]” 3. Start Capture Pilot and select the “PhaseOne[serial number]” under Local Servers N.B In the iPad Wi-Fi settings use the > Icon to unfold the network settings of the IQ2 network –...
  • Page 88 Connecting Capture Pilot to your IQ2 when using router: 1. From General>WiFi: Select same network as selected on IQ2 2. Open Capture Pilot. 3. Select “PhaseOne [seial number]” under Local Servers in Capture Pilot To reset all WiFi settings, including all network settings and pin code use: Menu>Restore to Default...
  • Page 89 Enabling Location Data in Capture Pilot Location data is enabled inside the menu WiFi > Settings > Capture Pilot > Capture Pilot Permissions 1. Set the “Geotag captures” to “On”, to let the IQ2 back geotag captures when connected wirelessly with Capture Pilot. 2.

  • Page 90: Power Management

    Power Management The Power Management menu option has three criteria to help preserve battery life and help keep operating temperatures low when working in hot conditions. Display Off Time Switch off the IQ’s display screen after 5 seconds, 20 seconds, 1 minute, 5 minutes.

  • Page 91: Power-Up And Down From 645Df

    Power-Up and Down from 645DF+ 1. Turn on the 645DF+, and the IQ2 back will automatically power up. 2. Turn off power on the 645DF+ and the IQ2 back will power down after 10 seconds, unless it is interrupted manually on the screen or by pushing a button.

  • Page 92: File Format

    File Format An IQ back can save files in two different formats; IIQ Raw L and IIQ Raw S. IIQ stands for Intelligent Image Quality Raw. IIQ L is the default setting and it is a lossless capture format. IIQ S is a smaller file that is not a totally lossless format.

  • Page 93: Auto Preview Mode

    7.11 Auto Preview Mode The Auto Preview option can be switched On or Off. Select On to revert to a Play mode when shooting. Select Off to remain on the same display. 7.12 Display The Display menu option has four options: Brightness, Display Off Time, Splash Screen and Background Image.

  • Page 94: Splash Screen

    Splash Screen Follow the proceeding steps to customize the splash screen on the IQ back. 1.Save the image file to a maximum 800 x 480 pixels resolution (landscape format). A smaller file will also be accepted and placed in the center of the screen with the surrounding space filled with black. 2.

  • Page 95: Background Image

    Background Image Customize the background image on the IQ back Home Screen. 1.Save the image file to a maximum 800 x 480 pixels resolution (landscape format). A smaller file will also be accepted and placed in the center of the screen with the surrounding space filled with black. 2.

  • Page 96: Ready Beep

    7.13 Ready Beep The IQ back will emit a small audio beep after every capture is taken. This Ready Beep signals that a capture has been completed, and that the IQ back is ready for next shot. The Ready Beep can set to either None, Single or Multi. The default setting is Single.

  • Page 97: Restore To Default

    1. Download the latest firmware update from www.phaseone.com/ downloads 2. Transfer the firmware (.fwr) file to a CompactFlash card and insert it into the IQ’s card slot. Go to Menu > Firmware > Update Firmware. It is not possible to update the firmware unless the digital back battery is fully charged.

  • Page 98: Restore Firmware

    Restore Firmware Select Restore Firmware to revert to the factory firmware version. (Cam- era settings are not affected). Dump Log Select Dump Log to transfer Log information to a CompactFlash card for analysis. 7.18 About The About menu displays technical information about the hardware and embedded firmware in the IQ back.
  • Page 99 IQ2 Digital Back Overview IQ280 IQ260 IQ260 Achromatic The IQ280 is the pinnacle of image The IQ260 goes beyond the The IQ260 Achromatic offers pure quality. The highest resolution norm; it’s made for extraordinary black and white images; no filters captures of any commercially captures.
  • Page 100 IQ2 Digital Back Overview Continued IQ250 The IQ250 has the widest useable ISO range of any high-end digital back. With a 44 x 33 mm CMOS sensor, it can deliver high quality, low noise captures up to ISO 6400 and long exposures of up to one hour.

  • Page 101: Iq280 Digital Back Specifications

    IQ280 Digital Back Specifications 80 megapixel resolution for extreme detail level 645 full-frame CCD Built in wireless technology Extreme 13 f-stops dynamic range 1.15 megapixel resolution 3.2” display with vibrant colors Touch screen functionality to pan, browse and zoom up to 400% IMAGING TECHNOLOGY OPERATING CONDITIONS Sensor...

  • Page 102: Iq260 Digital Back Specifications

    IQ260 Digital Back Specifications 60 megapixel full-frame 645 CCD Designed for long exposure (up to one hour) Built in wireless technology Extreme 13 f-stops dynamic range 1.15 megapixel resolution 3.2” display with vibrant colors Touch screen functionality to pan, browse and zoom up to 400% IMAGING TECHNOLOGY OPERATING CONDITIONS...

  • Page 103: Iq260 Achromatic Digital Back Specifications

    IQ260 Achromatic Digital Back Specifications 60 megapixel monochrome full-frame 645 CCD Designed for pure Black and White Photography Built in wireless technology Extreme 13 f-stops dynamic range 1.15 megapixel resolution 3.2” display with vibrant colors Touch screen functionality to pan, browse and zoom up to 400% COMPUTER MINIMUM REQUIREMENTS IMAGING TECHNOLOGY...

  • Page 104: Iq250 Digital Back Sepcifcations

    IQ250 Digital Back Specifications 50 megapixel CMOS sensor Amazing ISO sensitivity (ISO 100 - 6400) Designed for long exposure (up to one hour) Built in wireless technology Extreme 14 f-stops dynamic range 1.15 megapixel resolution 3.2” display with vibrant colors Touch screen functionality with fluid and responsive live view IMAGING TECHNOLOGY...

  • Page 106: Advanced 645Df+ Camera Functions

    Advanced 645DF+ Camera Functions NOTE: After taking pictures using Exposure Compensation feature, Exposure Compensation sure return exposure compensation dial to the 0 position. In situations providing extreme high contrast, the resulting photograph may be under or overexposed. When this occurs, use the Exposure The exposure compensation feature is Compensation function.

  • Page 107: Ae Lock

    AE Lock AE lock function is useful in a number of shooting scenarios but is particularly useful when capturing panoramic images where a consistent exposure is needed to seamlessly stick images together in post production. The AEL button will lock the Auto-exposure value as the photo is being recomposed.

  • Page 108: Metered-Value Difference Indicator

    Metered-Value Difference Indicator Keep pressing the AEL button [A] and the difference between the metered exposure value and the exposure of the new composition will be displayed on the viewfinder LCD. This function can be used to see if an object of very different brightness levels can be properly photographed.

  • Page 109: Auto Bracketing

    Auto Bracketing NOTE: Auto Bracketing can be used when it is difficult to determine your When you want to cancel the auto- exposure compensation value. This function automatically captures bracketing mode, turn the rear dial to change “On” to “OF” different exposure variations in succession.
  • Page 110 Single-Frame Mode (S) AE Settings Under Auto-bracketing Mode Press the shutter release button for each shot. The camera meters Exposure Mode Setting adequate exposure value for each shot and performs Auto Bracketing. Program AE Shutter speed varies The camera stays in the Auto Bracketing mode until you cancel the Auto Bracketing mode manually.

  • Page 111: Taking Photos With The Mirror Up

    Taking Photos with the Mirror Up NOTE: Auto bracketing exposures can be This function prevents mirror-caused vibrations which may blur an image made when the auto bracketing mode when shutter speed is slow. A electromagnetic Cable Release RE401 is set before taking photos with mirror (optional) is recommended to use with the mirror-up function.

  • Page 112: Mirror Up Delay

    Mirror Up Delay To change from the Self-timer to the Mirror Up setting, press the shutter button so the mirror goes into the upright position. Once the set time has expired the shutter will release, and the mirror will return to the lowered position.

  • Page 113: Bulb Mode & Long Exposure

    Bulb Mode & Long Exposure NOTE: To make an exposure longer than 30 seconds, adjust the shutter speed camera electronically to “B” (bulb). In order to prevent camera shake, use the RE401 or RS402 controlled even during exposures, it is recommended to replace batteries electromagnetic shutter release and tripod.
  • Page 114 Front/Rear Dial Lock Mechanisms When the Electronic Dial Lock is On, all currently set values in Av NOTE: The setting will be stored after one (Aperture Priority AE), Tv (Shutter Priority AE) and M (Manual mode) second. cannot be adjusted with the front or rear dials. This prevents accidental change of shutter speed or aperture values.

  • Page 115: Self-Timer Mode

    9.10 Self-Timer Mode The default setting for the Self-Timer mode to release the shutter is 10 seconds after the shutter release button is pressed. The self timer lamp flashes slowly for the first 7 seconds, and then flashes quickly for the NOTE last 3 seconds before the shutter is released.

  • Page 116: Interval Photography

    9.11 Interval Photography Interval photography can used for a variety of shooting scenarios such as such as to capture cloud movement or a flower coming into bloom. NOTE: Repeat turning (according to the number of times) will lead to a 1.

  • Page 117: Depth Of Field

    9.12 Depth of Field Depth of field (D.O.F.) is defined as the zone of sharpness before and behind the plane of focus. It depends on distance to subject, focal length of lens, aperture setting and distance the lens is focused at. In addition to visual observation via the depth of field preview button, the D.O.F.

  • Page 118: Infrared Photography

    9.13 Infrared Photography Infrared Photography is complicated when using digital backs, as the digital back is adjusted to match the viewable light perfectly. Use a dedicated digital back for infrared photography. The IQ back needs to be adjusted to work properly for infrared photography. DO NOT TRY THIS AT HOME! –...

  • Page 119: Custom Function

    9.14 Custom Function The custom functions can store separate three different camera set- ups. When at C-00, chose 1 (A), 2 (B), or 3 (C) to store a specific set of user function selections for the group of custom settings from C-01 to C-19.

  • Page 120: Types Of Custom Functions

    9.15 Types of Custom Functions C-04 Battery Type [batt] This function is used to set the batteries used in the camera so that C-00 Custom functions profile [SEL] the remaining battery charge will be displayed correctly on the external 0: None (default=0) LCD panel.
  • Page 121 C-15 Flash sync. [FLSY] C-10 Release button [HALF] When shooting moving subjects with flash you can set the synchronization This function is used to set the AE lock and AF operations when the timing. This allows you to have the flash fire at the beginning of the shutter release button is half-pressed.
  • Page 122 C-20 AF Fine Tune Use the front dial to scroll to Custom function 20. Use the rear dial to fine-tune the focus point on a subject that is closer or further away from the camera. 50: Neutral factory calibration Minus: Move AF point closer Plus: Move AF point further away C-97 Support for Mamiya ZD backs This function should ONLY be activated when shooting on a Mamiya...
  • Page 123 Custom Functions overview Item Initial setting (0) C-00 Custom Function User Last used User A User B User C C-01 Steps of aperture, shutter speed, Exposure compensation 1/3 EV step 1/2EV step 1 EV step C-02 Aperture setting after lens change Previous aperture value Maximum aperture Minimum aperture setting...

  • Page 124: Custom Dial Modes C1, C2 Or C3

    9.16 Custom Dial Modes C1, C2 or C3 Mode dial options C1, C2 and C3 can be used to store preferred settings. These settings can be changed instantly to suit the photographer's needs. Users can change the settings on the camera body or via an IQ back.

  • Page 125: Lenses And Multi Mount

    9.17 Lenses and Multi Mount When it comes to lenses, Phase One provides the widest range of possibilities to ensure photographers get the most creative freedom from their Phase One camera. This chapter looks at some possible lens systems. However, it is worth noting that there are even more applicable lenses available than presented in the upcoming pages.

  • Page 126: List Of Alternative Lenses

    9.20 List of Alternative Lenses Producer Specs Limitations Adaptor/Mount Notice Arsat MC Arsat 30 f.3,5 fisheye Pentacon six Arsat MC Arsat 45 f.3,5 Wide Angle Pentacon six Recommended Digital lenses Arsat MC PCS Arsat 45 f.3,5 Pentacon six Shift Arsat MC PCS Arsat 55 f.4,5 Pentacon six Shift...

  • Page 127: Maintenance

    10.0 Maintenance NOTE Since the Focusing Screen’s surfaces The Phase One 645DF+ generally needs very little maintenance. But are soft and easily damaged, handle this is a professional tool and should be treated with care and caution. them carefully. Always do test shots before a photographic session if the camera for Never touch the surface with bare any reason has not been used for a long period of time.

  • Page 128: Battery Socket

    10.2 Battery Socket Never leave batteries in the socket if the camera or back is not planned to be used for longer periods. NOTE: Make sure to re-install the empty Keep contacts clean and dry at all times. battery case into the body. The empty battery cassette must be External Battery Socket inserted into the body.

  • Page 129: Camera Display Error-Notification

    10.4 Camera Display Error-Notification When Any of These Displays Appear When Any of These Displays Appear... LCD display Causes and remedies Problems Remedies The camera caution mark will blink if the camera body detects an abnormality.

  • Page 130: Lens Maintenance

    10.5 Lens Maintenance Never touch the inner optics of the lens with your fingers. Keep the inner optics perfectly clean with air, a lens brush or the dry cloth delivered with the lens. Do not touch the contacts. Keep the contacts clean with either a dry cloth or by using a fibreglass brush.

  • Page 131: 645Df+ Camera Body Specifications

    10.8 645DF+ Camera Body Specifications Open platform for maximum choice and compatibility Durable, proven platform for secure operation Ergonomic handling and ease of use Use Phase One digital lenses, Mamiya AF/AFD lenses or Hasselblad V lenses Exposures from 1/4000s to 60 minutes Flash synchronization up to 1/1600 sec.

  • Page 132: Phase One 645Df+ Housing Specification

    10.9 Phase One 645DF+ Housing Specification Camera type : 6x4.5cm format, electronically controlled focal-plane shutter, TTL multiple mode AE, AF single lens reflex Flash control : TTL direct flash control, supports Metz SCA3002 system (SCA3952 Adapter) Actual Image size: 56x41.5 mm Mirror up shot : Select by pressing the mirror up button.

  • Page 133: Software

    Please go to http://help.phaseone.com/en for further information regarding Capture One. (This online Users Guide can also be found under the Help menu on Windows and Mac). A PDF of the Capture One User Guide can also be found on the USB memory stick that came with you IQ back.

  • Page 134: Main Accessories

    12.0 Main Accessories V-Grip Air vertical grip he Phase One V-Grip Air is the first vertical grip with an integrated flash trigger that allows sync speeds up to 1/1600s. The V-Grip Air offers enhanced camera handling to owners of a Phase One 645DF+ camera system through identical controls in portrait orientation.
  • Page 135 L-Bracket Continued The L-Bracket features an Arca Swiss type quick release mounting on both Portrait and Landscape position. Whether the camera is mounted in vertical or horizontal position the lens center stays in exactly same position. The square Arca Swiss type shoe can be used with all Arca Swiss compatible quick release and screw-on clamps.
  • Page 136 Digital back battery The Hähnel dual battery charger will charge two 7.2V digital back batteries simultaneously with clear numerical indication of percentage charged. The charger comes with an international power outlet adaptor for compatibility with power outlets all around the world. Part # 70510 Hähnel Twin PRO charger for P+ and IQ Backs Part # 30900089 Phase One P+ and IQ battery (2900 mAh) Profoto air transceive...
  • Page 137 Remote release cable The Phase One Electromagnetic release cable connects to the multi- pin connector on the side of the 645DF+. It lets you trigger the camera electronically from a distance of either 1 meter (3.2 ft) or 5 meter (16.4 ft).

  • Page 138: End User Support Policy

    Pro software, including license and activation issues, please contact technical support through our website. If you are not a registered user, please sign up Please check www.phaseone.com for the latest updated support policy. Worldwide Dealer Network At Phase One we think globally but act locally. Phase One’s products are sold through a worldwide network of dedicated and competent local partners to make after-sales support convenient for you.

  • Page 139: Web Resources

    Phase One offer users a host of online resources including inspire, enthuse and inform. Find detailed information including User Guides and manuals about Capture One or our Digital Backs from www.phaseone.com Knowledge Base Phase One’s searchable Knowledge Base at http://support.phaseone.

  • Page 141: Appendix: Open Platform

    User Guide: Appendix 14.0 Open Platform – Freedom of Choice Phase One’s Open Platform policy delivers maximum choice and compatibility with a wide range of different camera platforms. This section covers the IQ back’s compatibility with the Hasselblad V and H series, Mamiya RZ67, Phase One 645, Mamiya 645, Contax 645 and View Camera solutions.

  • Page 142: Iq2 Back And Phase One 645Df/Df

    14.1 IQ2 Back and Phase One 645DF/DF+ The IQ back is fully integrated with the Phase One and Mamiya 645 camera series and functions as a part of the whole camera system. The IQ back communicates with the cameras through a fast internal electrical computer interface.

  • Page 143: More Details: Phase One And Mamiya 645 Series Cameras

    14.2 More Details: Phase One and Mamiya 645 Series Cameras Power Management and Shutter Latency The IQ CCD is put to sleep to reduce power consumption when it is not in use. The IQ needs to wake up before shooting and the timing of this wake up signal is referred to as the Latency.

  • Page 144: Mirror Up

    Mirror Up Exposure Mode Dial When using mirror up with the Drive Dial in the M.UP position ensure that the Exposure Mode Dial and the focus mode are both in Manual mode (M). It is not possible for the camera to measure light or focus when the mirror is up.

  • Page 145: Iq2 Back For Mamiya Rz67

    15.0 IQ2 Back for Mamiya RZ67 The IQ backs are compatible with the Mamiya RZ PRO II and PRO IID with the use of an adaptor plate. The 645DF+ version of an IQ back can be used on a Mamiya RZ PRO IID with a Mamiya RZ PRO IID adaptor plate.

  • Page 146: Viewfinder Masking

    15.2 Viewfinder Masking The image area of Mamiya RZ67 at 56x69.5 mm is larger than the size of the three IQ model’s sensors so it is necessary to insert a viewfinder mask. There are two different masks available for the Mamiya RZ67 according to which IQ is being used.

  • Page 147: More Details: Mamiya Rz67

    15.3 More Details: Mamiya RZ67 Mode Selector The mode selector on the trigger button should be turned to the white dot when used with the IQ back. The selector should be set to the orange dot to avoid draining the small battery when the IQ back is attached to the body and not in use.

  • Page 148: Iq2 Back For Hasselblad V Series

    16.0 IQ2 Back for Hasselblad V Series The Phase One IQ back can be mounted on a wide range of Hasselblad cameras including Hasselblad 555 ELD, 553 ELX, 501 CM and 503 CW. 16.1 Mounting the IQ Back on a Hasselblad V Series Cam- 1.

  • Page 149: Mounting A Viewfinder Mask On A Hasselblad V Series Camera

    16.2 Mounting a Viewfinder Mask on a Hasselblad V Series Camera The image area of a Hasselblad V camera body at approx. 6x6cm is a different size to the three IQ model’s sensors so it is necessary to insert a viewfinder mask. Hasselblad V series There are two different masks available for cameras...

  • Page 150: More Details: Hasselblad V Series

    16.3 More Details: Hasselblad V Series Sync Cable A sync cable is always connected from the lens to the small connector in the front plate on either the left or right side of the IQ back regardless of which Hasselblad V type camera used. Flash Lead Connection A flash cable is always connected to the F-connector on the IQ back with all Hasselblad V series cameras.

  • Page 151: Hasselblad 555 Eld

    16.4 Hasselblad 555 ELD Ensure that the shutter release on the front of the Hasselblad 555 ELD is in the DIG position when using a Phase One IQ back. If for any reason you have to use the 555ELD in Film position (E.g. If the DIG is not working) then set the IQ to Zero Latency.

  • Page 152: Hasselblad 553 Elx

    16.5 Hasselblad 553 ELX When using the IQ back on some Hasselblad motorized bodies (i.e. Hasselblad ELX or Hasselblad ELM series), a motor cable is supplied to enable users to fire the camera shutter from a computer using the Capture One Pro Capture button. (See circled button left). Cable Connections The cable is connected between the multi-connector on the IQ back and the DIN connector on the Hasselblad.

  • Page 153: Hasselblad 501 Cm And 503 Cw Without Winder

    16.6 Hasselblad 501 CM and 503 CW without Winder The Phase One IQ back can also be used with mechanical Hasselblad cameras such as the 501 CM and 503 CW. These cameras are operated in single shot mode via the shutter release button or a standard cable release.
  • Page 154 16.8 Cables shipped with IQ back for Hasselblad V Classic and Value Added backs come with all the cables needed for the specific camera platform. A Value Added back also comes with an additional 50300143 cable for use with large format and technical cameras.

  • Page 155: Iq2 Back For Hasselblad H Series

    17.0 IQ2 Back for Hasselblad H Series The Phase One IQ (H-mount) digital back is designed specifically for Hasselblad H1 and H2 cameras. 17.1 Mounting the IQ back on the Hasselblad H1/H2 1. Ensure that the mirror is up and the shutter is open. (This is the default position when no cassette is attached to camera body).
  • Page 156 17.2 Viewfinder Masking The image area of the Hasselblad H1/H2 cameras is 56x41.5 mm. A viewfinder mask is only needed for the smaller size of the IQ140 CCD that measures 44x33mm. Viewfinder masking is not necessary for IQ280 and IQ260 models as their light sensitive CCD measures 53.9x40.4 mm.

  • Page 157: More Details: Hasselblad H Series

    17.3 More Details: Hasselblad H Series Camera Display The Hasselblad H1/H2 incorporates a screen that displays information about the camera set-up. It shows the aperture value, AF mode, shutter speed etc. The Hasselblad H1/H2 will also display some IQ back information on this screen.

  • Page 158: Viewfinder Information

    Viewfinder Information The viewfinder information bar is located below the image area within the viewfinder display. It displays the camera’s exposure mode and values etc. It also includes a counter with the number of captures remaining on the storage media. (See top bar circled left). ‘99’ is the maximum number displayed.

  • Page 159: Flash Lead Connection

    Flash Lead Connection A flash cable is always connected to the Hasselblad H1/H2 camera body. The flash sync cable must not be connected to the camera back when used on a Hasselblad H1/H2. The flash sync connector on the IQ back is only intended for use with a Phase One FlexAdaptor or other large format adaptors.

  • Page 160: Iq2 Back For Contax

    18.0 IQ2 Back for Contax 645 The Phase One IQ (Contax mount) digital back is designed specifically for the Contax 645 camera. The IQ back communicates with the Contax 645 through a fast internal electrical computer interface and utilizes TTL phase difference detection type auto focus system. 18.1 Mounting IQ Back on a Contax 645 1.

  • Page 161: Viewfinder Masking

    18.2 Viewfinder Masking The image area of the Contax 645 camera is 56x41.5 mm. A viewfinder mask is only needed for the smaller size of the IQ140 CCD that measures 44x33mm. Viewfinder masking is not necessary for IQ280 and IQ260 models as their light sensitive CCD measures 53.9x40.4 mm.

  • Page 162: More Details: Contax

    18.3 More Details: Contax 645 Exposure Modes The Contax 645 manual (M) and semi-auto exposure modes (Av, Tv) are fully supported by the IQ back. Please note that Bulb is only supported on Contax/IQ back when used in conjunction with the Live View function.

  • Page 163: Ttl Flash

    TTL flash Using TTL flash with the Contax 645 camera and IQ back will result in a 2 f-stop overexposure. When using TTL flash, the exposure compensation on the flash unit must therefore be set to –2 f-stops. This overexposure happens because the CCD element reflects light differently than film and this cannot be communicated to the Contax.

  • Page 164: Cables Shipped With Iq Back For The Contax

    18.5 Cables Shipped with IQ back for the Contax 645 (Value added system only) Part# 50300143 Multi-connector to Lens sync (for use with Large format - in two shot mode) Part# 50300144 This cable is available as a separate purchase only. From multi-connector to mini jack female (for use to adapt older Large format wake-up cables or older Kapture Group one shot adaptor cables to connect to the multiport).

  • Page 165: Iq2 Back For View Cameras

    19.0 IQ2 Back for View Cameras The Phase One IQ back is compatible with most technical view cameras and large format cameras via camera interface adaptors. The IQ back supports most mechanical shutters and some electronic shutters from Horseman, Schneider and other manufacturers. Phase One Sleeping Architecture The Phase One Sleeping Architecture has been developed to help produce noise free exposures without the use of active cooling of the...

  • Page 166: Using The 2-Shot Release

    19.1 Using the 2-shot Release The IQ back can be used with mechanical shutters that can be fired twice within four seconds. The first release of the shutter activates the digital back; the second release is for the exposure. If the time limit of four seconds is exceeded, the camera gives a warning ‘beep’...

  • Page 167: Phase One Flexadaptor

    19.3 Phase One FlexAdaptor The Phase One FlexAdaptor is available for use with most large format cameras. The Phase One FlexAdaptor can automatically stitch two or three images together using the Stitch function in Photoshop. Please see the reference manual that comes with the FlexAdaptor for more details.

  • Page 168: List Of Focusing Screens And Viewfinder Masks

    20.0 List of Focusing Screens and Viewfinder Masks 20.1 Full Frame Focusing Screens or with Engraved Masking Part # 70756 Focusing Screen for Phase One 645 Camera (Standard Full Frame IQ280/IQ260) 70754 Focusing Screen IQ140 for Phase One 645 Camera 70757 Focusing Screen for Phase One 645 Camera SD402 (Checker Grid)

  • Page 169: Live View

    21.0 Live View The Live View function is intended for use when a camera is mount- ed on a tripod and the subject is stationary. Live View is ideal for use with technical view cameras in a studio environment or for architectural photography, where photogra- phers would ordinarily have to rely on an external viewfinder or a separate focusing glass / sliding adaptor.

  • Page 170: Starting Live View

    21.1 Starting Live View 1. Live View is accessed from the Context Menu (circled left) in the lower right corner. The Context menu is always visible on the Home screen. Tap the lower right corner of the screen to reveal the icon if it is hidden in some of the Play mode displays.

  • Page 171: White Balance

    21.2 White Balance 1. After selecting the White Balance Picker, tap the screen to se- lect a neutral area to calibrate the Live View. 2. If a precise white point is difficult to achieve in full screen view, slide a finger on the left side of the screen to zoom into to a part of the image that you want to use as white reference.

  • Page 172: Zoom

    21.4 Zoom Zoom into the live view by sliding a finger up in the left side of the screen. Double tap on the image to bring up a 100% view. If a zoom is already applied, double tap the screen to return to a full image view.

  • Page 173: Accessories

    21.7 Accessories Live View is easily overexposed in due to the high sensitivity of the IQ CCD sensor and its large size. It is sometimes necessary to take steps to prevent overexposure by either stopping down the aperture or by using a Neutral Density filters (ND filters ). ND filters are widely available, and it is even possible to get variable ND filters, that can prove invaluable when working in changeable outdoor ambient light.

  • Page 174: Live View Camera Support

    21.8 Live View Camera Support The Phase One IQ back Live View function is supported on both medium and large format view cameras. Find out how to operate Live View from the following list of cameras: View Cameras 1. Open the lens and select the desired aperture value. 2.

  • Page 175: Mamiya Rz67 Pro Ii/Pro Iid

    Hasselblad V 1. Activate Live View on the IQ back. 2. Select B (Bulb) mode. Mamiya RZ67 Pro II/Pro IID 1. Activate Live View on the IQ back. 2. Select B (Bulb) mode. N.B. It is only possible to change the aperture when the camera body is idle/not exposing.

  • Page 176: Notices

    Notices ©2014 Phase One A/S. All rights reserved. Made in Denmark. User guide version: 1.20 IQ2 Back firmware version: 5.11.36 645DF+ firmware: 2.27 Colorspace images created in CROMiX ColorThink. Photos by: Jens Honoré Stefan Kapfer Eugeni Pons Douglas Sonders Text By: The dedicated Phase One staff.

  • Page 177: Fcc Regulations

    FCC Regulations: § 15.19 (a)(3) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference thatmay cause undesired operation.

Table of Contents
