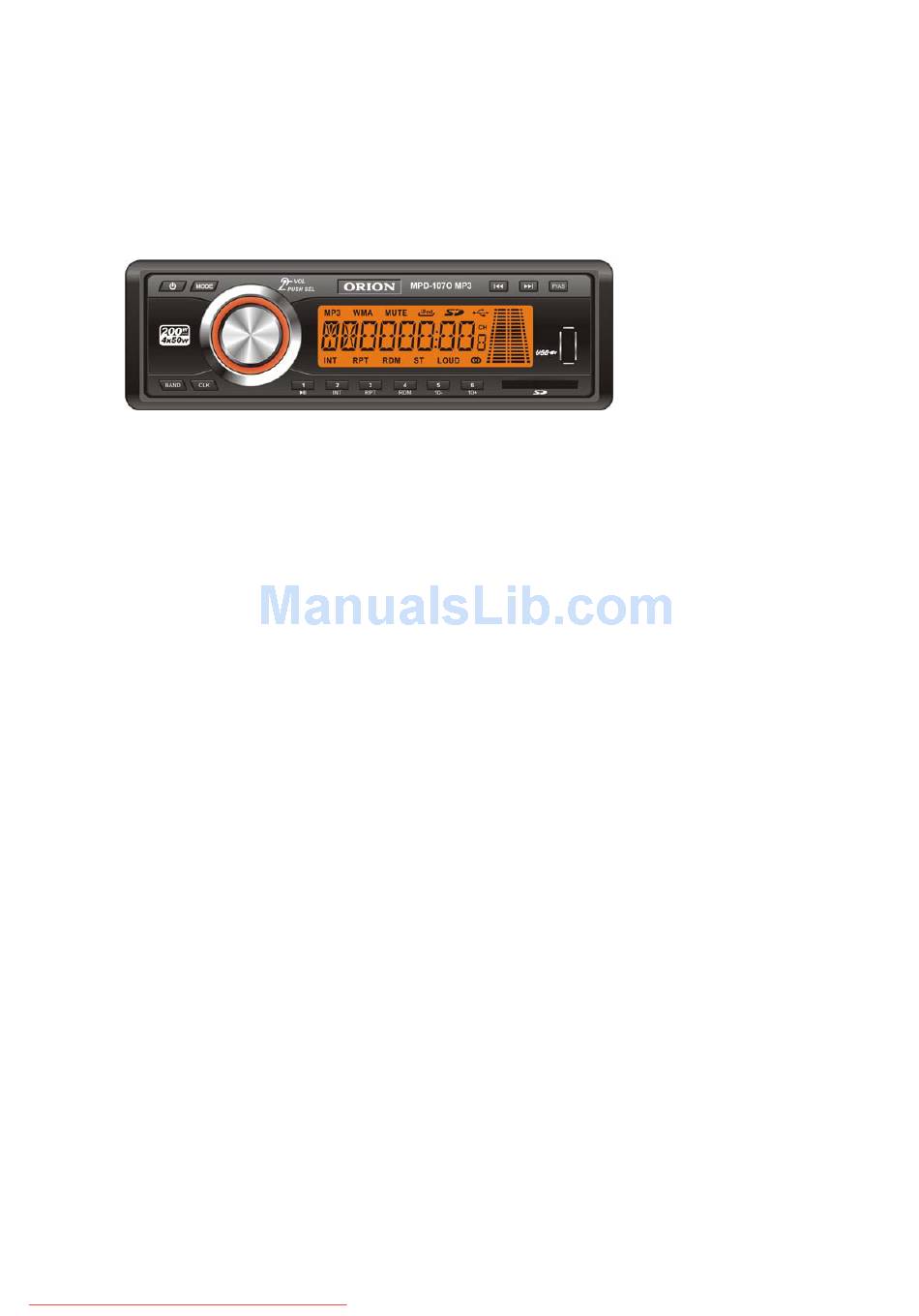

ORION MPD-107O
CAR MP3 RECEIVER
INSTRUCTIONS
WELCOME
Thank you for purchasing our product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain a longer service life from the unit.
PRECAUTIONS
·The unit can only be used in 12V negative ground system.
·Before installation, Please disconnect the car battery terminal to prevent short circuit.
·When replacing the fuse, be sure to use one matching the amperage rating stated on the original
fuse, otherwise the unit will perhaps be damaged.
·As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to
disassemble the cabinet.
·Do not allow metal or other things getting into the unit, otherwise the unit will perhaps be
damaged.
·If your car is parked in direct sunlight resulting in a considerable rise in temperature inside the car,
allow the unit to cool off before operation.
CONTENTS
Front Panel.....................................................2
Power On/Off...................................................3
Clock Setting....................................................3
Radio Operation.................................................4
Mp3 Playing ....................................................7
Downloaded from Caradio-Manual.com Manuals
Advertisement
Table of Contents
Related Manuals for Orion MPD-107O
Summary of Contents for Orion MPD-107O
-
Page 1: Table Of Contents
ORION MPD-107O CAR MP3 RECEIVER INSTRUCTIONS WELCOME Thank you for purchasing our product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain a longer service life from the unit. PRECAUTIONS ·The unit can only be used in 12V negative ground system. -
Page 2: Front Panel
SD Card playing..........9 Sound Adjustment..........9 Maintenance..........10 Trouble Shooting..........10 Front Panel 1. Power on/off 2. Mode choice 3. Volume adjustment/function menu choice 4. LCD display 5. Tune down/previous song 6. Tune up/next song 7. Tuning/auto store 8. USB interface 9. SD Card interface 10. -
Page 3: Power On/Off
1. MP3 play indicator 2. WMA play indicator 3. SD card indicator 4. USB indicator 5. Dynamic Level Indicator 6. Preset station indicator 7. FM stereo indicator 8. Loud indicator 9. Random play indicator 10. Repeat play indicator 11. Scan play indicator 12. -
Page 4: Radio Operation
1. Press the CLK button, the time displays on LCD. 2. Press and hold the CLK button (over 1 second), the "hour" and "minute" will flash in LCD. 3. Screw the knob toward the left side to adjust the "minute", and toward the right side to adjust the "hour". - Page 5 Auto tuning: Long press button more than 2 seconds, radio automatic upward or downward search broadcasting station, when searched the broadcasting station, it will stop search. Auto preset station 1. Press the BND button to choose a wave band among FM1 FM2 FM3 AM1 and AM2. 2.
-
Page 6: Mp3 Playing
·Repeat these steps, maximum 6 stations can be preset in each wave band. ·Preset again on the same wave band, the formerly preset stations will be replaced. Tune in the preset station 1. Press the BND button to choose a wave band among FM1 FM2 FM3 AM1 and AM2. 2. - Page 7 connected. 5. Song’s number, elapsed time and information about MP3 such as folder's name song's name singer's name and so on will be showed on the screen circularly. ·The details display depends on MP3 itself. ·No support for display of CHINESE. Press the following buttons to operate MP3 playing Buttons Functions ·Play/pause.
-
Page 8: Sound Adjustment
Repeat play ·The current song will be replayed when the 3/RPT button is pressed, the "RPT" indicator will be lighted. Press again to cancel. Random play ·It will randomly play all songs when the 4/RDM button is pressed, the "RDM" indicator will be lighted. -
Page 9: Trouble Shooting
Items VOL- VOL+ Reduce the volume of BASS Increase the volume of BASS Reduce the volume of treble Reduce the volume of treble Reduce the volume of right Reduce the volume of left loudspeaker loudspeaker Reduce the Volume of the Front Reduce the Volume of the Back Loudspeaker Loudspeaker... - Page 10 The CD can’t play The power connection is not correct Adjust the volume The volume control was lower Check the 12V and ground connections No power The vehicle ignition is switched off Switch the ignition to the The fuse is blown “ON”...
