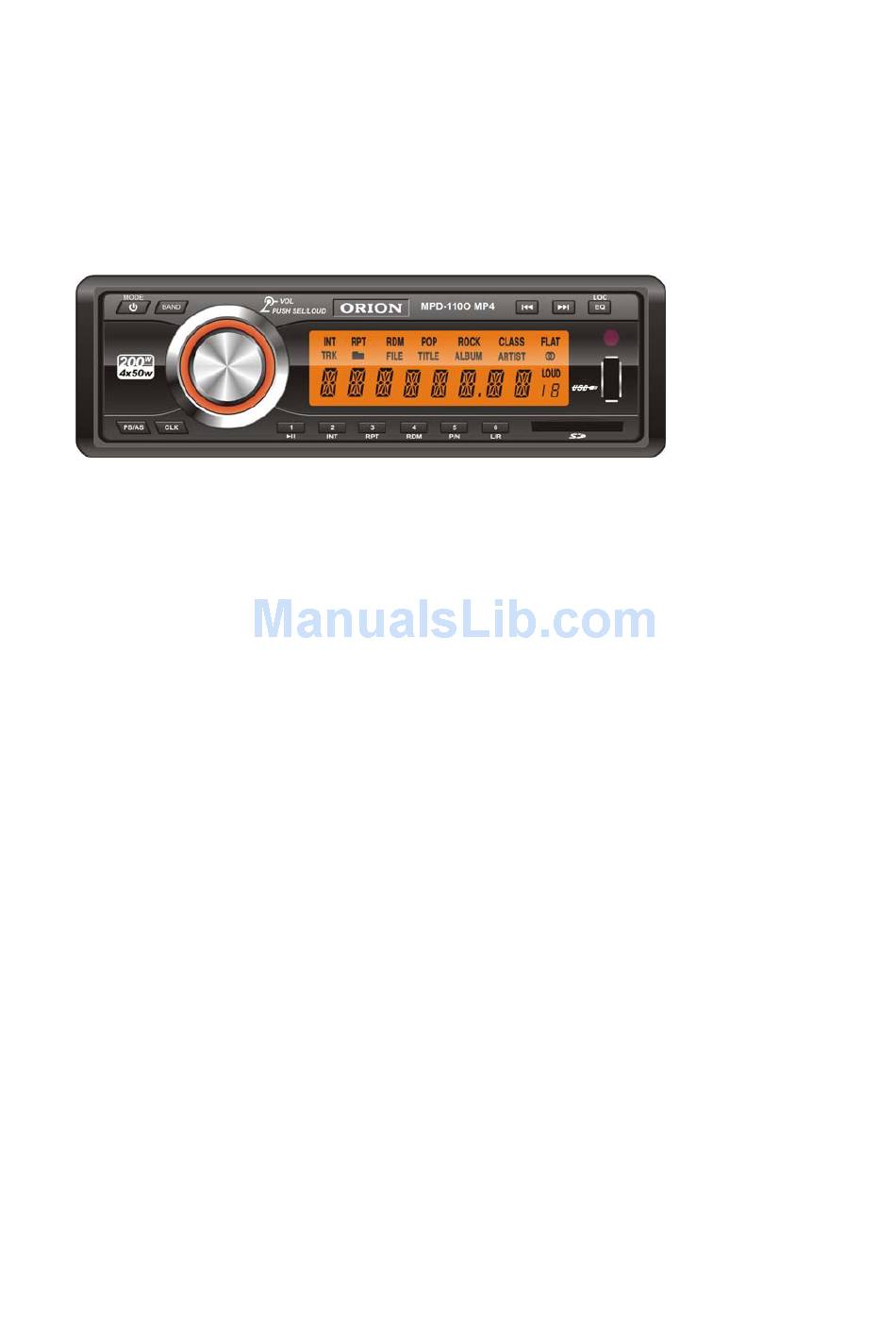

Orion MPD-110O
CAR MP4/MP3 PLAYER
INSTRUCTIONS
WELCOME
Thank you for purchasing our product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain a longer service life from the unit.
PRECAUTIONS
·The unit can only be used in 12V negative ground system.
·Before installation, Please disconnect the car battery terminal to prevent short circuit.
·When replacing the fuse, be sure to use one matching the amperage rating stated on the original
fuse, otherwise the unit will perhaps be damaged.
·As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to
disassemble the cabinet.
·If your car is parked in direct sunlight resulting in a considerable rise in temperature inside the car,
allow the unit to cool off before operation.
CONTENTS
Front panel.........................................................................2
Remote Controller...............................................................3
Basic operation...................................................................6
Radio.................................................................................7
MP4/MP3.........................................................................8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Orion MPD-110O
Summary of Contents for Orion MPD-110O
- Page 1 Orion MPD-110O CAR MP4/MP3 PLAYER INSTRUCTIONS WELCOME Thank you for purchasing our product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain a longer service life from the unit. PRECAUTIONS ·The unit can only be used in 12V negative ground system.
-
Page 2: Front Panel
Front Panel 1. Power/Mode choice 2. Band choice 3. Main display 4. Tune up/previous song 5. Tune down/next song 6. Loudness function/EQ choice 7. Remote control receiver hole 8. USB interface 9. SD Card interface 10. Preset station 6/Left&Right track choice 11. -
Page 3: Remote Controller
1. Scan play indicator 2. Repeat play indicator 3. Name of folder indicator 4. Random play indicator 5. Name of file indicator 6. POP indicator 7. Name of song indicator 8. ROCK indicator 9. Name of album indicator 10. CLASS indicator 11. - Page 4 (Power) Short press to power on, press again for playing pattern choice, long press is power off. 2. Band/ (SYS) button In radio mode, press it to select desired band; In Mp4/Mp3 mode, press it to select AUTO/PAL/NTSC. 3. Left/Right, Ahead/Back, Enter Button Press the buttons to select item left/right, ahead/back, and press the enter button to start.
- Page 5 played in the order you programmed. 7. LOC/RDM button In radio mode, press it to select between local and distant stations; in playing mode, press it to play randomly. /SEEK+&SEEK- Button Press the button to manual search, reverse, forward and song's choice. 9.
-
Page 6: Basic Operation
Null. 21. Title button Display the TITLE menu that is stored in Mp4. 22. Mute button Press to mute the sound, press again to restore the volume. Button Press to play/pause the playing. 24. Mode button Changing play mode. Basic Operation 1. - Page 7 1. Choose band Press the BAND button to choose a wave band among FM1 FM2 FM3 AM1 and AM2. 2. Manual/Auto tune Auto tune: Short press button, radio automatic upward or downward search broadcasting station, when searched the broadcasting station, automatic stopping search. Manual tuning: Long press button 3 Seconds Later, Display monitor Demonstrate that “MANUAL”, within 3 Seconds, Short press...
- Page 8 Note: This function can only under the table of contents to carry on. 6. Pause Press the button to pause the playing, the disk indicator on the LCD will pause too. press again to release this function. 7. Monitor display Press the OSD button only to display the passed time and the remainder time of a song.
