CheetaHub Classic-2040
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic-2040 and is the answer not in the manual?

Questions and answers

Amukelani
May 18, 2025

What is this for and how it works

User image 6829eb20a1139
1 comments:
Mr. Anderson
May 23, 2025

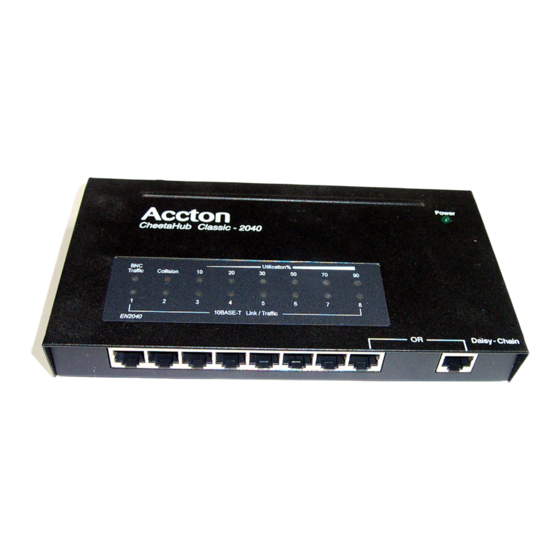

The Accton Technology Classic-2040 is an Ethernet hub used to connect multiple network devices in a local area network (LAN). It has 8 RJ-45 ports for 10BASE-T (twisted-pair Ethernet) and 1 BNC port for 10BASE2 (thin coaxial Ethernet), allowing flexibility in network setups.

It works by receiving data from one device and broadcasting it to all other connected devices. It supports simple stand-alone use or can be connected to other hubs or switches using the daisy-chain (MDI) port or BNC port. The hub includes indicator LEDs to help monitor power, link status, and traffic, aiding in network diagnostics.

This answer is automatically generated

Summary of Contents for Accton Technology Classic-2040

  • Page 1 CheetaHub Classic-2040 Quick Installation Guide EN2040 E1297-R02 150003-102...
  • Page 2 BBS: 408-452-8828 BBS: 886-3-5770-654 FAST FAX: 408-452-8811 Internet: support@accton.com.tw Accton, CheetaHub and SmartWatch are trademarks or registered trademarks of Accton Technology Corporation. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. EN2040 E1297-R02...
  • Page 3: Table Of Contents

    CheetaHub Classic-2040 Quick Installation Guide Contents Introduction The CheetaHub Classic-2040 includes 8 RJ-45 ports and 1 BNC port for connection to thin Ethernet (10BASE2). The hub also has an indicator panel that includes utilization and link/ Introduction traffic LEDs to provide easy monitoring of hub conditions. This...
  • Page 4: Connecting The Hub

    CheetaHub Classic-2040 Quick Installation Guide The CheetaHub can be located anywhere there is a enough flat space, such as on Powering on the Hub a table or desktop. 1. Plug the power cord into the power socket at the rear of the hub, and the 1.
  • Page 5: Applications

    CheetaHub Classic-2040 Quick Installation Guide • If a computer is attached to the hub, verify that its adapter card is functioning Temperature 0°C to 40°C (32 to 104°F) Standard Operating Humidity 5% to 95% (Noncondensing) properly by trying it in another computer that has been successfully connected to the network.
  • Page 6: Port And Cable Assignments

    CheetaHub Classic-2040 Quick Installation Guide Port and Cable Assignments Class A (Canada Department of Communications) This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard RJ-45 Port Description entitled "Digital Apparatus", ICES-003 of the Department of Communications.
  • Page 7: Wichtige Sicherheitshinweise (Germany)

    CheetaHub Classic-2040 Quick Installation Guide Wichtige Sicherheitshinweise (Germany) Warranty Accton warrants to the original owner that the product delivered in this package will be free from defects in material and workmanship for the lifetime of the product. For the warranty to apply, you must register your purchase by returning the registration card indicating the date of purchase and including proof of purchase.
