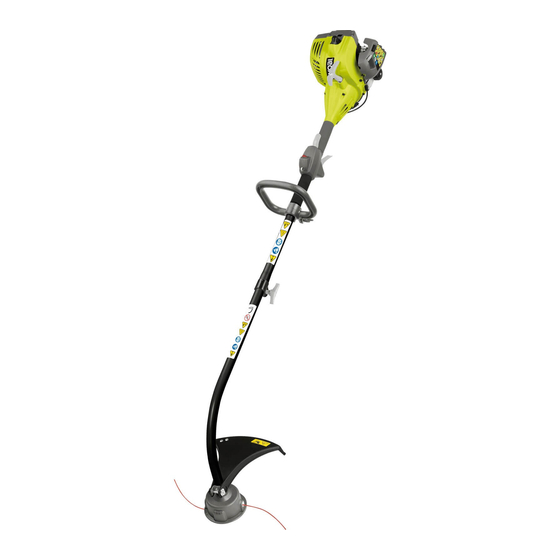

RLT26CDS
GRASS TRIMMER
ORIGINAL INSTRUCTIONS
Important!
It is essential you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLT26CDS and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi RLT26CDS

Summary of Contents for Ryobi RLT26CDS

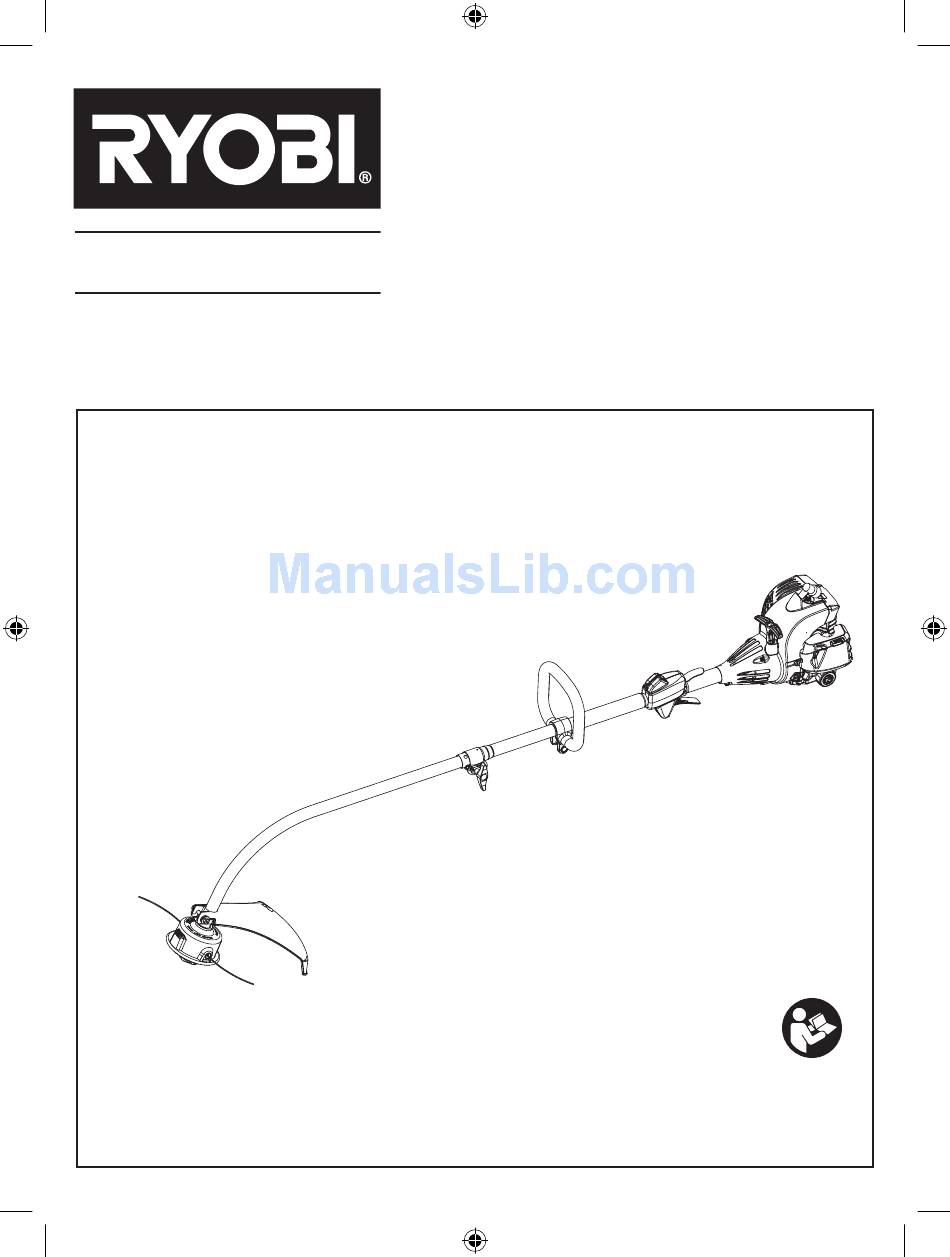

  • Page 1 RLT26CDS GRASS TRIMMER ORIGINAL INSTRUCTIONS Important! It is essential you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
  • Page 2 English (Original Instructions) SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. Symbols Explanation Precautions that involve your safety. To reduce the risk of injury, user must read and understand operator’s manual before using this product.
  • Page 3 English (Original Instructions) Set the choke lever to “Run” choke position. Pull the starter grip until the engine attempts to start. Wait for 10 seconds. Stop the engine. Set the ignition switch to the “I” (ON) position. Ignition switch: 0 = STOP, I = RUN When fitting the line spool to the cutting means, this symbol should be visible to the operator.

  • Page 4: Intended Use

    English (Original Instructions) Safety, performance, and dependability have been given Failure to follow all safety instructions listed in the top priority in the design of your grass trimmer. manual can result in serious personal injury. ■ Some regions have regulations that restrict the use of the product.

  • Page 5: Trimmer Safety Warnings

    English (Original Instructions) all moving parts have come to a complete stop before: ■ Never operate the product without the cutting attachment guard in place and in good condition. ● servicing ■ Maintain a firm grip on both handles while trimming. ●...

  • Page 6: Transportation And Storage

    English (Original Instructions) MAINTENANCE WARNING Injuries may be caused or aggravated by prolonged use of the product. When using any tool for prolonged WARNING periods, ensure you take regular breaks. Servicing requires extreme care and knowledge and should be performed only be a qualified service technician.
  • Page 7 English (Original Instructions) ■ Rotate the knob on the bump head until the line on the pull it away from the housing. knob aligns with the arrows on top of the bump head. ■ Pull the rubber protect boot upward to release the ■...

  • Page 8: Packing List

    English (Original Instructions) DESCRIPTION WARNING Do not attempt to modify this product or create Please refer to figure sheet. accessories not recommended for use with this 1. Primer bulb product. Any such alteration or modification is misuse 2. Choke lever and could result in a hazardous condition leading to 3.

  • Page 9: Operation

    English (Original Instructions) ATTACHING THE DEFLECTOR line through the line trimmer head until the middle section of the line is inside the line trimmer head and See figure 2b. line outside the line trimmer head is evenly divided on ■ Loosen the lock nut. each side.
  • Page 10 English (Original Instructions) ■ Keep petrol and oil away from the eyes. If petrol WARNING or oil comes in contact with the eyes, wash them immediately with clean water. If irritation is still present, Always shut off engine before fueling. Never add fuel to see a doctor immediately.

  • Page 11: Cutting Tips

    English (Original Instructions) ■ Always operate trimmer at full throttle. Prolonged cutting at partial throttle will result in oil dripping from the silencer. ■ Cut tall grass from the top down. This will prevent grass from wrapping around the shaft housing and bump head which may cause damage from overheating.

  • Page 12: Product Specifications

    English (Original Instructions) PRODUCT SPECIFICATIONS Grass trimmer Model RLT26CDS Engine displacement 26 cc Max engine performance (in accordance with ISO 8893) 0.65 kW Fuel consumption (in accordance with ISO 8893) at max 0.33 kg/h (0.45 L/h) engine performance Specific fuel consumption (in accordance with ISO 8893) 508 g/kW-h (0.7 L/kW-h)

  • Page 13: Troubleshooting

    English (Original Instructions) TROUBLESHOOTING If these solutions do not solve the problem, contact your authorised service dealer. PROBLEM POSSIBLE CAUSE SOLUTION Engine will not start. 1. Power switch is off. 1. Make sure Switch is in the ON or “I” position. 2.
  • Page 14 English (Original Instructions) PROBLEM POSSIBLE CAUSE SOLUTION Engine starts, runs, Idle speed screw on carburetor and accelerates but Contact servicing dealer if the problem persists. requires adjustment will not idle. Line will not advance. 1. Line welded to itself. 1. Lubricate with silicone spray. 2.

  • Page 15: Declaration Of Conformity

    Herewith we declare that the product Grass Trimmer Brand: Ryobi Model number: RLT26CDS Serial number range: 44438501000001 - 44438501999999 is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC as last amended 2012/46/EU, EN ISO 11806-...
  • Page 16 Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany 961478054-04...
