Page 1: User Manual

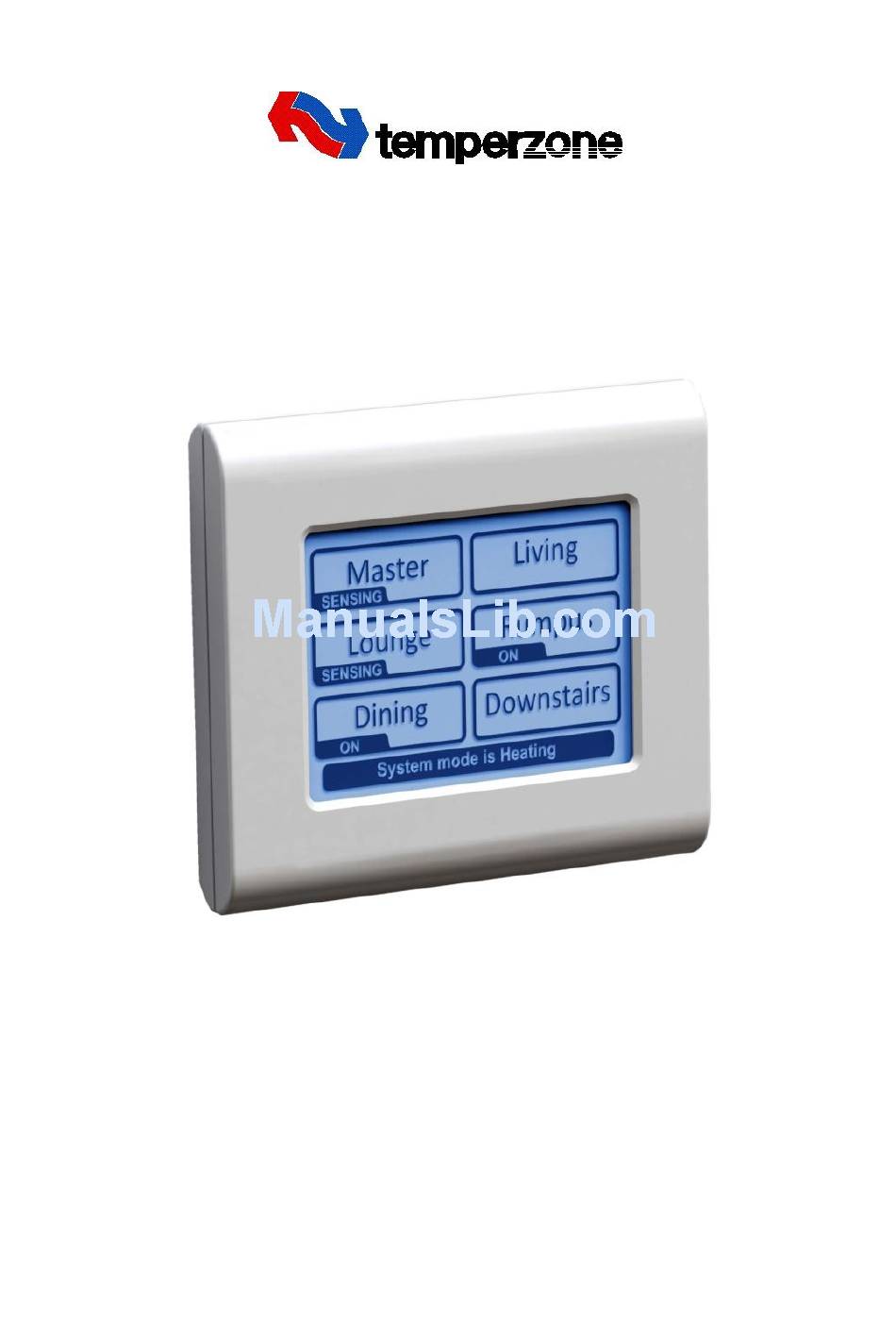

EASY ZONE TOUCH 6 Zone Control System with Active Temperature Management User Manual Ver 1.0... -
Page 2: Preface
EASY ZONE TOUCH will provide you with many years of trouble free comfort control. The EASY ZONE TOUCH control system has been designed and built to be an attractive, highly reliable and an easy to use controller. By taking the time to read and understand these simple instructions you can take advantage of many of the capabilities that are offered in this premium product. -
Page 3: Table Of Contents
Index Preface Index Introduction What Is Zoning? Operation Turing a Zone on or off Setting the Zone Active Temperature To adjust the zone temperatures Performing a Reset Specifications Page 3... -
Page 4: Introduction
More even temperature Control The EASY ZONE TOUCH will enable you to turn zones off manually when they become too warm or cool, so turn off upstairs when the temperature is warm enough while leaving downstairs to continue to heat. -
Page 5: Operation
Operation The Easy Zone touch is a advanced touch screen device capable of actively controlling up to 6 temperature controlled zones. Without applying great pressure and using your finger tip or fingernail you are able to operate the system and turn zones on or off and set zone temperatures as required. - Page 6 “More” window and selecting “Names”. Function Your EASY ZONE TOUCH will be setup by your installer to either simply open or close the zone(s) or to report the zone temperature to the TZT-100 thermostat. Aditionally the EASY ZONE TOUCH can automatically open and close the zones based on zone, actual temperature and the zone desired temperatures.
-
Page 7: Turing A Zone On Or Off
System messages Various messages will be shown in this section of the screen to alert, inform or assist the user in the use of the EASY ZONE TOUCH control panel. See appendix 2 (Page 10) More Press this button to enter a sub menu that permits you to adjust screen brightness,... -
Page 8: To Adjust The Zone Temperatures
Cooling When the cooling system is running the EASY ZONE TOUCH will close the zone damper when the room temperature is at or below this value. Touch the temperature to select it for adjustment with the temperature set button. It will highlight to show it has been selected. -
Page 9: Performing A Reset
Keeping at least one zone as a “Sensing” zone at all times. Limiting the maximum number of “Active” zones. System messages on the status bar will guide you in using the EASY ZONE TOUCH. For example, if you want to close the bedroom zone and you not permitted, simply open another zone first and then try closing the bedroom zone. - Page 10 “Sensing” zones may be set by the installer. This limit has been reached. Spill Opened The EASY ZONE TOUCH may open a “Spill” zone to This is normal message reduce the air pressure in the system caused by too many zones closed.
- Page 11 Notes Page 11...
-
Page 12: Specifications
Specifications Wall Controller Input Voltage 24VAC 50/60 Htz +/- 15%. Operating Temperature 0-50C (32 to 122F). Operating RH 0-95% (non condensing). Storage Temperature 0-65C (32 to 150F). Size 113 x 103 x 23mm. Display Size 69.5 x 46.3mm. Backlight White or blue EL (30 seconds after last button press) Display type 240 x 320 pixel FSTN touch panel Memory type...
