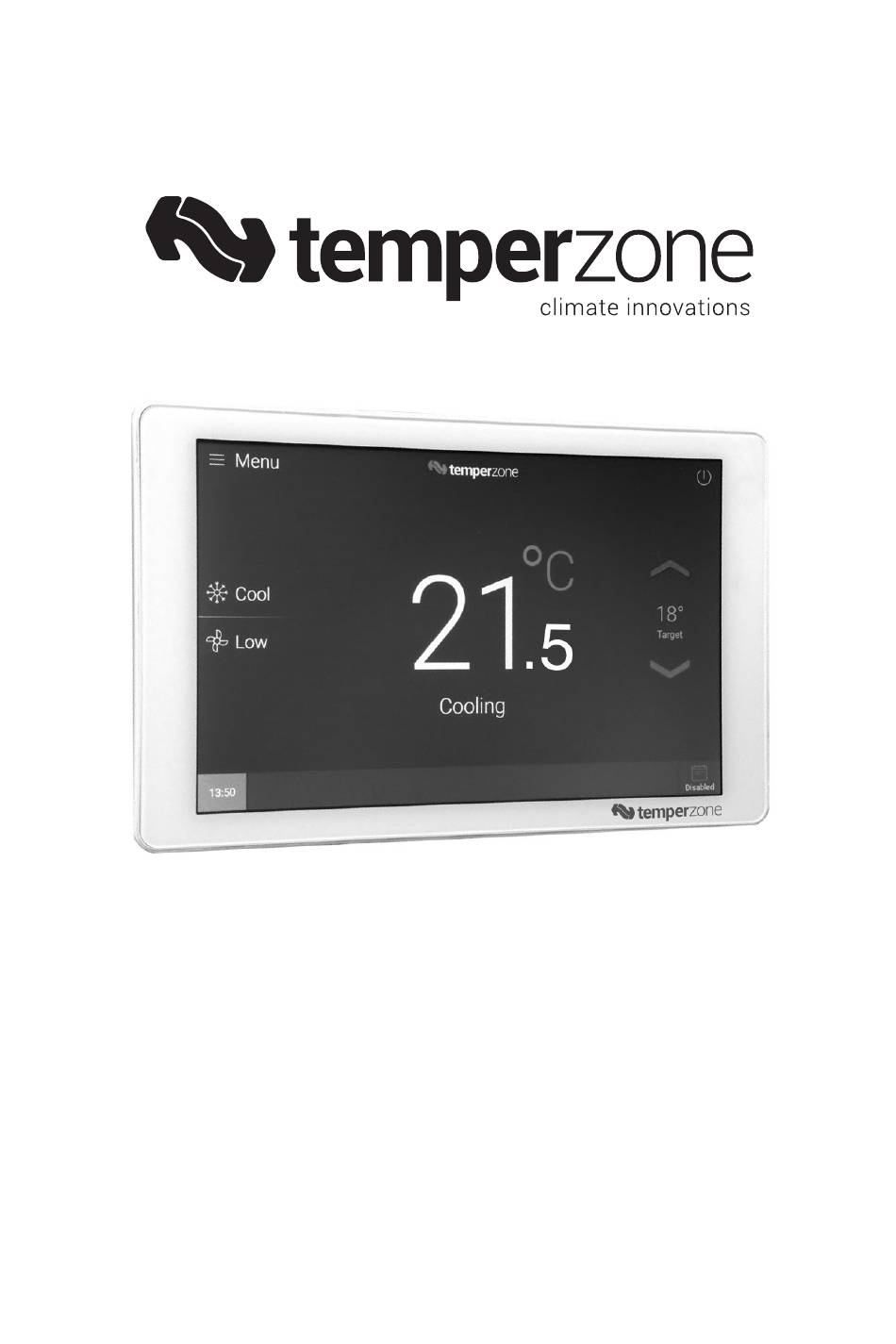

- Page 1 CLIMATE TOUCH Quick Start Guide...
- Page 2 IMPORTANT To protect your equipment, switch OFF the power to your air conditioning system at the circuit breaker box or the switchboard. Separate Climate Touch and the magnetic metal wall mounting plate from the back of the Touchscreen using a large screwdriver.
- Page 3 2 core + screen Attach thermostat to magnetic wall plate Align the centre of the Climate Touch over the wall plate and snap it into place. ! CAUTION: Strong magnets – keep fingertips clear. Switch power ON to the air conditioning system Switch power ON to your air conditioning system at the circuit breaker box or the switchboard.
- Page 4 Specifications: • Climate Touch CTC-1 part no. 201-000-789 • Screen 8" diagonal, resolution 1280 x 720 pixels WXGA, colour • Power supply 12V DC (via UC8) • Communication interface Modbus/RS-485 • Operating system Android • Language support English only • Temperature setting range: 16~30°C •...
