Summary of Contents for TemperZone CLIMATE TOUCH CTC-1

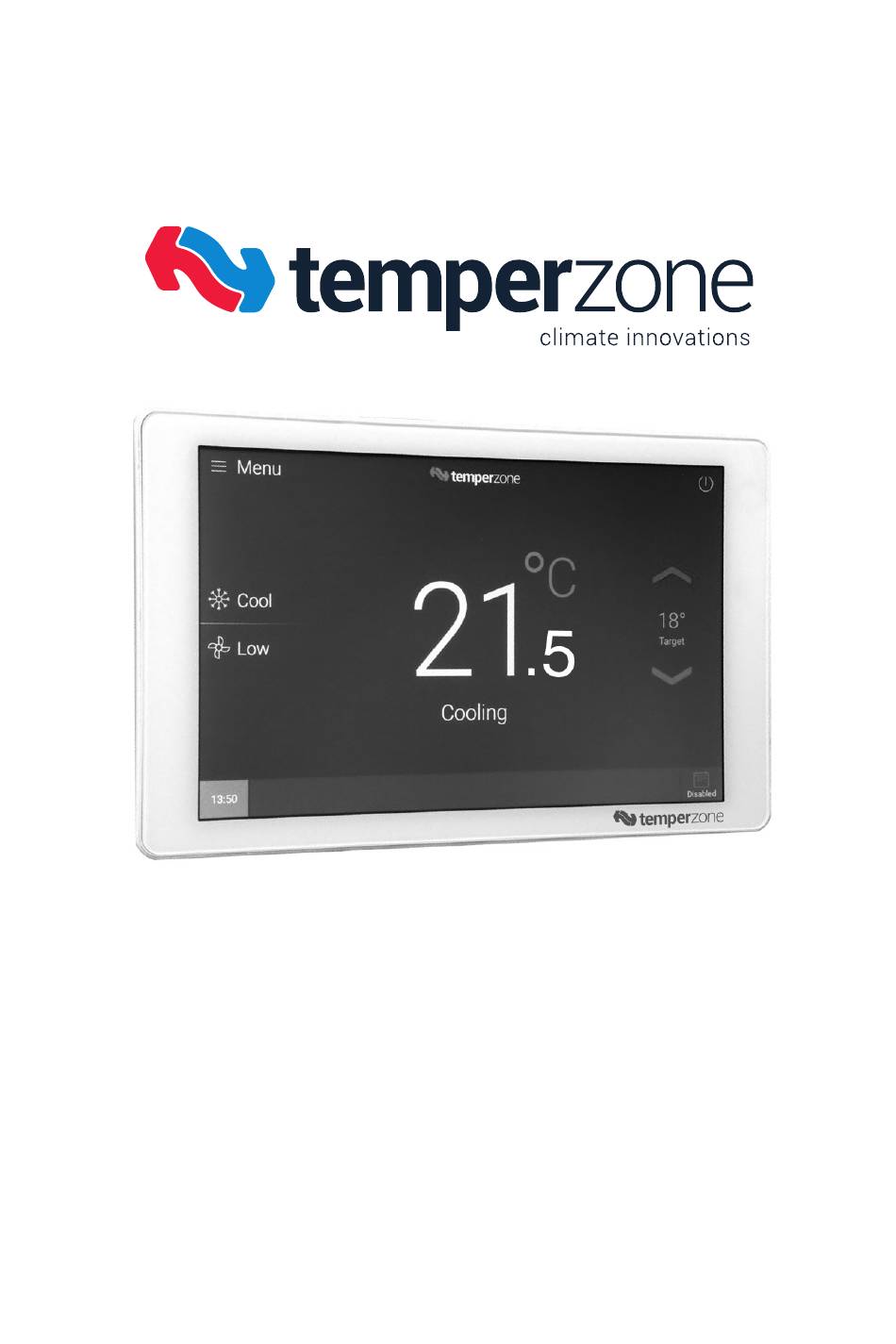

- Page 1 CLIMATE TOUCH Installation & Operation...
-
Page 2: Table Of Contents
CONTENTS Page QUICK START GUIDE INSTALLER SET-UP FEATURES OPERATION Home Screen How do I change the Room Temperature? How do I change the Mode of operation? How do I change the Fan speed? How do I change the Time displayed? How do I override an active Weekly Schedule (ie after hours use) How do I create a Weekly Schedule of On/Off times? 10... -
Page 3: Quick Start Guide
Required: Interface cable (4 core twisted pair shielded 0.25mm ) – available in varying lengths from Temperzone ! CAUTION: Climate Touch has a temperature sensor that protrudes 6mm below the device. Take care not to pull or knock the sensor. - Page 4 Advanced Settings for Technicians may be accessed by contacting Temperzone Support Help Desk for a separate four digit PIN entry code: Australia: 1800-211 800 New Zealand: 09-279 5250 or 0800-NZAIRCON (0800-692 472) Refer to Installer Manual at www.temperzone.biz; model search 'climate touch', for more information. – 4 –...
- Page 5 Specifications: • Climate Touch CTC-1 part no. 201-000-789 • Screen 8" diagonal, resolution 1280 x 720 pixels WXGA, colour • Power supply 12V DC (via UC8) • Communication interface Modbus/RS-485 • Operating system Android • Language support English only • Temperature setting range: 16~30°C •...
-
Page 6: Installer Set-Up
Press ? in top right of screen if you need assistance with this device. FEATURES The temperzone Climate Touch has been designed to maintain a high level of comfort for room occupants. Controls are intuitive and easy to use. Use of the Auto and Schedule function settings allows you 'to set it and forget it'. -
Page 7: Operation

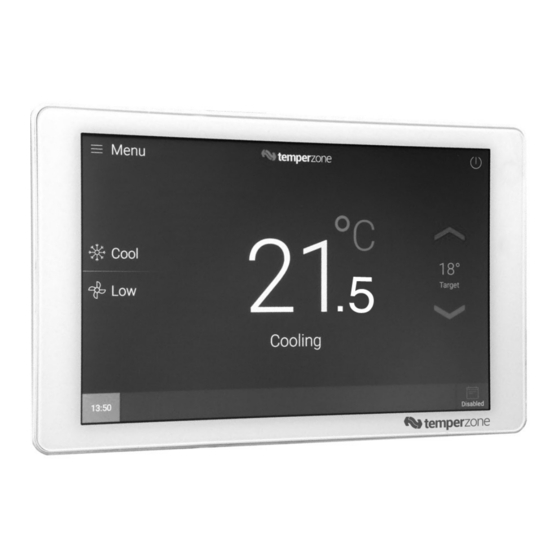

End User OPERATION Home Screen Figure 1 On/Off Menu Current Room Temperature ° Mode Cool ° Target Down status message Schedule status HH:MM Overide Disabled time display area How do I change the Room Temperature? Press the 'Up' or 'Down' arrowheads to increase/decrease the target room temperature (aka setpoint). -
Page 8: How Do I Change The Fan Speed
End User How do I change the Fan speed? Press the current Fan speed (Figure 1). Select the preferred speed from the displayed options below. Figure 3 (Note: If unable to change Fan speed, refer your system Administrator.) How do I change the Time displayed? Press 'Menu' Press 'Date &... -
Page 9: How Do I Override An Active Weekly Schedule
End User Administrator How do I override an active Weekly Schedule? (After Hours use) An override function is available to turn the air conditioner 'on' when the unit would normally be 'off' – as controlled by an 'Enabled' Schedule; for example, for after hours use. A calendar symbol in the bottom right of the Home screen tell's you if a Schedule is 'Enabled' or 'Disabled'. -
Page 10: How Do I Create A Weekly Schedule Of On/Off Times
Administrator How do I create a Weekly Schedule of ON/Off times? (continued) Add/Edit an Event Press 'Add Event' or tap on any empty area of the calendar to create a new recurring event in the weekly schedule. Either tap on an existing event and drag the event handles to easily alter the duration (Fig. 5b), or long press on an existing event to open the Edit Event screen (Fig.5c). - Page 11 Administrator Add/Edit a Special Event Press 'Special Events' to define non-repeating events, up to a year or more in advance. These will override the weekly schedule. Enter a name, select the desired profile, set the start and end days and times, then press 'Save'. Select an entry from the list on the left to review, change or delete an existing Special Event.
-
Page 12: Menu
End User MENU This screen displays the options available for selection. Figure 8 (Note: You may need Administrator User Permission to change some of these settings.) Schedule Set up a Weekly Schedule of events (time periods) for when the building is occupied and the air conditioner is automatically activated;... -
Page 13: Advanced Settings (Log-In)
If you are a building Administrator: use Administrator PIN code '1956' If you are an Installer or Service Technician: Contact Temperzone for Technician PIN number; press ? (top right) for contact details. For advanced settings for Technicians, go to page 16. -
Page 14: User Permissions
Administrator User Permissions Control what your users can configure, such as powering off, changing modes and editing the schedule. The options and default settings are shown below. When the Schedule is active any change made by the user to Mode, Setpoint or Fan Setting is considered to be an Override. -
Page 15: Unit Settings
Administrator Unit Settings Adjust the Setpoint Temperature Range slider to restrict the target temperature range from which the user may select. If the system is configured to support Adv. Auto, adjust the Adv. Auto Heating/Cooling Setpoint sliders to restrict the range from which the user may select in this mode. Fan behaviour, when the system has achieved the desired temperature, may be selected using the toggles. -
Page 16: Advanced Settings For Technicians
Technician Advanced Settings (for Technicians) Technicians Technician level includes the following 'additional' functions that Administrator level doesn't have: • Unit & Service Details - for editing unit serial number and model number, location and recording service contact details • Installer Settings - set the units idle fan mode, and the cooling/heating min./max. setpoints. •... -
Page 17: Installer Settings
Technician Installer Settings Use this screen to configure the Climate Touch to suit the installation. Use the toggles to set which modes the system can support and should be made available for the users to select from. Adjust the Setpoint Temperature Range slider to restrict the range of operation based on the capability of the unit. -
Page 18: Troubleshooting
TROUBLESHOOTING Air Conditioner Doesn’t Operate 1. Check there is power to the air conditioner. There is no power if the Climate Touch’s screen is blank. 2. Check the Climate Touch is on, i.e. the display shows the operating mode and fan setting. 3. -
Page 19: Who Do I Contact For Support
Menu 'Unit & Service Details' Screen. Technician: Refer to UC8 Controller label on the unit for operation & fault diagnostics information; or visit www.temperzone.biz and model search 'UC8' or ‘Climate Touch’ in the Model search, or telephone:... -
Page 20: Appendix I : User Access Levels
Appendix I USER ACCESS LEVELS The Climate Touch has three user access levels: End User, Administrator and Technician. (Note: Administrator and Technician levels automatically log-out after 10 minutes of inactivity.) Function End User Administrator Technician Screen Brightness - adjust ● ●... -
Page 21: Appendix Ii : Status Messages
Appendix II STATUS MESSAGES Status messages are displayed on the Home screen (refer Figure 1, p.4) Message Description Action Initiating Start-up sequence is in progress. No Communication Climate Touch can not find UC8 Installer to check wire connections. Controller. Idle Target temperature reached. -
Page 22: Appendix Iii : Installer Settings
Appendix III INSTALLER SETTINGS Function Option/s Comment / Default Modes: Cool On / Off Heat On / Off Auto On / Off Adv.auto On / Off Fan only On / Off On / Off Standby On / Off Quiet On / Off On / Off Temperature Deadband range 0.5, 1.0, 1.5, 2.0 °C... -
Page 23: Appendix Iv : Diagostics
Appendix IV DIAGNOSTICS Parameters displayed on the Diagnostics screen are listed below, in order of appearance. Finger drag up to view all items. Note: Diagnostic data is only displayed for System 1, the Master system, in multi-circuit units. Abbrev. Parameter Suction line temperature Discharge line temperature Evaporating temperature... - Page 24 Visit our website www.temperzone.biz 10/20 Pamphlet No. 4132 © Temperzone Ltd 2020...
