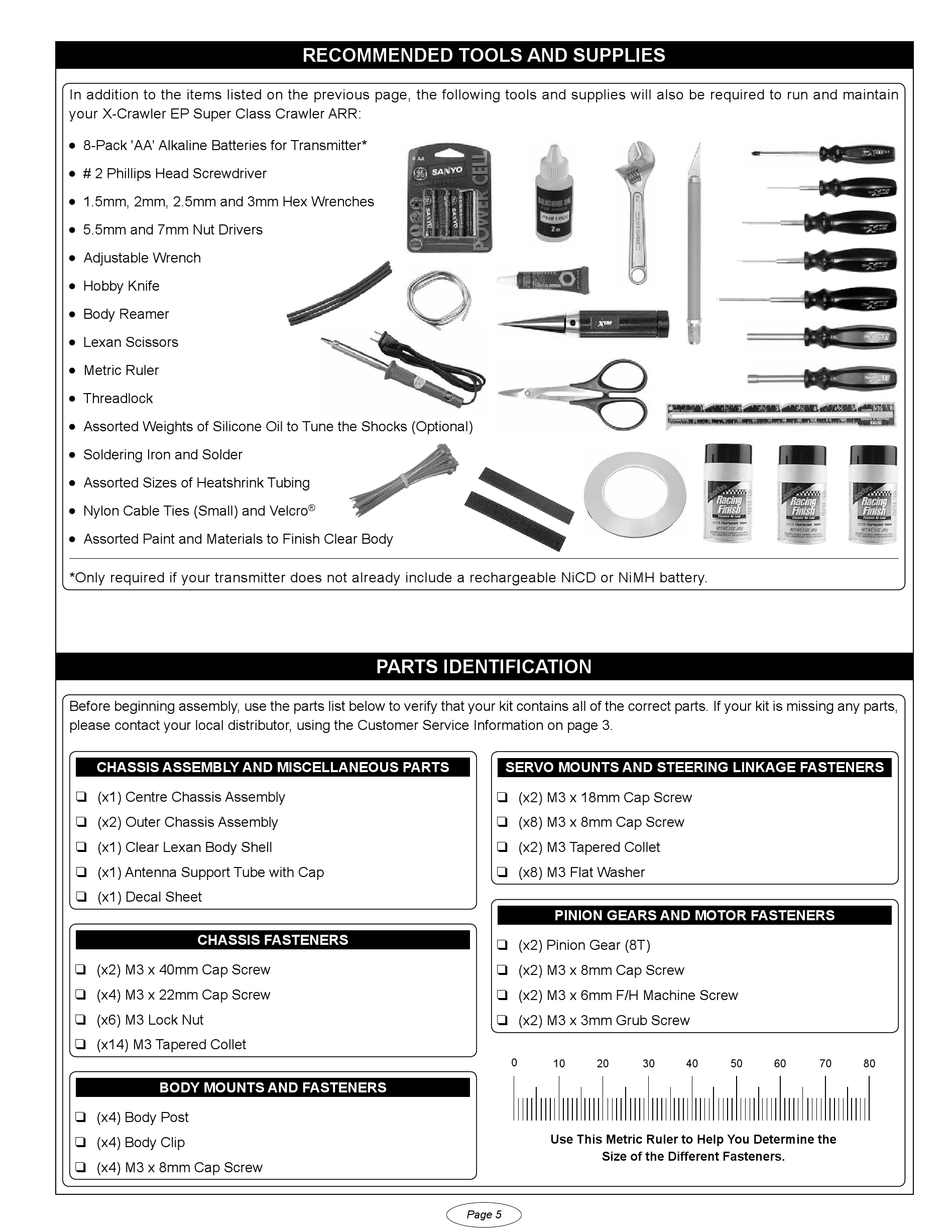

Recommended Tools And Supplies; Parts Identification - XTM Racing X-Crawler EP Super Class Crawler ARR Assembly Manual And Setup Manual

In addition to the items listed on the previous page, the following tools and supplies will also be required to run and maintain
your X-Crawler EP Super Class Crawler ARR:
8-Pack 'AA' Alkaline Batteries for Transmitter*
l
# 2 Phillips Head Screwdriver
l
1.5mm, 2mm, 2.5mm and 3mm Hex Wrenches
l
5.5mm and 7mm Nut Drivers
l
Adjustable Wrench
l
Hobby Knife
l
Body Reamer
l
Lexan Scissors
l
Metric Ruler
l
Threadlock
l
Assorted Weights of Silicone Oil to Tune the Shocks (Optional)
l
Soldering Iron and Solder
l
Assorted Sizes of Heatshrink Tubing
l
Nylon Cable Ties (Small) and Velcro
l
Assorted Paint and Materials to Finish Clear Body
l
*Only required if your transmitter does not already include a rechargeable NiCD or NiMH battery.
Before beginning assembly, use the parts list below to verify that your kit contains all of the correct parts. If your kit is missing any parts,
please contact your local distributor, using the Customer Service Information on page 3.
CHaSSiS aSSeMbly and MiSCellaneouS PartS
q (x1) Centre Chassis Assembly
q (x2) Outer Chassis Assembly
q (x1) Clear Lexan Body Shell
q (x1) Antenna Support Tube with Cap
q (x1) Decal Sheet
CHaSSiS FaStenerS
q (x2) M3 x 40mm Cap Screw
q (x4) M3 x 22mm Cap Screw
q (x6) M3 Lock Nut
q (x14) M3 Tapered Collet
body MountS and FaStenerS
q (x4) Body Post
q (x4) Body Clip
q (x4) M3 x 8mm Cap Screw

reCoMMended toolS and SuPPlieS

®

PartS identiFiCation

Page
SerVo MountS and SteerinG linKaGe FaStenerS
q (x2) M3 x 18mm Cap Screw
q (x8) M3 x 8mm Cap Screw
q (x2) M3 Tapered Collet
q (x8) M3 Flat Washer
Pinion GearS and Motor FaStenerS
q (x2) Pinion Gear (8T)
q (x2) M3 x 8mm Cap Screw
q (x2) M3 x 6mm F/H Machine Screw
q (x2) M3 x 3mm Grub Screw
0
10 20 30
use this Metric ruler to Help you determine the
Size of the different Fasteners.
40 50 60 70 80
