The stock tyres and foam inserts included will work well for most users, however, you may want to experiment with different tyres and
foam inserts, or even experiment with cutting the stock foam inserts. The X-Crawler is a Super Class crawler and uses 'Maxx' size wheels.
When choosing different tyres, you should look for a tyre that suits your driving style and the terrain you're driving on. In general, you
want the softest tyre available with an aggressive tread pattern. This type of tyre will provide the best traction in most situations.

rePlaCeMent PartS and aSSeMbly drawinGS

The Replacement Parts and Assembly Drawings contains two sections. The first section lists all of the replacement parts that are available
for purchase. For your convenience, each replacement part is shown, along with the XTM Racing order number, a description, quantity
amount per pack, and the corresponding step number that the replacement part is shown in to cross-reference the parts using the as-
sembly drawings. The second section details the assembly of the X-Crawler ARR. Detailed illustrations in a step-by-step format make it
easy to disassemble and reassemble the X-Crawler ARR. This is useful when it's necessary to replace worn/damaged parts or when it's
time for a complete teardown for cleaning.
when it comes time to order replacement parts, we recommend ordering directly from your local hobby retailer. if your hobby
retailer does not stock XtM racing products, contact your closest distributor for a local dealer, using the Customer Service
information on page 3.
XtM Part nuMber
146820 Chassis Side Plate
146821 Chassis Bottom Plate
146822 Chassis Upper Plate
146823 Chassis and Shock Support Rod
146824 Side Plate Spacer Rod
146825 Linkage Rod (No Ball End)
146826 Ball End
146827 Ball for Shock End
146828 Shock Mount
146829 Linkage Rod with Ball End
146830 Linkage Rod with Ball End and Shock Mount
146831 Body Mount
146832 Body Clip
146833 Shock Assembly - Complete
146834 Shock Mounting Bushing
146835 Antenna Holder
146836 Tapered Collet (Triangle Washer)
146837 Gearbox Housing
146838 Gearbox Cover - Left
146839 Gearbox Cover - Right
146840 Spur Gear - 40T
tyreS and FoaM inSertS

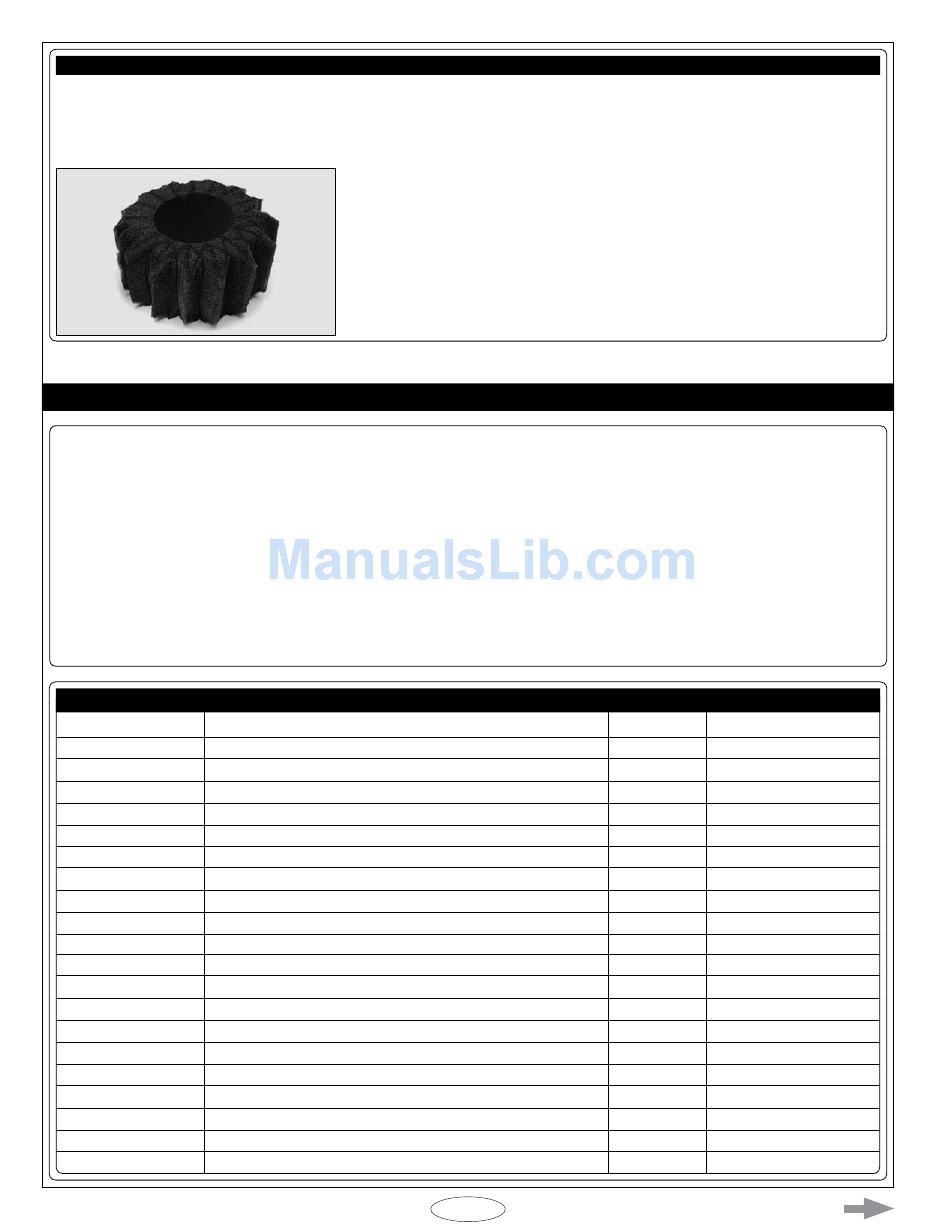

Regarding the foam inserts, you want to use foam inserts that are just firm enough
to support your X-Crawler ARR, but soft enough that the tyre can compress easily to
ensure maximum traction. If the foam inserts are too stiff and don't allow your tyres to
compress adequately, you can cut them. The most popular methods are to either cut
the sides of the foam inserts to allow more sidewall flex or cut them into a star shape
to allow easier compression of the tyre. In most cases, these techniques will provide a
good combination of support and easy compression to ensure maximum traction.
rePlaCeMent PartS (PaGeS 16~17)
aSSeMbly Manual (PaGeS 18~23)
deSCriPtion
Page
PaCK Qty aSSeMbly loCation
2 Step 4
1 Step 4
1 Step 4
2 Step 5
2 Step 4
2 Step 5
2 Steps 3 and 5
4 Step 5
2 Step 5
1 Step 5
1 Step 5
2 Steps 4 and 6
4 Step 6
1 Step 5
6 Step 5
1 Step 4
4 Steps 3, 5 and 6
1 Step 1
1 Step 1
1 Step 1
1 Step 2
