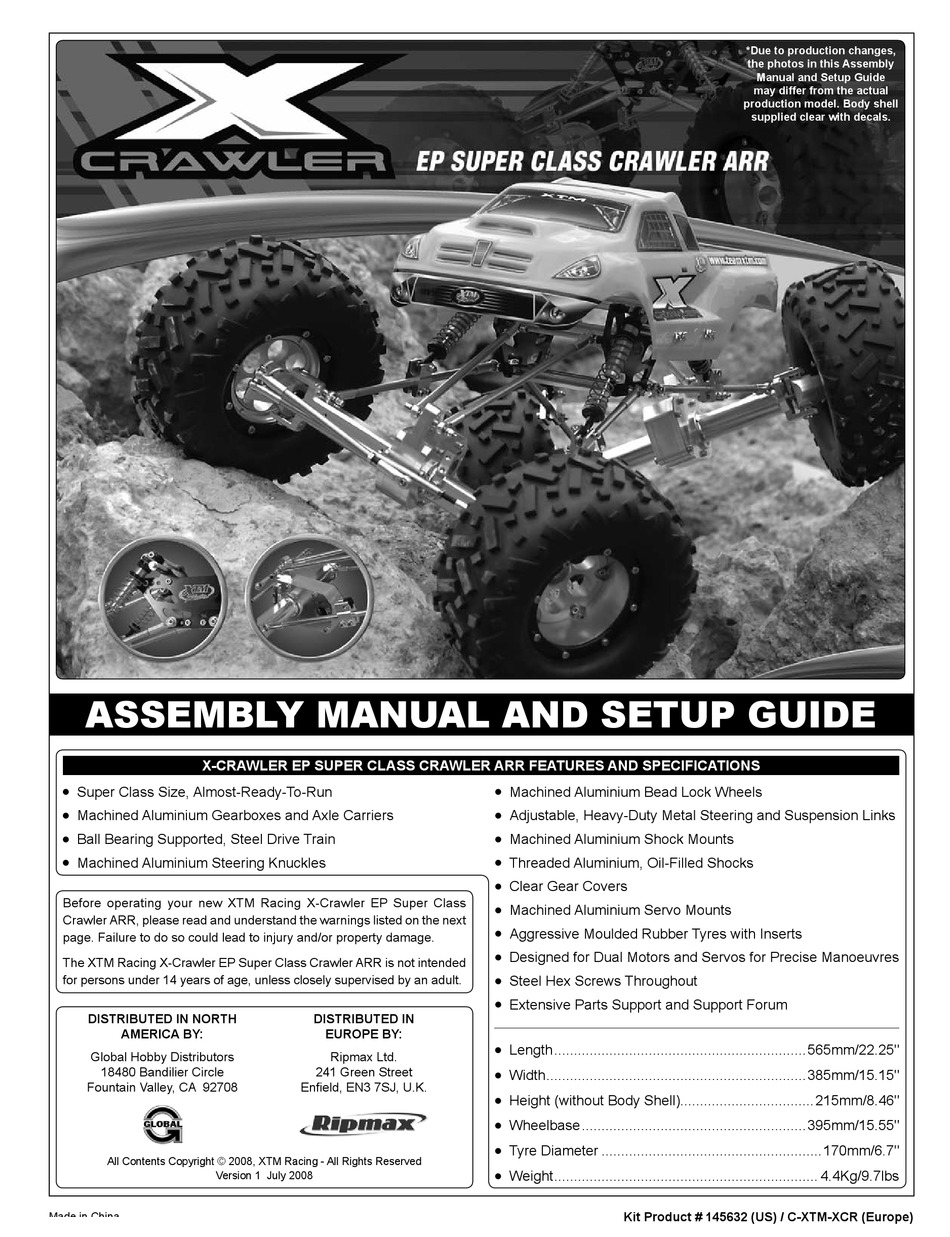

ASSEMBLY MANUAL AND SETUP GUIDE
X-Crawler eP SuPer ClaSS Crawler arr FeatureS and SPeCiFiCationS
Super Class Size, Almost-Ready-To-Run
l
Machined Aluminium Gearboxes and Axle Carriers
l
Ball Bearing Supported, Steel Drive Train
l
Machined Aluminium Steering Knuckles
l
Before operating your new XTM Racing X-Crawler EP Super Class
Crawler ARR, please read and understand the warnings listed on the next
page. Failure to do so could lead to injury and/or property damage.
The XTM Racing X-Crawler EP Super Class Crawler ARR is not intended
for persons under 14 years of age, unless closely supervised by an adult.
diStributed in nortH
aMeriCa by:
Global Hobby Distributors
18480 Bandilier Circle
Fountain Valley, CA 92708
All Contents Copyright © 2008, XTM Racing - All Rights Reserved
Version 1 July 2008
Made in China
diStributed in
euroPe by:
Ripmax Ltd.
241 Green Street
Enfield, EN3 7SJ, U.K.
Page
Machined Aluminium Bead Lock Wheels
l
Adjustable, Heavy-Duty Metal Steering and Suspension Links
l
Machined Aluminium Shock Mounts
l
Threaded Aluminium, Oil-Filled Shocks
l
Clear Gear Covers
l
Machined Aluminium Servo Mounts
l
Aggressive Moulded Rubber Tyres with Inserts
l
Designed for Dual Motors and Servos for Precise Manoeuvres
l
Steel Hex Screws Throughout
l
Extensive Parts Support and Support Forum
l
Length ................................................................565mm/22.25"
l
Width ..................................................................385mm/15.15"
l
Height (without Body Shell)..................................215mm/8.46"
l
Wheelbase .........................................................395mm/15.55"
l
Tyre Diameter ........................................................170mm/6.7"
l
Weight ................................................................... 4.4Kg/9.7lbs
l
Kit Product # 145632 (uS) / C-XtM-XCr (europe)
*due to production changes,
the photos in this assembly
Manual and Setup Guide
may differ from the actual
production model. body shell
supplied clear with decals.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Crawler EP Super Class Crawler ARR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XTM Racing X-Crawler EP Super Class Crawler ARR

Summary of Contents for XTM Racing X-Crawler EP Super Class Crawler ARR

  • Page 1 Failure to do so could lead to injury and/or property damage. Designed for Dual Motors and Servos for Precise Manoeuvres The XTM Racing X-Crawler EP Super Class Crawler ARR is not intended for persons under 14 years of age, unless closely supervised by an adult.

  • Page 2: Table Of Contents

    Rock Crawling Information Sources ............3 Recommended Accessories ..............4 Recommended Tools and Supplies ............5 Parts Identification ..................5 Becoming Familiar with Your X-Crawler EP Super Class Crawler ARR ..6 Assembly Tips From the Pros..............6 Final Assembly ..................7~12 Chassis Setup Guide .................13~16 Visit us on the web at Replacement Parts and Assembly Drawings........16~23...

  • Page 3: Customer Service Information

    XtM racing's liability exceed the original cost of the purchased kit. In that XTM Racing has no control over the final assembly or material used for final assembly, no liability shall be assumed for any damage resulting from the use, by the user, of the final user-assembled product.

  • Page 4: Recommended Accessories

    This section lists the recommended accessories that you need to purchase to finish your X-Crawler EP Super Class Crawler ARR, from this point on referred to as X-Crawler ARR. Listed first is our 'Standard Setup Recommendations', followed by our 'Pro Setup Recommendations'.

  • Page 5: Recommended Tools And Supplies

    SuPPlieS In addition to the items listed on the previous page, the following tools and supplies will also be required to run and maintain your X-Crawler EP Super Class Crawler ARR: 8-Pack 'AA' Alkaline Batteries for Transmitter* # 2 Phillips Head Screwdriver 1.5mm, 2mm, 2.5mm and 3mm Hex Wrenches...

  • Page 6: Becoming Familiar With Your X-Crawler Ep Super Class Crawler Arr

    FaMiliar witH your X-Crawler eP SuPer ClaSS Crawler arr antenna Mount: Holds the antenna support tube Body Mount that your receiver antenna is fitted into. Antenna Mount body Mount: Machined from aluminium for Shock Absorber Steering Link Rod strength, the body mount supports the body. The X-Crawler ARR features four body mounts for maximum support.

  • Page 7: Final Assembly

    Final aSSeMbly The X-Crawler ARR comes from the factory partially assembled. Final Assembly should not take too long. Here is the list of procedures that must be done to finish your X-Crawler ARR: Join the two outer chassis assemblies to the centre chassis assembly, then install the body mounts. Install your electronics - servos, motors, electronic speed controllers (ESCs), and battery pack.
  • Page 8 SteP 2: inStallinG tHe body MountinG PoStS 1 - Install each of the four body mounting posts into the uppermost holes (next to the shock towers) in the chassis side plates, using four M3 x 22mm cap screws. IMPORTANT: Since the cap screws thread into metal, remember to apply threadlock to the cap screws to prevent them from loosening during use.
  • Page 9 5 - Connect the steering link rod to the servo arm, using one M3 x 18mm cap screw, one M3 tapered collet and one M3 lock nut as shown. IMPORTANT: The cap screw is installed through the back of the servo arm and the tapered collet is installed against the front face of the servo arm (a).
  • Page 10 5 - Refit the gear cover, then repeat steps 1~4 to install the second motor. IMPORTANT: Do not overtighten the gear cover retaining screws or they may strip the threads in the gearbox. IMPORTANT: Again, remember to apply threadlock to the cap screws to prevent them from loosening during use.
  • Page 11 SteP 6: inStallinG tHe reCeiVer IMPORTANT: The type of radio control system you use and how you prefer to set it up will determine how and where you plug the throttle and steering leads into the receiver. Based on our Standard and Pro setups, this is what we recommend: Standard (2 Channel or More, e.g, Airtronics/Sanwa MX-3, Futaba 3GR) - Connect the two steering servos using a Y-Harness with an electronic reverser and plug the Y-Harness into channel 1.
  • Page 12 3 - Double-check to make sure that both ESC ON/OFF switches are in the 'OFF' position, then plug the Y-Harness into the two ESC battery leads and plug the battery pack into the Y-Harness. SteP 8: FittinG tHe body SHell IMPORTANT: The body shell can be mounted higher or lower than we recommend below.

  • Page 13: Chassis Setup Guide

    CHaSSiS SetuP Guide Chassis alignment and geometry are important if you want your X-Crawler ARR to perform well. A good performing truck means a truck that is easier to drive, too. Follow our guidelines in this section to get the most out of your X-Crawler ARR. The guidlines that we provide in this section are a good starting point for most users, however, there are numerous different setting combinations that will give you different results.
  • Page 14 adJuStinG tHe toe anGle The toe angle is the angle of both front tyres (or rear tyres) to each other, when viewed from above. Toe-in is when the front of both tyres point toward each other and toe-out is when the front of both tyres point away from each other. Zero degrees of toe angle is when both front or rear tyres point straight ahead.
  • Page 15 adJuStinG tHe SHoCK daMPinG Changing the shock oil (the oil inside the shocks) will change the damping characteristics of the shocks. In general, using heavier shock oil may not allow the X-Crawler ARR to react as quickly to suspension changes and using lighter shock oil may make the X-Crawler ARR bounce a bit without absorbing bumps in the terrain.

  • Page 16: Replacement Parts And Assembly Drawings

    The Replacement Parts and Assembly Drawings contains two sections. The first section lists all of the replacement parts that are available for purchase. For your convenience, each replacement part is shown, along with the XTM Racing order number, a description, quantity amount per pack, and the corresponding step number that the replacement part is shown in to cross-reference the parts using the as- sembly drawings.
  • Page 17 XtM Part nuMber deSCriPtion PaCK Qty aSSeMbly loCation 146841 Inner Gear - 8T/34T Step 2 146842 Motor Pinion Gear - 8T Not Pictured 146843 Axle Tube Carrier - Left Step 1 146844 Axle Tube Carrier - Right Step 1 146845 Ball Bearing - 3x10x4mm (for Inner Gears) Step 1 146846...
  • Page 18 SteP 1: aXle Carrier and GearboX HouSinG aSSeMbly Page ...
  • Page 19 SteP 2: GearboX and aXle aSSeMbly Page ...
  • Page 20 SteP 3: wHeel, aXle and SteerinG linKaGe aSSeMbly Page 0...
  • Page 21 SteP 4: Centre CHaSSiS aSSeMbly Page ...
  • Page 22 SteP 5: SHoCKS and SuSPenSion linK rod aSSeMbly Page ...
  • Page 23 SteP 6: Final CHaSSiS aSSeMbly Page ...

  • Page 24: Applying The Decals

    This includes your preferred side windows, windshield and grill decals, as well as the hood scoop, rear roll bar/rear window display, website logos, 'XTM Racing' logos, and the smaller 'X-Crawler' decals, if those are chosen for the sides of the body shell.
  • Page 25 Once aligned, press down on the centre of the bumper decal, where the 'XTM Racing' logo is, so that you have one point that is firmly attached. Notice that the bumper decal is surrounded by a 4mm black border.

  • Page 26: Important Warrany Service Information

    Before returning your X-Crawler EP Super Class Crawler ARR for warranty consideration, the status of the unit must be within the War- ranty Information as stated below. Do not return your X-Crawler EP Super Class Crawler ARR to the place of purchase. They are not authorised, nor equipped, to perform warranty work on XTM Racing products.
