IX) REPAIR PARTS ILLUSTRATION

1. NIPPLE-HOT OUTLET
2. NIPPLE-COLD INLET
3. DRAFTHOOD
4. TEMPERATURE & PRESSURE
RELIEF VALVE
6. ANODE
7. DIP TUBE
9. DRAIN VALVE
10. BURNER/MANIFOLD ASSEMBLY
11. GAS CONTROL/THERMOSTAT
12. OUTER DOOR
14. TCO SWITCH
15. FLEXIBLE MANIFOLD TUBE

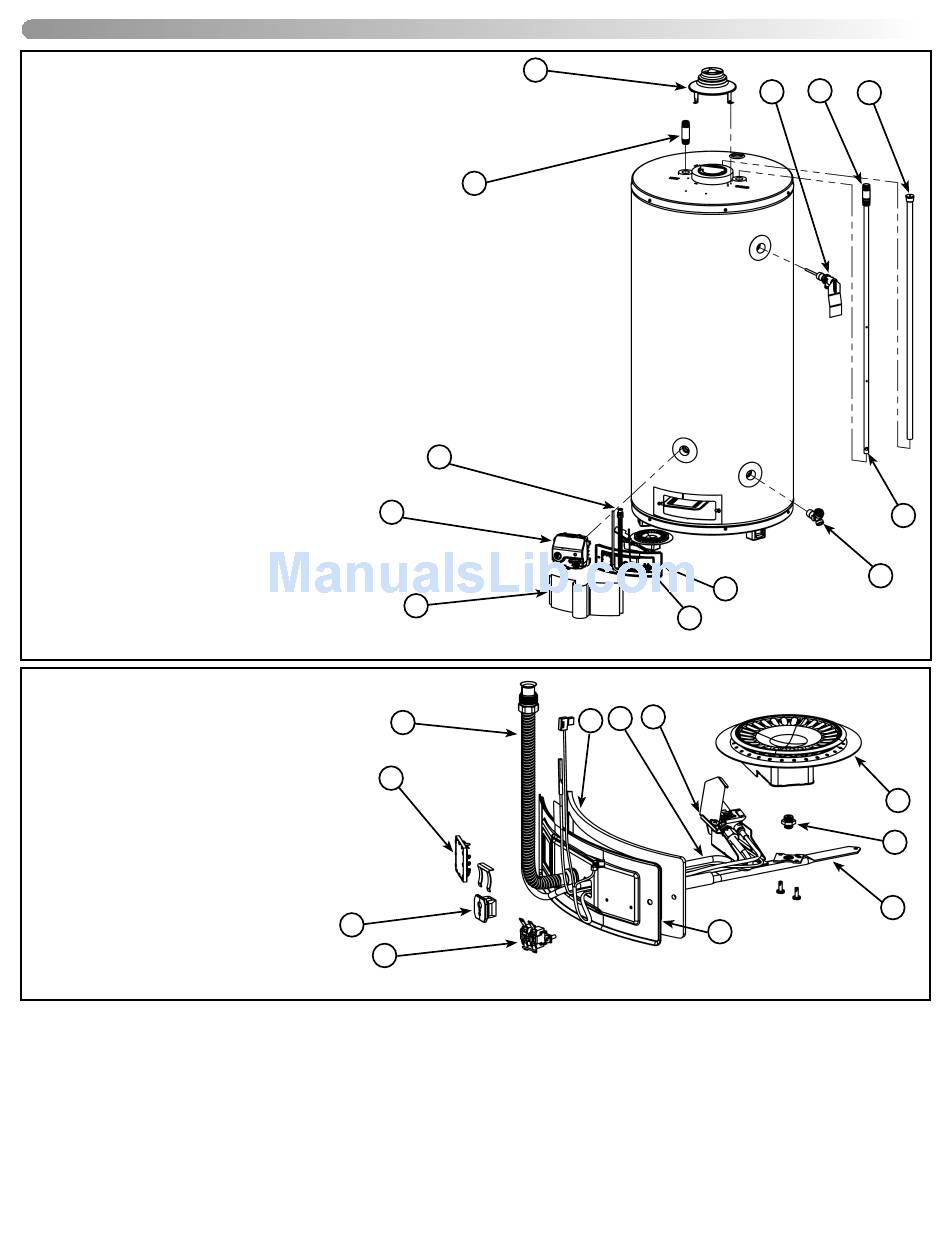

Figure 26 Repair Parts (Heaters Vesta control)
14. TCO SWITCH
15. FLEXIBLE MANIFOLD TUBE
17. PILOT ASSEMBLY
18. VIEWPORT
19. TWO PIECE GROMMET WITH CLIP
20. MANIFOLD DOOR
21. GAS MANIFOLD
22. PILOT TUBE
23. GAS ORIFICE
24. MANIFOLD DOOR GASKET
25. BURNER
Figure 27 Manifold/Door Assembly (Vesta)
1
15
11
12
15
18
19
14
– 26 –
3
14
17
22
24
2
4 6
9
10
25
23
21
20
7
