Installation and Operating Manual
RESIDENTIAL GAS WATER HEATERS
POWER DIRECT VENT GAS MODELS
WITH HOT SURFACE IGNITION
NOT FOR USE IN MANUFACTURED (MOBILE) HOMES
•
•
For Your Safety
AN ODOURANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS
PURCHASED. IF YOU ARE UNSUCCESSFUL, PLEASE CONTACT THE COMPANY LISTED ON THE RATING PLATE ON THE WATER HEATER.
KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE
WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.
1410
328126-000
Advertisement
Table of Contents
Related Manuals for John Wood RESIDENTIAL GAS WATER HEATERS
Summary of Contents for John Wood RESIDENTIAL GAS WATER HEATERS
-
Page 1: For Your Safety

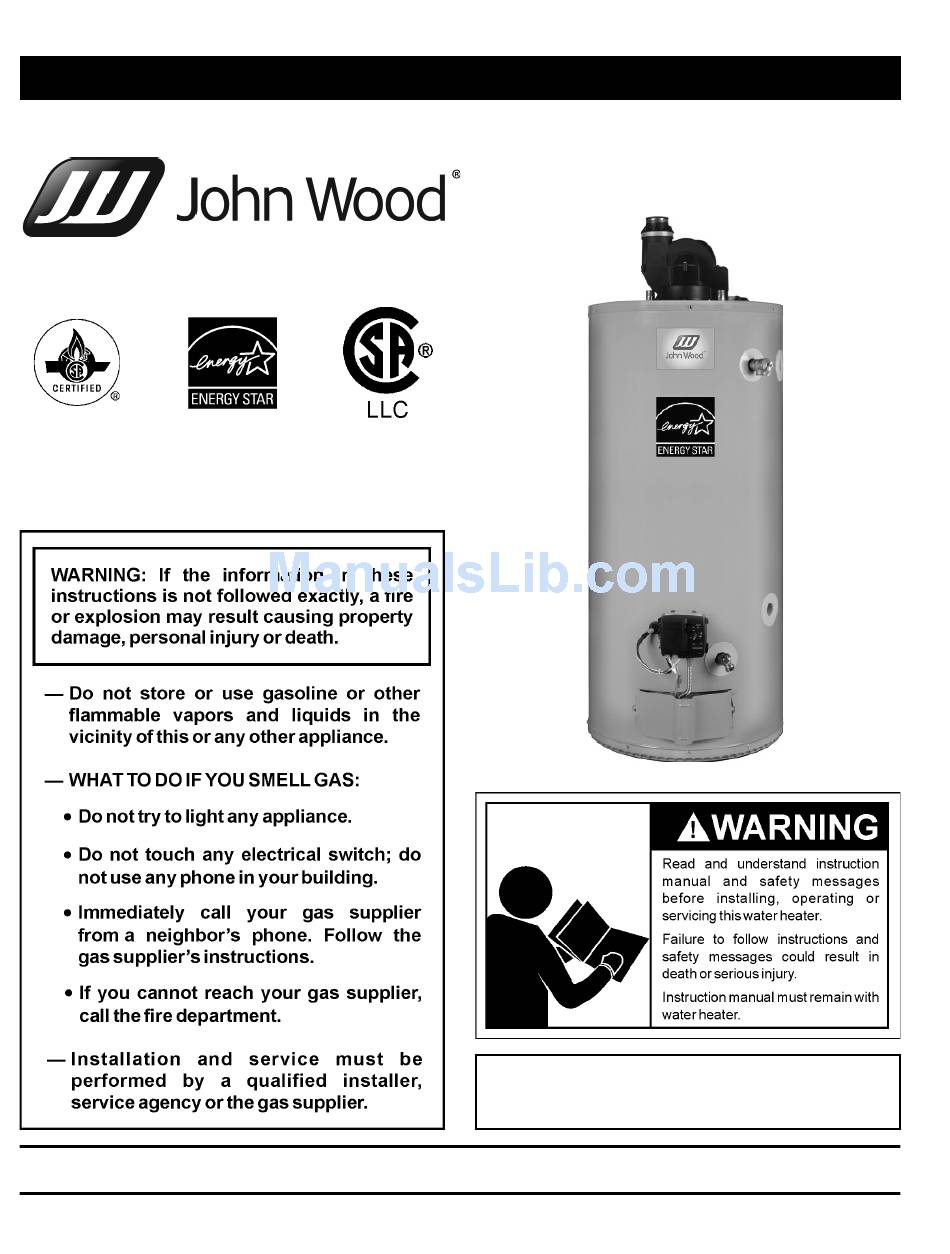

Installation and Operating Manual RESIDENTIAL GAS WATER HEATERS POWER DIRECT VENT GAS MODELS WITH HOT SURFACE IGNITION NOT FOR USE IN MANUFACTURED (MOBILE) HOMES • • For Your Safety AN ODOURANT IS ADDED TO THE GAS USED BY THIS WATER HEATER. -
