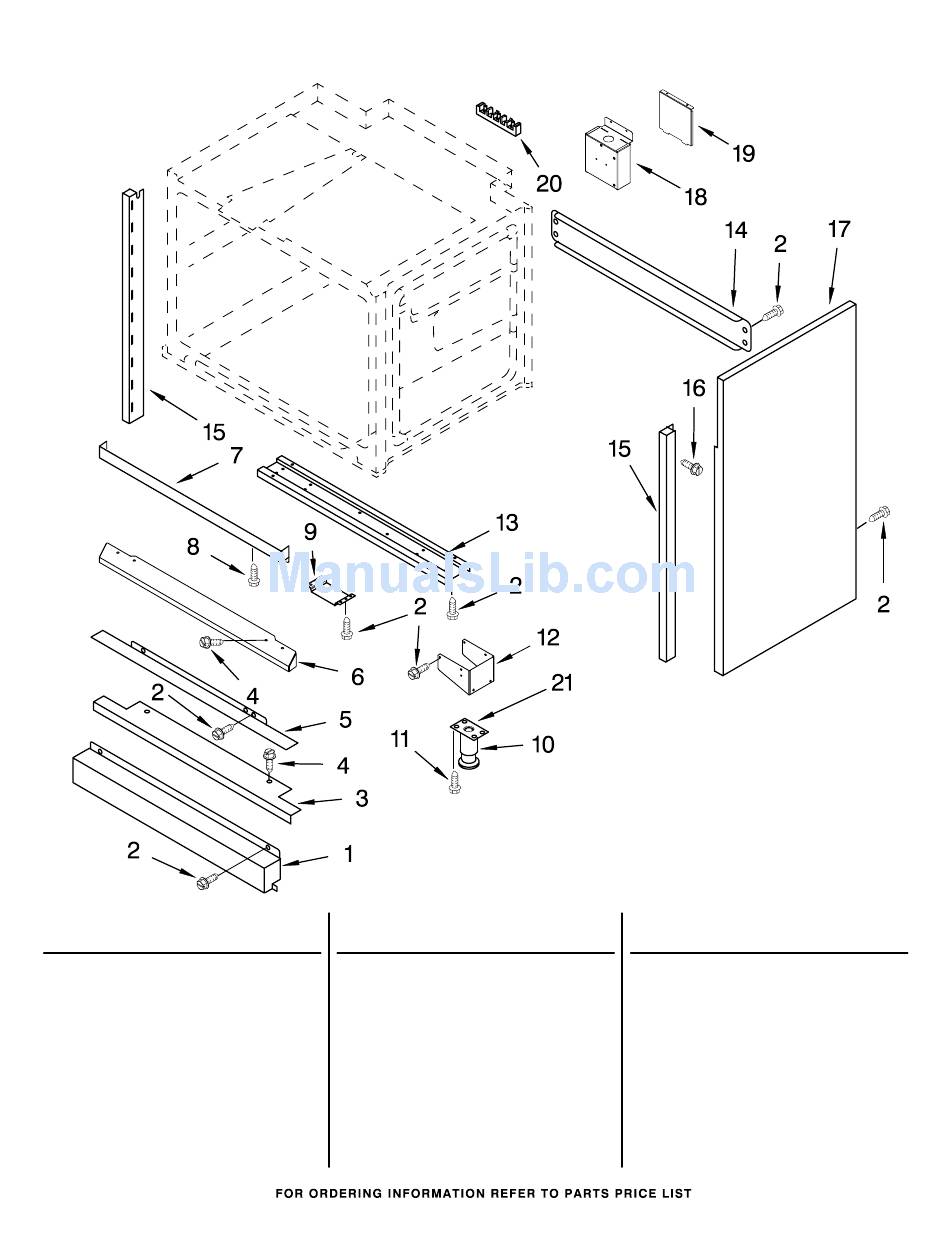

Chassis Parts - KitchenAid KDRP407HSS12 Parts List

Illus. Part
No. No. DESCRIPTION
1 4452802 Vent, Bottom
Lower
2 4449809 Screw, 8−18 x 3/8
3 4452798 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 4452800 Deflector, Center
6 4452420 Vent, Bottom Upper
7 4452425 Vent, Center
4453323 Gasket
3400805 Screw (4)
8 3196537 Screw, 8−18 x 3/8
8186300

CHASSIS PARTS

For Model: KDRP407HSS12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
9 9759092 Bracket, Mounting
Regulator
10 9759117 Foot
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
13 4455643 Support, Channel
3400080 Screw (8)
14 9760672 Brace, Rear
15 Trim, Front
4452804 Right Side
4453205 Left Side
9
Illus. Part
No. No. DESCRIPTION
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
4457251 Right Side
4457252 Left Side
18 9760476 Box, Terminal
19 9760482 Cover, Terminal
Box
20 9757403 Block, Terminal
21 9759118 Plate, Mounting
