Control Panel Parts - KitchenAid KDRP407HSS12 Parts List

Illus. Part
No. No. DESCRIPTION
1 4457268 Panel, Control
2 4453000 Bracket, Display
3 8300805 Bracket, Display
Mounting
4 3196537 Screw, 8−18 x 3/8
5 4452443 Control, Zodiac
6 4449746 Screw, 6−19 x 1
8186300

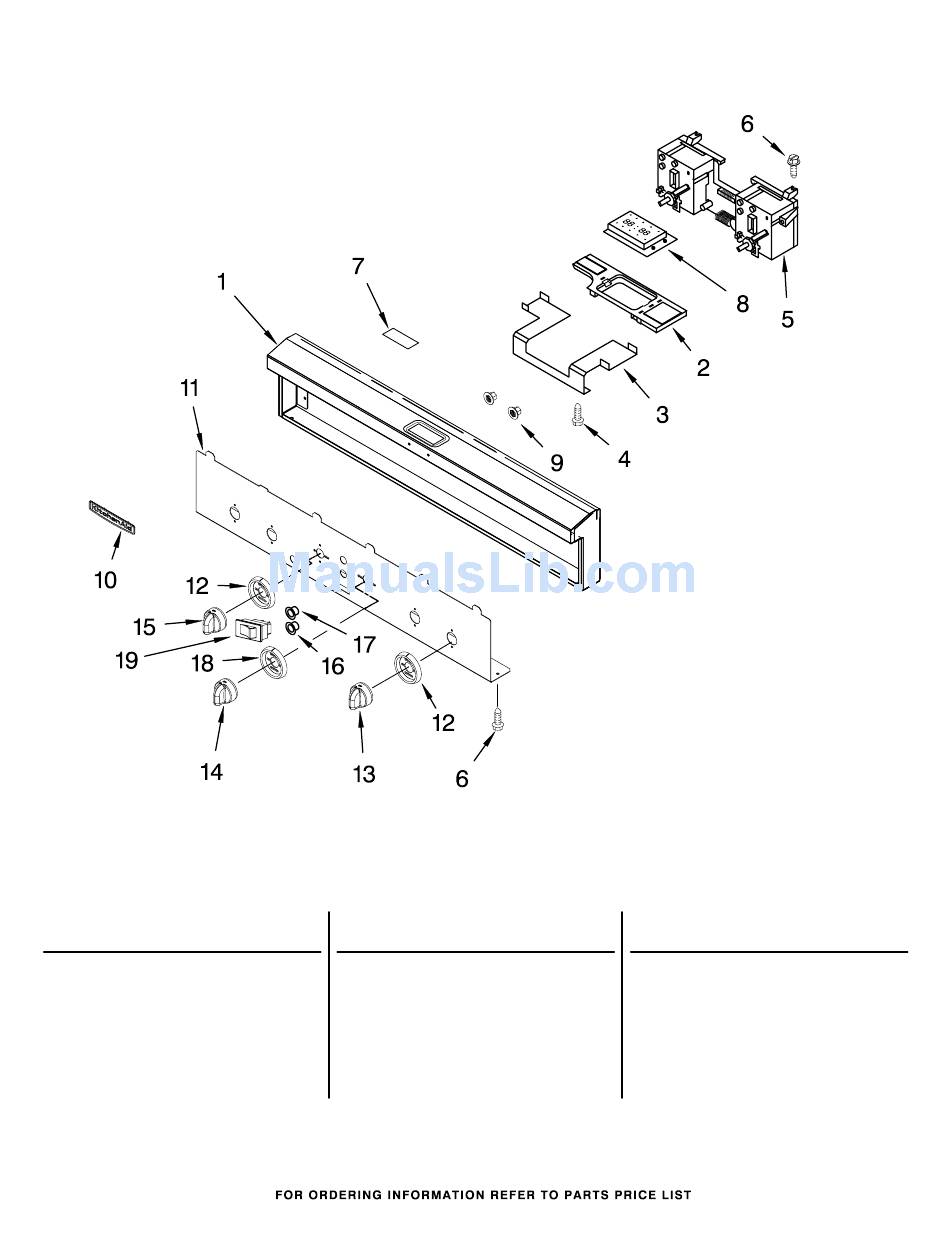

CONTROL PANEL PARTS

For Model: KDRP407HSS12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
7 4455806 Glass,
Control Panel
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 4457269 Face, Control
Panel
12 4455192 Bezel, Knob
5
Illus. Part
No. No. DESCRIPTION
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
4457278 Wire, Jumper
17 4452997 Button, Enter
18 4457152 Bezel, T−Stat
19 4452842 Switch, Rocker
