Cal-Royal CR6000 SERIES Installation Instructions Manual

Digital touch screen door lock

Advertisement

CR6000 SERIES
DIGITAL TOUCH SCREEN DOOR LOCK

Advertisement

Table of Contents
loading

Summary of Contents for Cal-Royal CR6000 SERIES

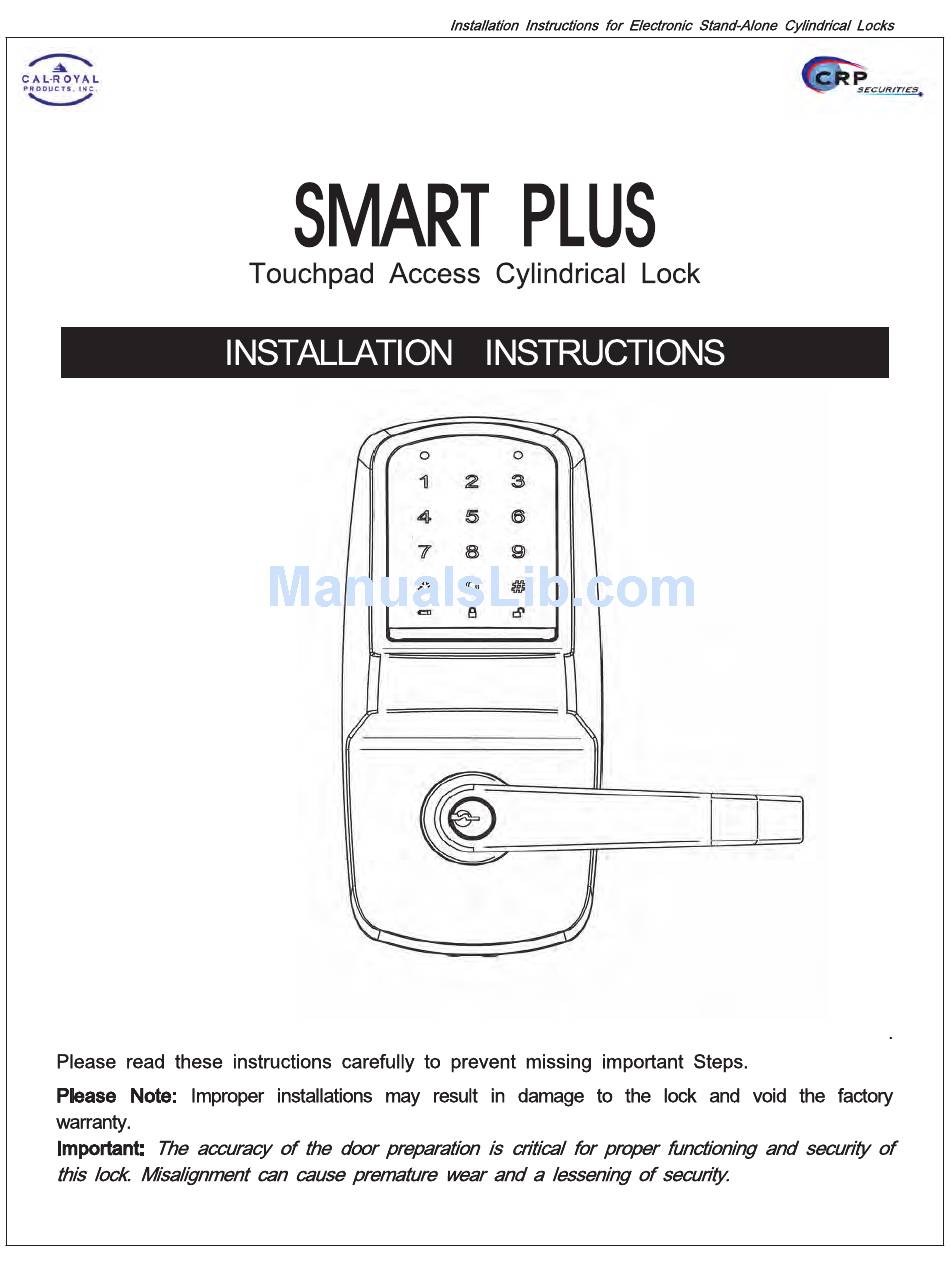

  • Page 1 CR6000 SERIES DIGITAL TOUCH SCREEN DOOR LOCK...
  • Page 2: Table Of Contents

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks TABLE OF CONTENTS Warnings ····················································································································································· 2 Introduction ················································································································································· 2 Specifications ············································································································································· 3 Parts Breakdown ·································································································································· 3~4 Tools for Installation ································································································································ 4 Installation Instructions Verify Hand and Bevel of Door ······································································································ 5 Door & Frame Preparation ··········································································································· 5~6 Prepare Lock for Installation ········································································································...
  • Page 3: Specifications

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks SPECIFICATIONS Latch brass - 1/2"(13mm) throw Inside lever retracts latch standard Locks furnished for 1-3/8"(35mm) to Deadlocking latch 2"(51mm) doors. Outside lever controlled by touchpad, U.L. Listed or key retracts latch PARTS BREAKDOWN Confirming the Box Contents The following items should be included in the box: DOCUMENTS INCLUDED IN BOX:...
  • Page 4: Tools For Installation

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks PARTS BREAKDOWN (Continued) ITEM DESCRIPTION QTY. Latch (2-3/4"(70mm) Backset (Standard)) Outside Assembly Inside Escutcheon Inside Lever Spacer Bushing Battery Cover Mounting Plate Assembly Outside Lever Key (Provided with Cylinder) Cylinder Cylinder Retainer Lock Body Strike Screw Pack (2) 12-24×3/4"(19mm) FL HD Combination Screws for Strike...
  • Page 5: Installation Instructions

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks INSTALLATION INSTRUCTIONS Step #1 Verify Hand and Bevel of Door Stand on outside/locked side of the door when determining the door hand. Note: This lock is non-handed and the lever can be flipped around to the desirable hand. Left Hand Left Hand Right Hand...
  • Page 6 Installation Instructions for Electronic Stand-Alone Cylindrical Locks Position Template and Mark Drill Points sure to verify backset before marking and drilling door. 1. Fold and Place template on high edge of door at the horizontal centerline. 2. Mark centers of holes at proper backset. For beveled and square edge doors, mark both sides of the door.
  • Page 7: Prepare Lock For Installation

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks Step #3 Prepare Lock for Installation A. Unpack the Lock The lock is packed in such a way to represent how it will install on the door. Before installation: 1. Disassemble the inside escutcheon. 1) Remove the inside lever and spacer bushing with the lever removal tool provided.
  • Page 8 Installation Instructions for Electronic Stand-Alone Cylindrical Locks Adjustment for different door thickness: 1. Remove outside lever, spacer bushing and outside assembly (See C below). 2. Rotate outside mounting rose plate for proper door thickness as shown below. 3. Position of bent taps as shown below must match (ensure the bent taps are horizontally crossed).
  • Page 9: Lock Installation

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks Step #4 Lock Installation Outside Assembly Inside Assembly - 9 -...
  • Page 10 Installation Instructions for Electronic Stand-Alone Cylindrical Locks PROCEDURES 1. Install latch in door. Be sure that bevel edge of bolt faces strike. Attach with two screws supplied. 2. Install strike on the door frame. 3. Insert outside assembly through door, making sure that the lock body frame hooks latch case and retractor engages bolt tail(s).
  • Page 11: Test Lock Operation

    Installation Instructions for Electronic Stand-Alone Cylindrical Locks Step #5 Test Lock Operation If you encounter problems while performing any of the following tests, review the installation instructions and this guide and correct any problems. CAUTION : DOOR MUST REMAIN OPEN DURING INSTALLATION. USE DOOR STOP. Mechanical Test A.

This manual is also suitable for:

Smart plus cr6000 series
