Cal-Royal PL7100 User Manual

Smart
Hide thumbs
Table of Contents

Advertisement

Quick Links

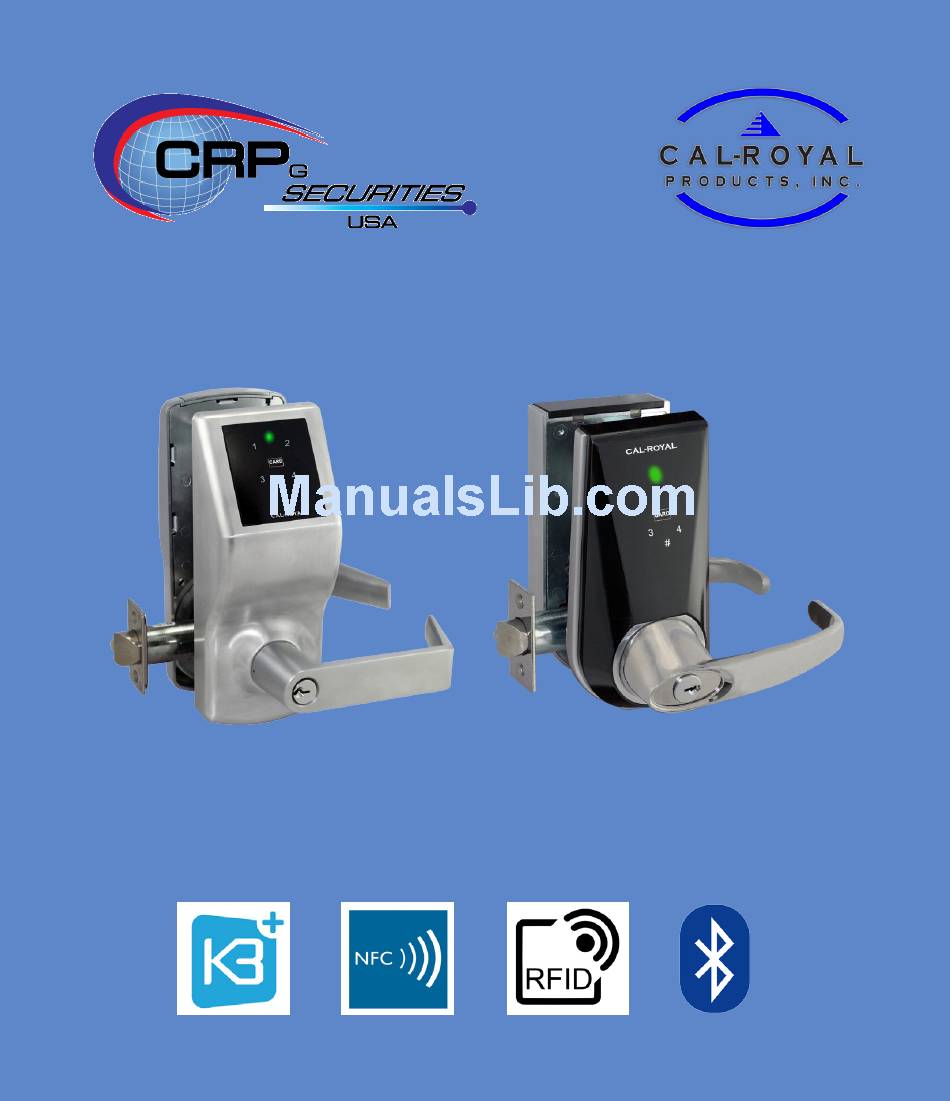

cover page
USER MANUAL
PL7100
RS2100

Advertisement

Table of Contents
loading

Related Manuals for Cal-Royal PL7100

Summary of Contents for Cal-Royal PL7100

  • Page 1 USER MANUAL PL7100 RS2100...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Parts List - Exterior Technical Specifications Parts List - Interior Troubleshooting Compatible cards and phones Disclaimer Phone Operations Bluetooth Unlocking Touchpad Operations Programming Codes using Touchpad VARICODE Unlocking Lock-out Events, Beeps and LED REGULATORY COMPLIANCE The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Parts List - Exterior

    PARTS LIST - EXTERIOR PL7100 STATUS LED SENSOR AREA TOUCHPAD KEYWAY RS2100 STATUS LED SENSOR AREA TOUCHPAD KEYWAY PL7100 / RS2100...

  • Page 4: Parts List - Interior

    PARTS LIST - INTERIOR PL7100 RS2100 SETUP SETUP BUTTON BUTTON Introduction PL7100 and RS2100 are smart locks with Bluetooth LE, NFC, MiFARE RFID, and Touchpad capabilities. PL7100 / RS2100...

  • Page 5: Compatible Cards And Phones

    Locks. Management tasks can be performed in the App. An Admin can manage multiple Locks, but a Lock can only have one Admin at a time. A phone can be an Admin of a lock(s) and client of other lock(s) at the same time. PL7100 / RS2100...

  • Page 6: Phone Operations

    In the K3 Connect app, press the “+” on the top-right corner of the Locks page. b. Fill-in the DIN (pl7100 or rs2100 respectively) and your selected Lock name, then confirm and put the phone close to the Lock (within 1 meter).
  • Page 7 • Add/Delete Clients (including other phones, cards, or CODEs) • Set Client access rights (such as limited duration or only one-time access or temporarily suspended) • Set Client Nick-names • Generate VARICODE • View Audit Trail • Check Lock Battery status • Update Lock Firmware PL7100 / RS2100...

  • Page 8: Touchpad Operations

    4. Enter the new MC again and followed by # 6.3 Programming Codes using the Touchpad Add Code (new CODE length is between 6 to 12 digits) CODE CODE Add RFID Card / Key Fob TAP CARD OR KEY FOB PL7100 / RS2100...
  • Page 9 Delete RFID Card / Key Fob TAP CARD OR KEY FOB Delete All Codes (exclude Master Code) Delete All RFID Cards / Key Fobs 7. Delete All Phones including Admin 8. Delete All Codes/Cards/Key Fobs/Phones including Admin PL7100 / RS2100...

  • Page 10: 6.5 Varicode Unlocking

    • If the batteries are too low, it will not unlock even after successful authentication using a registered RFID/Key Fob/Phone or correct CODE, and you will hear 3 beeps then 10 beeps as warning. **Both indicators will only stop once the batteries are replaced with new ones. PL7100 / RS2100...

  • Page 11: Lock-Out

    2 short and 1 long beeps Green flash 1x During Setup Mode Red light ON Pairing Success 4 beeps ascending tone Green flash 1x 1 long and 4 short beeps, Pairing Fail the long beep tone is higher Red flash 1x PL7100 / RS2100...
  • Page 12 1 long and 4 short beeps, Lock-out followed by another long beep Red long flash 1x During lock-out period Red flash 2x every 5 seconds (for 1 minute) After successful unlocking, before Green flash once per relocking second Relocking Red flash 1x PL7100 / RS2100...
  • Page 13 Admin 2. Operation of “Deleted All Phones” or “Delete All Codes/ Cards/Phones including Admin” are performed on keypad 3. Phone is reset-to-factory-default Lock is working but no audible Check if parameter setting is on sound Mute mode PL7100 / RS2100...
  • Page 14 2. If still not working, turn-off other functions of the Lock are still Bluetooth function on the phone working and turn-on again, then try again 3. If it’s still not working, reboot the phone and try again PL7100 / RS2100...
  • Page 15 DISCLAIMER: Cal-Royal Products does not claim that this lock can provide complete security by itself. This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property like any other locks. No lock can substitute for vigilance, awareness of your environment, and common sense.
  • Page 16 6605 Flotilla St., Commerce,CA 90040 Tel. (323) 888-6601 Fax. (323) 888-6699 Website: www.cal-royal.com E-mail: sales@cal-royal.com...

This manual is also suitable for:

Rs2100
