GX660 Handheld VHF Radio
GX660 MARINE HANDHELD RADIO
I N s t r u c t I o N
m a N u a l
w w w . g m e . n e t . a u

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-COM GX660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GME G-COM GX660

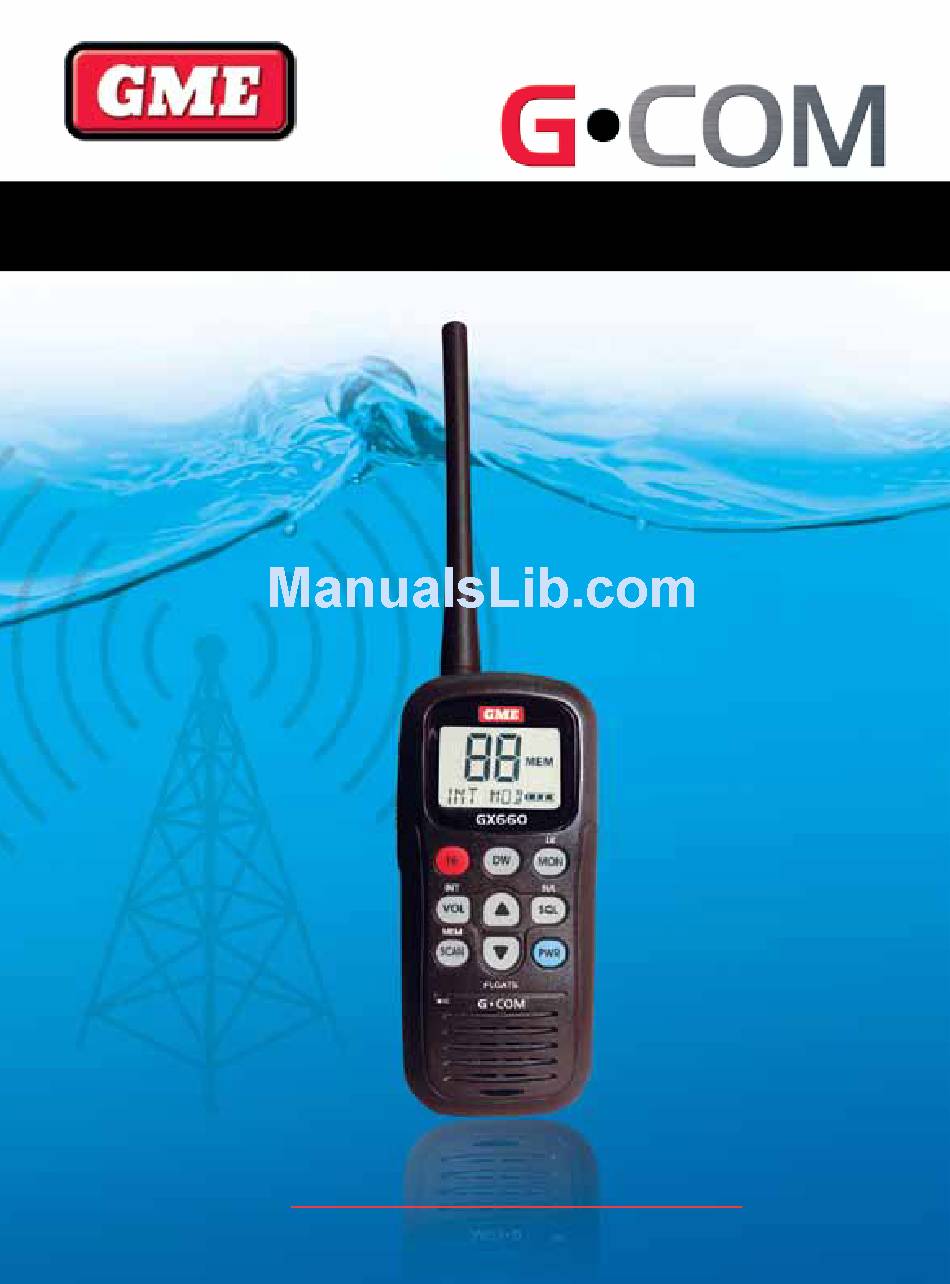

  • Page 1 GX660 Handheld VHF Radio GX660 MARINE HANDHELD RADIO I N s t r u c t I o N m a N u a l w w w . g m e . n e t . a u...
  • Page 2 This may damage your product. Please read through this manual before the first operation. If NEVEr: transmit with the antenna less than 5 cm from you have any questions, please contact GME service or your exposed parts of the body. local dealer.
  • Page 3: Table Of Contents

    CONTENTS OPERATOR QUALIFICATIONS ....4 POwER SETTING MODE ..... 10 LCD BACk-LIGHT .
  • Page 4: Operator Qualifications

    The user of this product is solely responsible for Li-Ion battery pack observing safe boating practices. 12V cigarette lighter adapter charger GME DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS Belt clip PRODUCT IN A wAY THAT MAY CAUSE ACCIDENTS, Detachable antenna DAMAGE OR THAT MAY VIOLATE THE LAw.
  • Page 5: Controls

    CONTROLS SCAN 1. Pwr (Power) key 11. Antenna 2. Channel 16 ‘emergency’ key 12. Belt Clip attachment 3. SCAN/MEM (Scan/Memory) key 13. PTT (Push to Talk) key 4. Dw (Dual watch) key 14. MON/Lk (Monitor/Lock) key 5. Up key 15. Battery compartment 6.
  • Page 6: Lcd Display

    LCD DISPLaY
 Channel Display
 Displays country mode
 and other information. Low Power: <1w SCAN Channel SCAN enabled Channels in Scan memory Dual watch is enabled Indicates Duplex frequency
 TX active
 RX active
 key Lock button enabled Battery Level display icon
...
  • Page 7: Power On/Off

    POWER ON/OFF
 Press the PoWEr key for 2 seconds to switch the radio on. when on, press the PoWEr key for 1.5 seconds to switch the unit off. when the unit powers up, a power-on beep tone will be heard. ChaNNEL SELECTION Press the keys in RX or RX standby modes to change...
  • Page 8: Adjusting The Volume Level

    aDjUSTING ThE VOLUME LEVEL RECEIVING (RX) Press the Vol/INt key momentarily to select the volume level when receiving, the Busy icon is displayed. setting mode. while in this mode, press the keys to change the volume level. The volume level range is 00 ~ 16.
...
  • Page 9: Memory Mode

    2. If only one channel is stored in the scan memory, an error MEMORY MODE beep will sound and the radio will switch to that memory To store a channel into the Scan Memory, select the required channel. channel then press the scaN/mEm for 2 seconds. The MEM icon is displayed on that channel.
  • Page 10: Channel 16 Mode

    to use the Dual Watch function ChaNNEL 16 MODE Select your preferred working channel by pressing the Press the 16 key to toggle between Channel 16 and your keys, then press the DW key briefly. The Dw icon appears. previously selected channel. Channel 16 will be checked every 2 seconds.
  • Page 11: Adjusting The Squelch Level

    aDjUSTING ThE SQUELCh LEVEL RaDIO DEFaULT SETTINGS Briefly press the sQl/Hl key. The Squelch level setting appears. To restore the radio to its default settings, first turn the radio Press the keys to change the Squelch level. off, then press and hold the DW key while turning the radio on again.
  • Page 12: Frequency Charts

    INT FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 160.6500 156.0500 160.6250 156.0250 160.7000 156.1000 160.6750 156.0750 160.7500 156.1500 160.7250 156.1250 160.8000 156.2000 160.7750 156.1750 160.8500 156.2500 160.8250 156.2250 156.3000 156.3000 160.8750 156.2750...
  • Page 13 USa FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 156.050 156.050 156.075 156.075 156.150 156.150 156.175 156.175 156.250 156.250 156.225 156.225 156.300 156.300 156.275 156.275 156.350 156.350 156.325 156.325 156.400 156.400 156.375 156.375...
  • Page 14 CaNaDa FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 160.650 156.050 157.400 162.000 160.700 156.100 156.025 160.625 160.750 156.150 156.075 156.075 156.200 156.200 156.125 156.125 156.250 156.250 156.225 156.225 156.300 156.300 156.275 156.275...
  • Page 15 UK & INT FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 160.6500 156.0500 160.7250 156.1250 160.7000 156.1000 160.7750 156.1750 160.7500 156.1500 160.8250 156.2250 160.8000 156.2000 160.8750 156.2750 160.8500 156.2500 160.9250 156.3250 156.3000 156.3000...
  • Page 16 SCaNDINaVIa & INT FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 160.6500 156.0500 160.8250 156.2250 160.7000 156.1000 160.8750 156.2750 160.7500 156.1500 160.9250 156.3250 160.8000 156.2000 156.3750 156.3750 160.8500 156.2500 156.4250 156.4250 156.3000 156.3000...
  • Page 17 hUNGaRY & INT FREQUENCY ChaRT ch No. rx Frequency (mHz) tx Frequency (mHz) ch No. rx Frequency (mHz) tx Frequency (mHz) 160.6500 156.0500 160.7250 156.1250 160.7000 156.1000 160.7750 156.1750 160.7500 156.1500 160.8250 156.2250 160.8000 156.2000 160.8750 156.2750 160.8500 156.2500 160.9250 156.3250 156.3000 156.3000...
  • Page 18: Specifications

    aTTENTION SPECIFICaTIONS General The battery for your GX660 has been factory installed. Caution should be exercised opening the battery compartment as the Channel Spacing: 25kHz water tight integrity of the radio could be compromised if not Supply Voltage: 7.4V DC 1400mAh Li-Ion rechargeable properly assembled.
  • Page 19: Warranty

    GME aFTER SaLES SERVICE 2.2 we warrant our goods to be free from defects in Your GME GX660 is especially designed for the environment materials and workmanship for two years from the date encountered in portable or marine applications. The use of all of original sale (or another period we agree to in writing).
  • Page 20 Fax: (08) 9455 3110 Fax: (07) 3278 6555 Fax: (02) 9816 4722 Fax: (09) 274 0959 For customers outside Australia and New Zealand please contact your local GME distributor or email: export@gme.net.au www.gme.net.au Part No. 310505 Drawing. No.: 45243-2 INSTRUCTION MANUAL...
