  • Page 1 INNOVATIVE ELECTRONICS GR200 AM/FM/VHF MARINE BROADCAST RADIO I N S T R U C T I O N M A N U A L...

  • Page 2: Table Of Contents

    CONTENTS FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ACCESSORIES .

  • Page 3: Features

    In-dash flush mounting kits – MK100W (white), MK100B (black), MK002W, MK002B . Rear flush mount kit – MK600 Choose from a range of GME antennas Choose from a range of GME speakers Cabin cover – CVR001W (white), CVR001B (black) .

  • Page 4: Compliance

    COMPLIANCE This device complies with AS/NZS 61000 .6 .3:2007 This device complies with part 15 of the FCC rules . Operation is subject to the condition that this device does not cause harmful interference . LISTENING TO FM IN YOUR BOAT The majority of FM broadcasts are music programs .

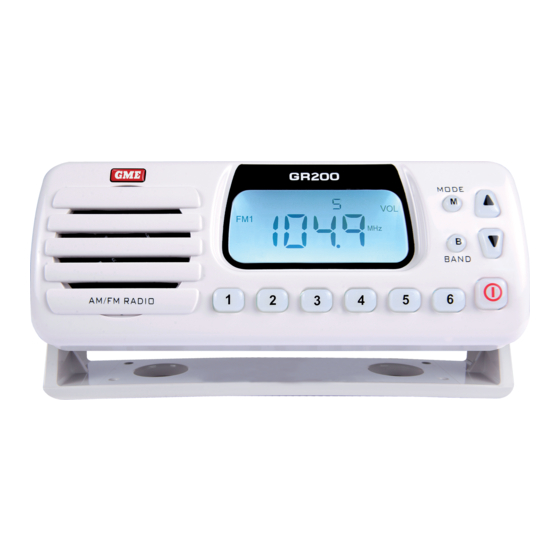

  • Page 5: Controls

    CONTROLS LCD Display Mode Key Band Key Up Key Down Key Speaker Memory Keys Power/Mute Key POWER KEY Press and hold the Power key to turn the GR200 ON or OFF . While the radio is ON briefly press the Power key to toggle the audio mute function .

  • Page 6: Up/Down Keys

    UP/DOWN KEYS The Up and Down keys are used to adjust functions selected using the Mode key . MEMORY KEYS Six memory keys are provided for storage and retrieval of station memories . OPERATION TURNING THE GR200 ON AND OFF To switch the GR200 on, press and hold the key for two seconds .
  • Page 7 Adjusting the Treble To select the treble mode, briefly press the Mode key repeatedly until ‘TRE’ is displayed on the right of the LCD . To adjust the treble, press the key . Pressing the will increase the treble while pressing the key will decrease the treble .

  • Page 8: Tuning For Stations

    TUNING FOR STATIONS Selecting the Frequency Band The GR200 has 7 selectable frequency bands plus an Auxiliary audio input . The frequency bands available are Long Wave (LW), Short Wave (SW), Medium Wave (AM1 and AM2), FM (FM1 and FM2) and VHF Marine (VHF) . The Auxiliary input mode allows audio from external sources such as MP3 players to be connected via a 3 .5 mm socket lead on the rear panel .

  • Page 9: Memory Keys

    MEMORY KEYS The GR200 has 6 preset memory keys which allow up to 6 frequencies to be stored and recalled within each band . Because there are two identical AM bands and two identical FM bands, this allows 12 AM and 12 FM preset memories . The memories can be stored either manually or automatically .

  • Page 10: Local/Dx Mode

    LOCAL/DX MODE The Local/DX mode controls the receiver’s sensitivity when in the FM mode . The GR200 can be set to high sensitivity for long distance reception (DX) or low sensitivity for local reception (LOC) . Briefly press the Mode key repeatedly until AMS is selected then press ONCE more to access the LOC function .

  • Page 11: Mounting The Gr200

    . The GR200 is designed to meet IP55 Standard ) . A location should be selected which provides the best Refer: www .gme .net .au/IPRatings viewing angle for the display . For best results select a location that is free from excessive vibration and continuous direct sunlight .

  • Page 12: Electrical Wiring

    ELECTRICAL WIRING The GR200 is suitable for either negative or positive ground systems . Note: The GR200 has an over voltage detector to indicate when excessive voltage is being applied to the radio . The over voltage detector is triggered when the voltage being applied to the power leads exceeds 18 Volts DC .
  • Page 13 Auxiliary Input lead mounted on the rear panel . To select the AUX input, press the Band key repeatedly until ‘AUX’ ‘In’ is displayed . A 3 .5 mm to 3 .5 mm accessory lead (LE74) is available separately from your GME dealer . Antenna Connection The antenna should be mounted in a position as high as practical to ensure good reception especially in areas of low signal strength .

  • Page 14: Specifications

    SPECIFICATIONS* GENERAL Complies with: AS/NZS 61000 .6 .3:2007 Frequency Range: LW, MW, SW, VHF, AM and FM Channel Set: Broadcast Radio Bands and VHF Marine Band Scan Speed: 100 ms/channel Supply Voltage Range: 10 .8 – 15 .6 V DC negative earth Current Protection: 6 Amp 3AG fuse Reverse Polarity &...

  • Page 15: Standard Communications Contract Warranty

    ENVIRONMENTAL Ingress Protection Rating: IP55 - Refer: www .gme .net .au/IPRatings Temperature Range: -10°C to +60°C Solar Radiation: Case UV stabilised Compass Safe Distance: 200 mm EXTERNAL CONNECTIONS DC Supply: 2 Pin polarised plug socket External Speakers: 3 .5 mm mini phone jacks Auxiliary input: 3 .5 mm stereo phone jack *All specifications are typical and subject to change without notice or obligation.
  • Page 16 SYDNEY, Unit B, 22-24 College St, GLADESVILLE 2111 . T: (02) 9879 8888 F: (02) 9816 4722 AUCKLAND, 2/24 Bishop Dunn Pl, East Tamaki, MANUKAU 2163 NZ . T: (09) 274 0955 F: (09) 274 0959 For customers outside Australia and New Zealand please contact your local GME retailer or email:export@gme.net.au www.gme.net.au...
