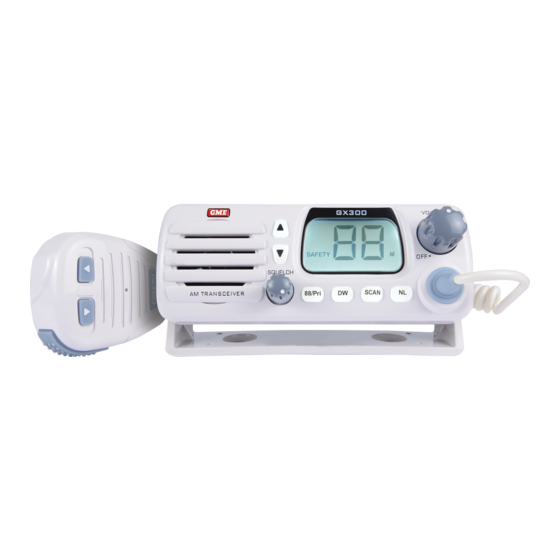

GX300
27 MHz MARINE
AND CB RADIO
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX300W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GME GX300W

  • Page 1 GX300 27 MHz MARINE AND CB RADIO I N S T R U C T I O N M A N U A L...
  • Page 2: Table Of Contents

    The GX300 is a radio transmitting device. equipment or in explosive atmospheres. • W hen transmitting, keep the antenna more • D o not allow children to operate a radio than 25 mm from any part of the head or body. transmitter unsupervised. INTRODUCTION Congratulations. You have just purchased one of the most With its compact size and waterproof design it can easily be technically advanced 27 Mhz radios in the world. installed into almost any mounting location in your motor vehicle, motor cycle or boat. The gME gX300 is a 27 Mhz AM radio that combines both Marine and Citizens band functions into the one radio. The please read this manual thoroughly to ensure you get the gX300 has a number of enhanced features including fully best from the gX300’s features. user programmable Channel Scanning, Channel 88 selection For users in New Zealand, South Africa or p.N.g. please refer (marine mode), priority channel (Cb mode) and backlit to amendment for local frequencies, channel allocations and liquid Crystal Display with dimming function. licensing requirements CONTeNTS Safety InformatIon ..... 2 Marine band procedures .
  • Page 3: Features

    27 Mhz marine band. When operating on the marine band the radio will display channels 68 – 98 and default to safety • Advanced Noise limiter (Nl) Circuitry Ch88 • Surface Mount Technology To select the 27 Mhz Cb band, turn the radio off, then press and hold the 88/pri key while turning the radio on again. The radio will now display channels 1 - 40 and default to • U ser Selection of Australian 27 Mhz Marine or 27 Mhz Cb Channels. road Ch8. Repeat the sequence above to return to the marine band. • provision for up to 10 private channels Note: Class licence 2001 prohibits the use of a Maritime (gME programmable Option only) Ship Station for land-based communications. When the Marine band is selected, the gX300 should only be used • Channel 88 Safety channel for marine application Ship-to-Ship, Ship-to-Shore or Shore-to-Ship. • priority channel for Cb application *Refer: www.gme.net.au/IpRatings/IpRatings.html CONTROLS FRONT PANeL (Dim) (bright) C hannel Channel lCD Volume Down...
  • Page 4: Operation - General Functions

    ReAR PANeL MICROPhONe Channel Down Channel Up pTT Switch Ch88 / priority Channel Antenna Socket DC lead External Speaker Socket DISPLAY Transmit Indicator Channel Number busy Indicator Channel in Safety Channel Scan Memory Selected Noise limiter 88 Key Selected Selected priority Channel Dual Watch Scan Selected Selected Selected OPeRATION - GeNeRAL FUNCTIONS VOLUMe ON/OFF ChANNeL SeLeCTION Rotate the volume control clockwise past the ‘Click’ to turn Select the required channel by briefly pressing the or the gX300 on. Continue to advance the control clockwise keys. The selected channel is displayed on the lCD display.
  • Page 5: Noise Limiter

    microphone. Speak at a normal voice level. Your gX300 has To transmit on a busy channel: a build-in speech processor which automatically controls Wait for a break in the conversation, then press the PTT the level of your transmitted voice. It is not necessary to switch. The radio will exit the scan mode and stay on the raise your voice or shout into the microphone. channel allowing you to communicate with others on that channel. NOISe LIMITeR To resume scanning briefly press the SCAN key again. The NL key activates an extremely effective noise limiter Note: If the PPT is pressed while the radio is scanning, it circuit which helps to eliminate most electrical impulse will be ignored and a low beep will be heard when the PPT interference caused by engine ignition systems etc. This is released. allows clearer reception of weak signals even under noisy electrical conditions. To exit the Scan mode manually: When the NL key is selected, ‘Nl’ is displayed on the lCD. briefly press the SCAN key. ‘SCAN’ will disappear from the display. SCANNING Note: Excessive noise on a channel can cause the scanner The gX300 is fitted with a Scan function that allows a to pause on that channel even if there is no signal there. If group of user selected channels to be scanned for activity. this only happens on one channel, you may need to remove Your gX300 has a scan memory which remembers which that channel from the scan memory. If it happens on all channels you would like to scan. by default your gX300 is...
  • Page 6: Marine Band Procedures

    To use the Dual Watch feature, adjust the squelch control “PAN, PAN, PAN” so the radio is quiet, select your preferred working or club Use this call when an emergency situation exists but there channel then press the DW key. ‘DW’ will appear on the is no immediate danger. The call should be made in the display and the channel display will alternate between your same way as the MAYDAY call. If you hear no reply, repeat selected channel and channel 88. the call at regular intervals If a signal is received on your selected channel, the radio “SECURITE, SECURITE, SECURITE” will pause on that channel but will continue to switch to (Pronounced Say-cure-e-tay) channel 88 every 2 seconds and a brief interruption to the This call is used to warn shipping of dangers or hazards, e.g. signal will be noticed. Once the signal has gone, normal bad weather, container adrift etc. The call may be made to a Dual Watch switching will resume. local monitoring station or to all ships in the area. If a signal appears on channel 88 at any time, the radio will stop switching and will remain on channel 88 for as long as MARINe ChANNeL ASSIGNMeNTS the signal is present. Once the signal has gone, normal Dual Watch switching will resume. Channel Frequency Note: If you press the PTT switch while Dual Watch is 27.680 Mhz Commercial, ship-shore-ship selected, your gX300 will transmit on the selected channel. 27.720 Mhz professional Shipping If you wish to talk on channel 88, press the 88 key to cancel the Dual Watch and switch straight to channel 88.
  • Page 7: 27 Mhz Cb Channel Assignments

    Channel Up/Down keys then press the DW key. ‘DW’ will 27 Mhz ChANNeL ASSIGNMeNTS appear on the display and the channel display will alternate Channel Frequency Suggested Usage between your selected channel and the priority channel. 26.965 Mhz general AM If a signal is received on your selected channel, the radio 26.975 Mhz general AM will pause on that channel but will continue to switch to the priority channel every 2 seconds and a brief interruption 26.985 Mhz general AM to the signal will be noticed. Once the signal has gone, 27.005 Mhz general AM normal Dual Watch switching will resume. 27.015 Mhz general AM If a signal appears on the priority channel at any time, the 27.025 Mhz general AM radio will stop switching and will remain on the priority 27.035 Mhz general AM channel for as long as the signal is present. Once the signal 27.055 Mhz general AM (2) has gone, normal Dual Watch switching will resume. 27.065 Mhz Emergency (1) Note: If you press the PTT switch while Dual Watch is 27.075 Mhz general AM selected, your gX300 will transmit on the selected channel.
  • Page 8: Installation

    • The microphone and all controls should be readily accessible and the loud speaker easily heard from If required, an extension speaker may be installed to the normal steering or driving position. An extension improve sound levels in noisy environments or in locations speaker can be installed if required. further away from the steering or driving position. For • Components and currents in the radio create locations exposed to water we recommend the SpK45 magnetic fields. To avoid interference to compasses, which will fit the supplied adaptor that connects to the ships autopilot sensors etc, the gX300 should be extension speaker socket on the rear of the radio. mounted at least 300 mm from such devices. INSTALLING The UNIT After choosing a location, hold the unit with the mounting bracket attached, to the desired position and mark the location with a pencil. Remove the mounting bracket from the radio and drill the mounting holes. bolt or screw the bracket in place using hardware suitable for the mounting surface. The unit is supplied with stainless steel screws, however, if the mounting surface is unsuitable for screws *Refer: www.gme.net.au/IpRatings/IpRatings.html pAgE 8 IN ST RUCTI O N MA NUAl g X3 00...
  • Page 9: Antenna Installation

    27 Mhz antenna. A poor quality antenna or one not socket. (see diagram below) designed for the specific frequency band you are using will give very poor performance. Since the gX300 is capable of being switched between Screwdriver the 27 Mhz Marine and the 27 Mhz Cb bands, it is important to connect an antenna suitable for the band you have selected. because each band is in a different locking lever part of the frequency spectrum it isn’t possible to have a move to left to single antenna that will work well on both bands. You will Cable release plug therefore need to select a suitable antenna to suit the band you have selected. gME have a huge range of suitable 27 Mhz Cb and Cable entry hole 27 Mhz Marine antennas to suit most installations and applications. We recommend you contact your local Dealer for advice. Connect the antenna cable to the rear antenna socket using a pl259 coaxial connector. If required, replacement microphones are available with plug and rubber boot already fitted. Note: The antenna connector is not waterproof. NOISe SUPPReSSION 27 Mhz Marine and Cb radio can be prone to electrical and ignition interference. The reason is that electrical noise is a form of AM transmission similar to that used by your radio and your radio’s receiver is very sensitive. In most cases, ignition noise can be greatly reduced or eliminated by selecting the Noise Limiter (NL) key on the radio. In some severe cases, additional suppression may need to be fitted to the ignition system of your vessel or vehicle, in which case we recommend you consult an auto or marine Electrician for advice specific to your installation.
  • Page 10: Specifications

    Complies with: A S4367 and Dimensions: 65 (h) x 167 (D) x 55 (W) mm AS/NZS4355 (Australia only) Weight: 450 grams Frequency Range: 26.965 - 27.980 Mhz eNVIRONMeNTAL Channel Set: Australian 27 Mhz Marine A ustralian 27 Mhz Temperature Range: - 10°C to + 60°C Citizens band Ingress Protection Rating: IP55 Refer: www.gme.net.au/ Modulation: AM (A3E) IpRatings/IpRatings.html Supply Voltage: • 12.6 V DC nominal • 10.8 – 15.2 V DC range The gX300 will operate over the 26 - 30 Mhz frequency Frequency Error: < 50 ppm over range. For information specific to frequencies outside of temperature range the Australian Marine or Cb bands, please refer to the...
  • Page 11: Warranty

    STANDARD COMMUNICATIONS CONTRACT WARRANTY 1. STATUTORY WARRANTIeS are defective. We warrant replacement parts for the remainder of the period of warranty for the goods into 1.1 T he Trade practices Act part V, Division 2A and other which they are incorporated. legislation imply conditions, warranties and other 2.3 W e warrant our other repairs to be free from defects obligations on us to consumers that cannot be in materials and workmanship for three months from excluded, restricted or modified. Those provisions apply the date of the original repair. During this period and to the extent required by law. as our sole liability to you for the repair, we agree to 1.2 W e exclude all other conditions, warranties and repair or replace (at our option) repaired goods which obligations which would otherwise be implied we are satisfied are defective. concerning the activities covered by this agreement. 2.4 W e warrant that we will perform services with 1.3 W e limit our liability where we are allowed to do so. reasonable care and skill and agree to investigate any Examples of where we are allowed to limit liability are complaint made in good faith that we have performed...
  • Page 12 ADeLAIDe PeRTh bRISbANe SYDNeY AUCKLAND 7 Micro Circuit Unit 1 Unit 1 Unit 1 Unit b Unit F DANDENONg STh 3165 14 phillips Street 10-12 harvard Way 89-101 Factory Road 22-24 College Street 35 Neil park Tel: (03) 9798 0988 ThEbARTON 5031 CANNINg VAlE 6155 OXlEY 4075 glADESVIllE 2111 gREENMOUNT NZ Fax: (03) 9798 0177 Tel: (08) 8234 2633 Tel: (08) 9455 5744 Tel: (07) 3278 6444 Tel: (02) 9879 8888 Tel: (09) 274 0955 Fax: (08) 8234 5138 Fax: (08) 9455 3110 Fax: (07) 3278 6555 Fax: (02) 9816 4722 Fax: (09) 274 0959 For customers outside Australia and New Zealand please contact your local gME Distributor or email: export@gme.net.au www.gme.net.au part Number: 310344 Drawing Number: 42844-3 g X30 0...
